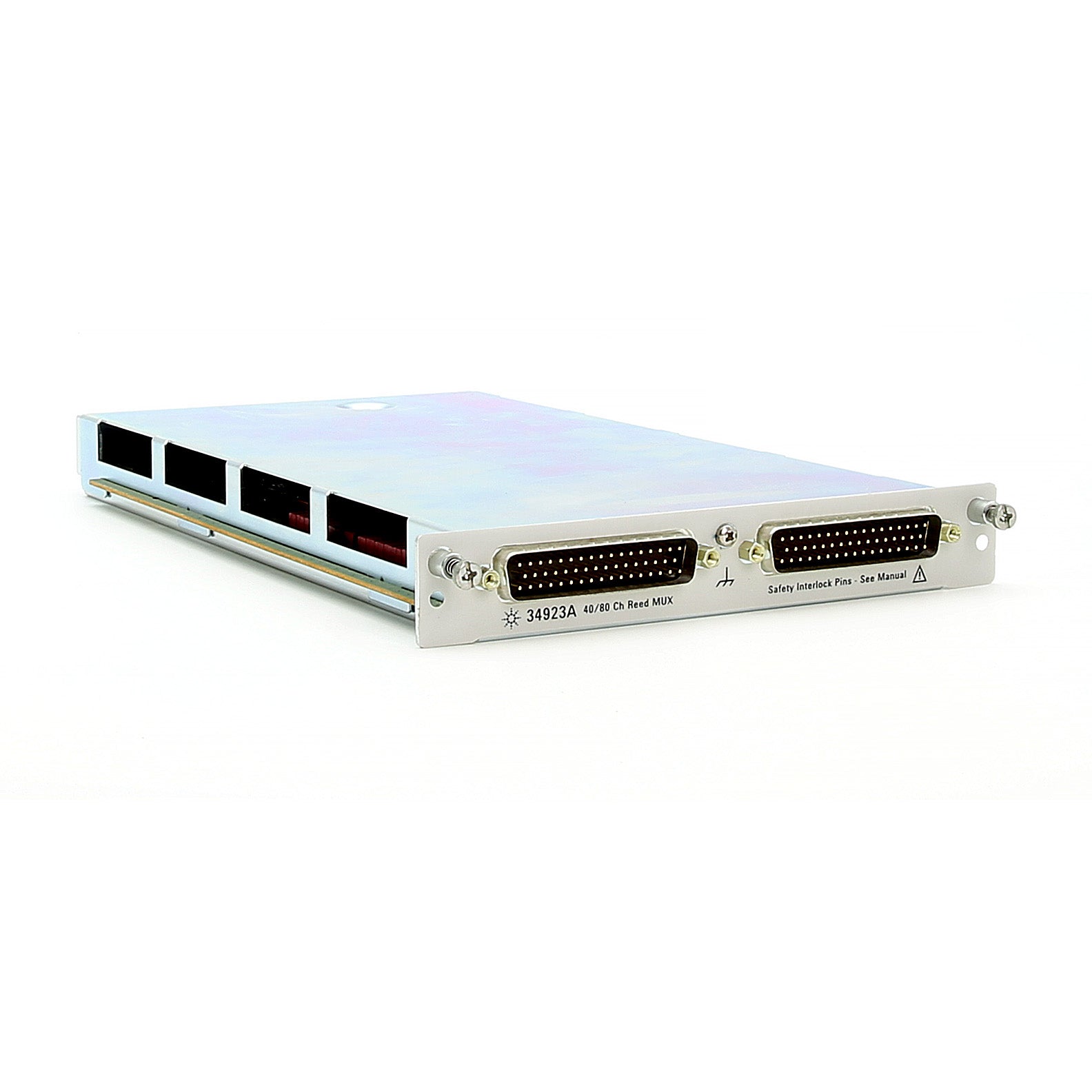

Keysight / Agilent 34923A 40/80 Channel Reed Multiplexer
The Agilent 34923A module for the 34980A Multifunction Switch/Measure Unit is a high speed-multiplexer for general purpose scanning. It uses reed relays to achieve scan rates up to 500 channels-per-second. Use this module for high-throughput automated test applications as well as high-speed data logging and monitoring tasks.
Current measurements can be accomplished with user supplied shunts. Standard 50-pin Dsub connectors allow for use with standard cables, terminal blocks, or mass interconnect solutions. 2- and 4-wire channels may be mixed on the same module, or configure as an 80 1-wire multiplexer.
The 34923T is a terminal block for the 34923A 40/80-channel reed multiplexer. This terminal block is used for discrete wiring. It supports up to 20 AWG wire size typical for <:100 connections or 24 AWG for >100 connections. The following two terminal blocks are available to facilitate wiring connections to the 34923A module:
- 34923T-001 (Option 001) Terminal Block for 2-wire configurations
- 34923T-002 (Option 002) Terminal Block for 1-wire configurations
The 34923T is a detachable terminal block with screw-type connections that provides a flexible method for connecting external wiring.
- 40 2-wire channels or 80 1-wire channels
- Mixed 2- or 4-wire configurations
- High-speed reed relays, with relay counter
- 500 ch/s scanning
- ±150V peak, 0.5A switch; 1.5A carry current
- Optional Accessories: 34923T-001 2 Wire Terminal Block; 34923T-002 1 Wire Terminal Block
Please see Datasheet for complete details and specifications.
