Description

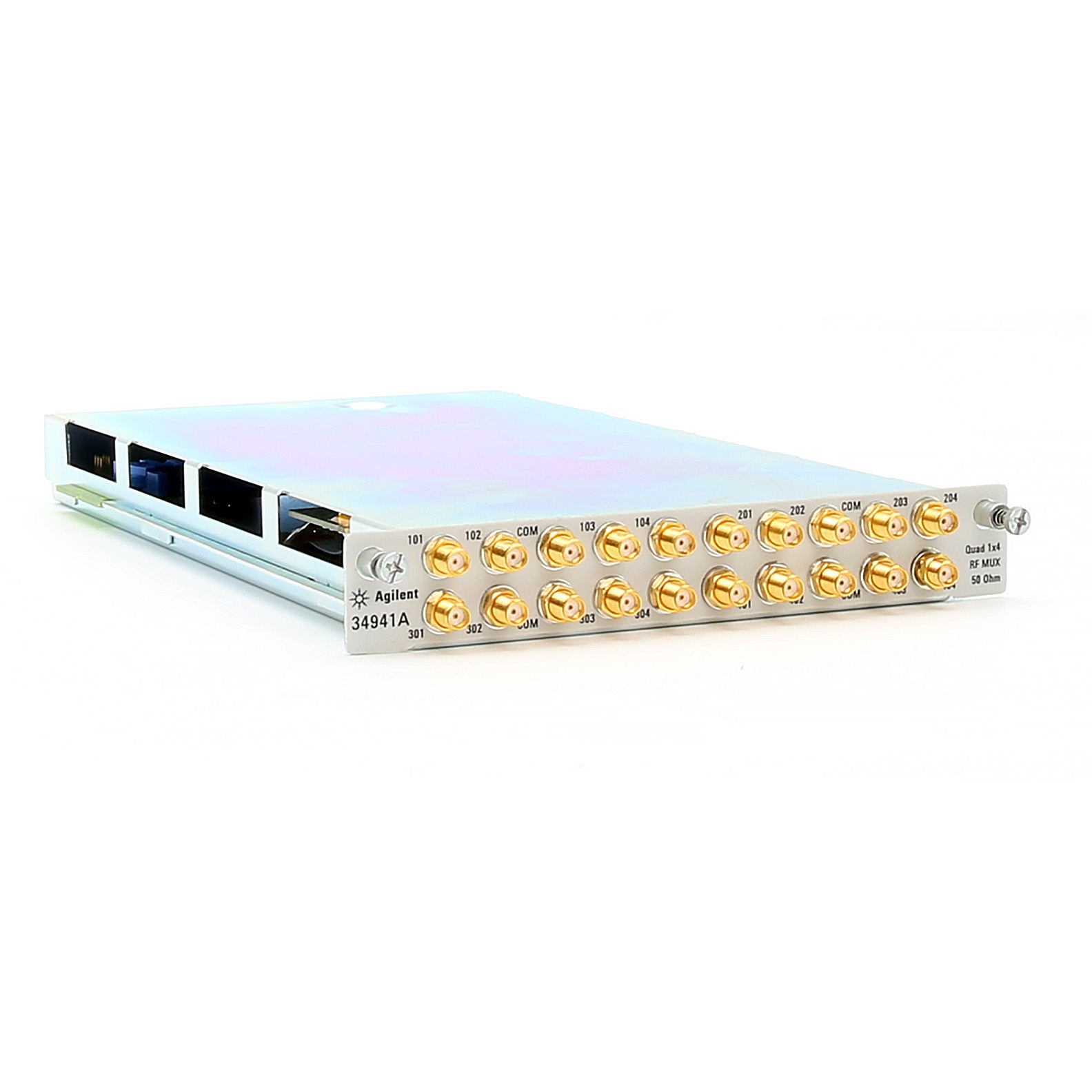

Keysight / Agilent 34941A Quad 1x4 50 Ohm 3 GHz Multiplexer
The Agilent 34941A RF multiplexer module for the 34980A Multifunction Switch/Measure Unit offers bi-directional switching for test signals from DC to 3 GHz. High channel isolation ensures quality dynamic range measurements with your oscilloscope, spectrum analyzer, or other instrumentation.
The RF multiplexers are configured as four independent 1x4 RF multiplexers on a single module. Individual multiplexers are isolated from each other and the Mainframe chassis to prevent ground loops. Multiple banks can be cascaded together to create an even large multiplexer - up to 97 cascaded RF channels in a single 34980A mainframe.
Features:
- Quad 4-channel multiplexers
- DC to 3 GHz, 50 Ohm
- High isolation, low VSWR
- 30 V, 0.5 A, 10 W switching
- SMA connectors
Please see Datasheet for complete details and specifications.
Datasheets / Specifications
34941APayment & Security
