Description

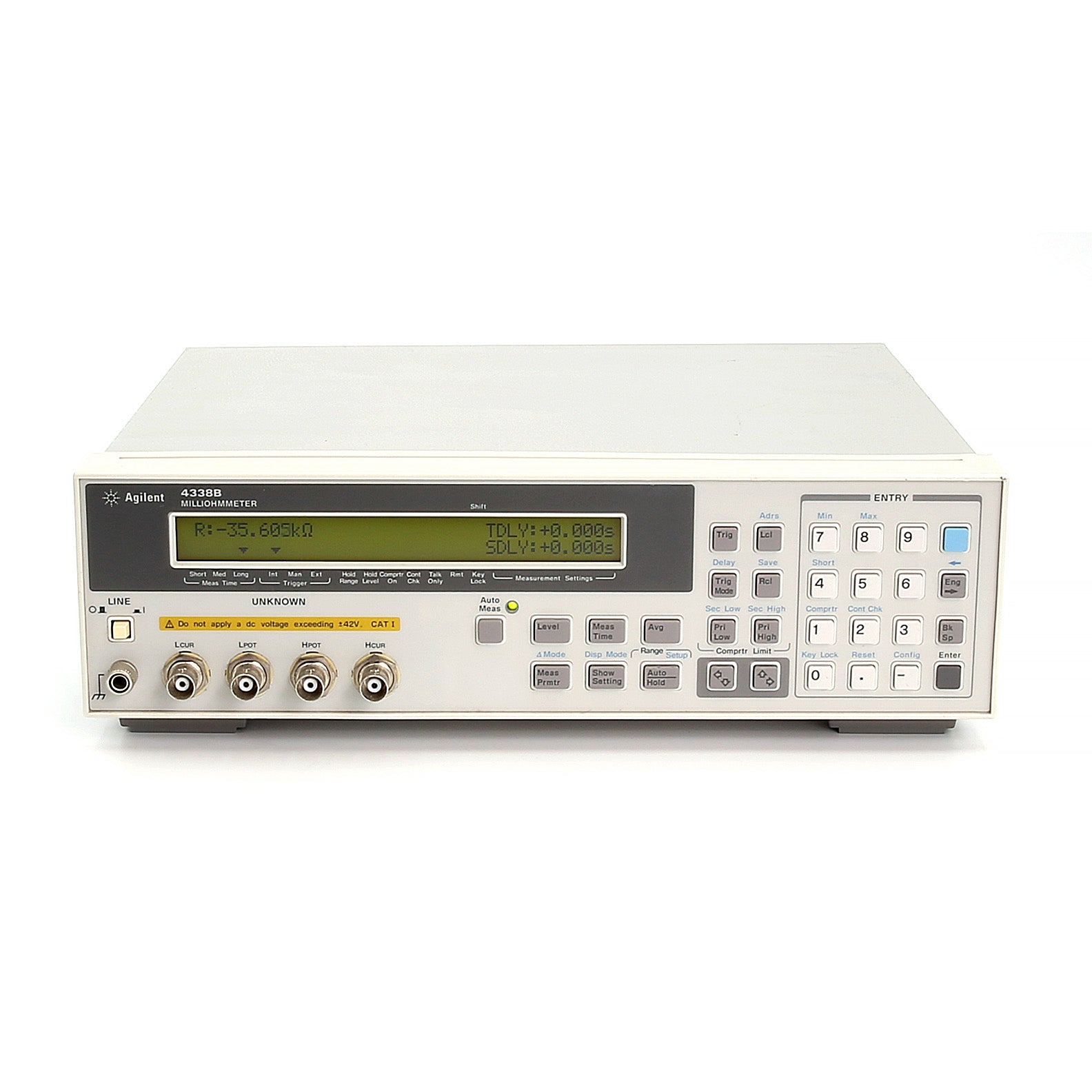

Keysight / Agilent 4338B Digital Milliohmmeter
The 4338B milliohmmeter is a precise, reliable, high-speed test tool for the measurements of low resistance.
Features:
- Auto and manual ranging
- Test frequency: 1 kHz
- Test Signal level: 1 µA, 10 µA, 100µA, 1 mA, 10 mA rms
- Maximum voltage across sample: 20 mV peak
- R range: 10 µohms to 100 kohms
- X, |Z| range: 10 µohms to 100 kohms
- L range: 10 nH to 10 H
- Phase range: -180° to +180°
- Parameters measured: R, L, X, |Z|, ∅, R-X, R-L, |Z|-∅
- GPIB and handler interfaces
- 90-132/198-264 Vac; 47-66 Hz operation
- Weight: 10 lb; Size: 100 mm (3.94 in)H x 320 mm (12.6 in)W x 300 mm (11.81 in)D
Please see Datasheet for complete details and specifications.
