Description

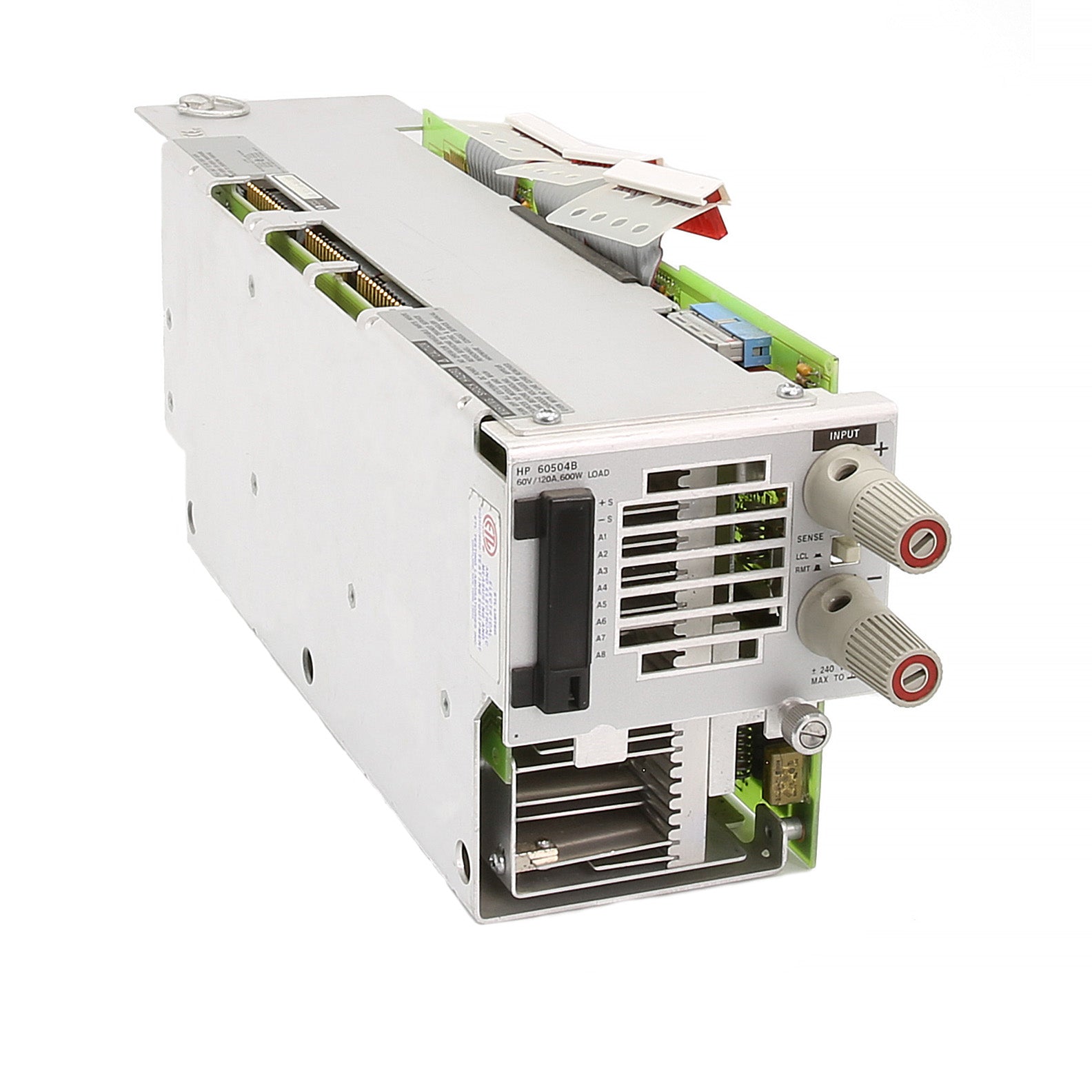

Keysight / Agilent 60504B Electronic Load Module 600 W
The 60504B module along with the 6050A or 6051A dc electronic load mainframe are ideal for the test and evaluation of dc power sources and power components and are well suited for applications in areas such as research and development, production, and incoming inspection. Each module includes programming inputs that allow control of load current via an analog control voltage.
Features:
- Wattage: 0 to 600 W
- Current: 0 to 120 A
- Voltage: 3 to 60 V
- Current ranges: 0 to 12 A, 0 to 120 A
- Resistance ranges: 0.017 to 0.5 ohms, 0.5 to 500 ohms, 5 to 5000 ohms
- Analog voltage control in constant current mode
- Full protection from over-current, over-voltage, overpower, over-temperature, and reverse polarity
- Weight: 13 lbs
Please see Datasheet for complete details and specifications.
Datasheets / Specifications
