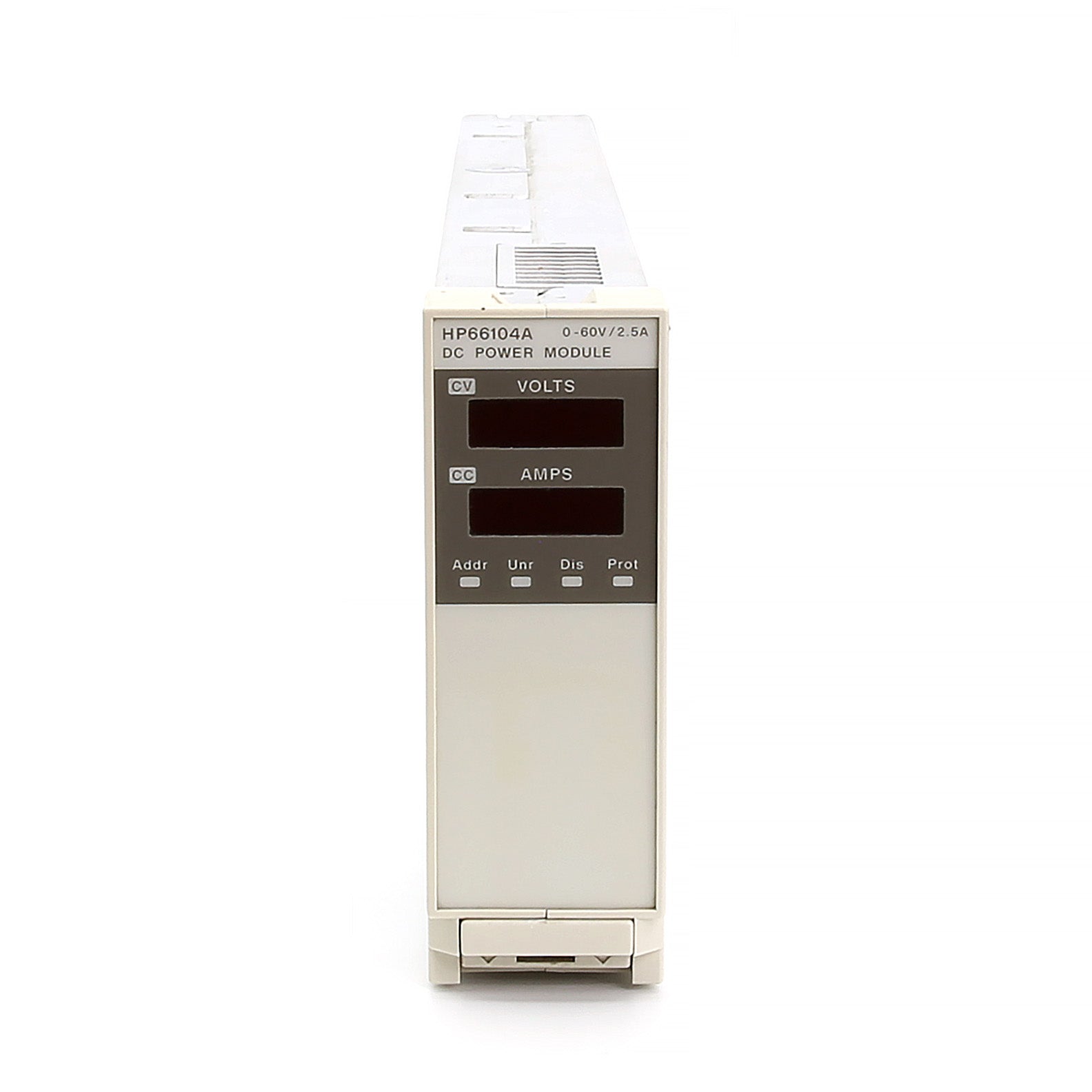

Keysight / Agilent 66104A DC Power Module, 0 to 60 Vdc, 0 to 2.5 A

Keysight / Agilent 66104A DC Power Module, 0 to 60 Vdc, 0 to 2.5 A

The 66104A is a 0 to 60 Volt, 0 to 2.5 Amp, 150W, GPIB, flexible modular supply designed for automated testing that helps meet changing requirements in ATE and production test with a modular design that conserves rack space and simplifies system cabling and assembly. The Agilent 66104A is for use with the 66000A Power System Mainframe.

Option 760 replaces the standard supplied Interconnect Module with the 5060-3387 Interconnect Module with Isolation/Polarity Relays.

Features:

• Output voltage: 0 to 60 V
• Output current: 0 to 2.5 A
• Maximum power: 150 W
• Programming accuracy at 25°C ±5°C: Voltage 0.03% + 27 mV; Current 0.03% + 1.2 mA
• Ripple & noise (20 Hz to 20 MHz): Voltage rms: 9 mV; Voltage Peak-to-Peak: 15 mV; Current rms: 1 mA

Please see Datasheet for complete details and specifications.
