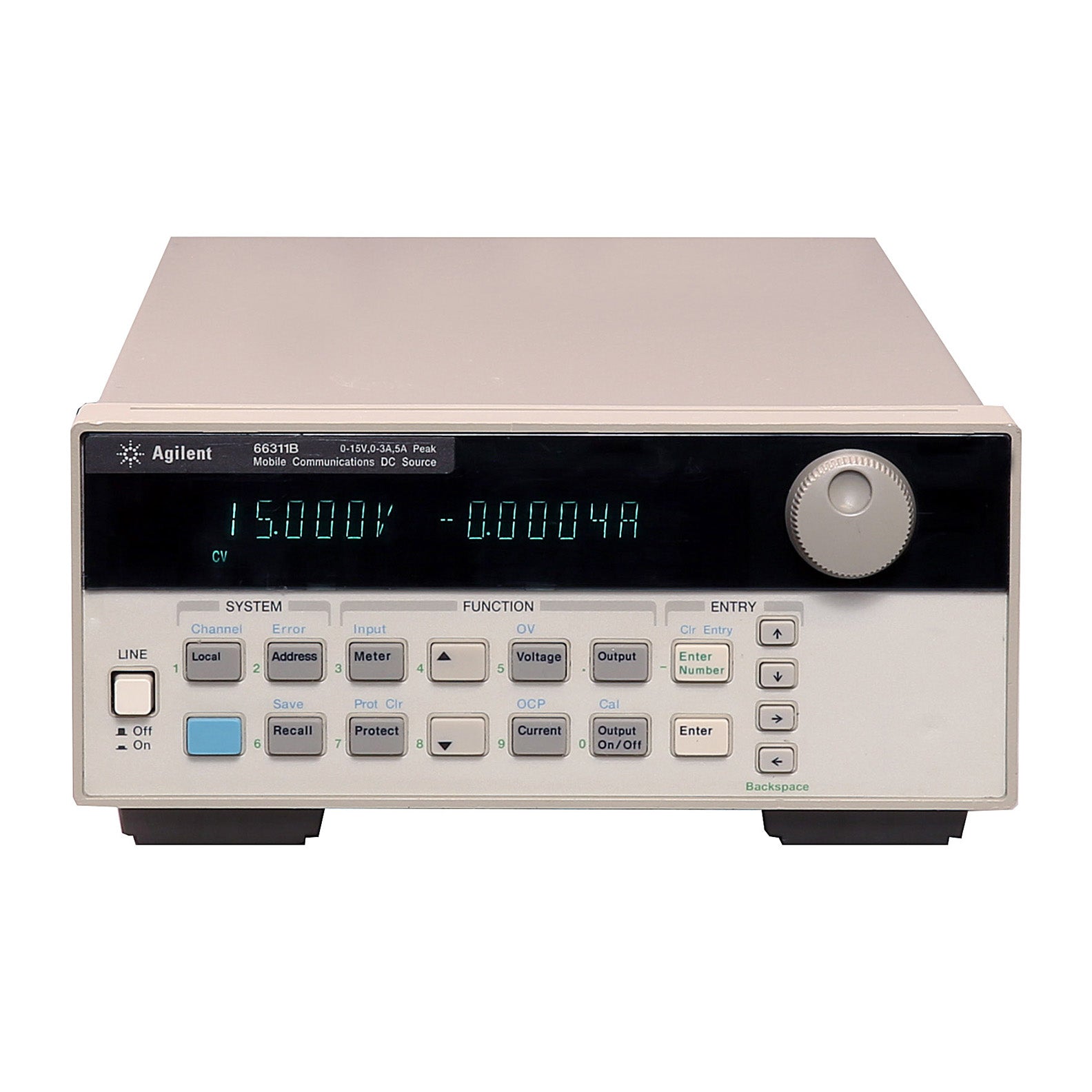

Keysight / Agilent Mobile 66311B Mobile Communications DC Source, 0 to 15 Vdc, 0 to 3 A

Keysight / Agilent Mobile 66311B Mobile Communications DC Source, 0 to 15 Vdc, 0 to 3 A

The Keysight 66311B Mobile Communications DC Source is a high-performance DC power source that provides peak current sourcing and rapid, basic measurements plus fast dynamic measurement and analysis of voltage and current waveforms. in a compact, half-rack box. It is designed to simplify the testing of digital wireless communications products. Excellent voltage transient response characteristics prevent test interruptions due to triggering of low voltage phone shutdown. The 15-volt source and 3A peak current capability provide compatibility with a number of communications standards, including GSM, CDMA, TDMA, PCS, DECT, TERA, PHS, NADC, PHS, and others.

Dynamic measurement and analysis of current waveforms combined with precision current measurement let you characterize cellular phone current requirements under all operating conditions.

Features:

• Output ratings
  • Voltage: 0 to 15 V
  • Current: 0 to 3 A
  • Max Power: 45 W
  • Peak Current for up to 7 ms: 5 A
• Programming accuracy at 25°C ±5°C (% of setting plus fixed)
  • Voltage: 0.05% + 10 mV
  • +Current: 0.05% + 1.33 mA
• DC readback accuracy
  • Voltage: 0.03% + 5 mV
  • Current (-3 A to + 5 A): 0.2% + 0.5 mA
  • Current (-1 A to + 1 A): 0.1% + 1.1 mA
  • Current (-20 mA to + 20 mA): 0.1% + 2.5 µA
• Transient response
  • 70 mV drop, <35 µs transient response time
• Weight: 9.7 kg (20 lb)
• Shipping Weight: 11.1 kg (24.5 lb)

Please see Datasheet for complete details and specifications.
