Keysight / Agilent 84904K Programmable Step Attenuator, DC to 26.5 GHz, 0 to 11 dB, 1 dB steps

Keysight / Agilent 84904K Programmable Step Attenuator, DC to 26.5 GHz, 0 to 11 dB, 1 dB steps

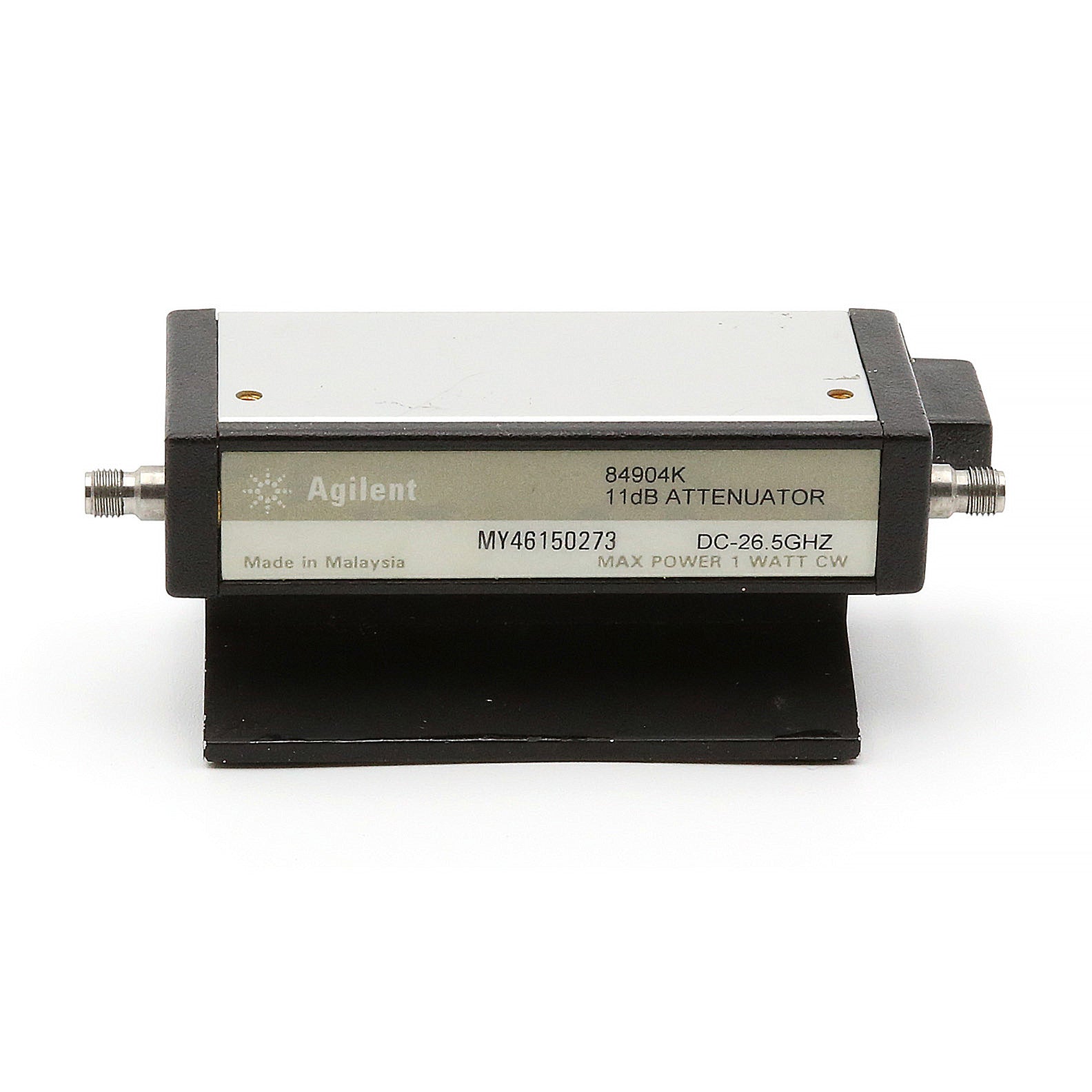

The Agilent 84904K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and attenuator range of 0 to 11 dB in 1-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of sapphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35% smaller than the Agilent 8495/7 (26.5 GHz) family, allows for easy integration into instruments and ATE systems.

Features:

• Frequency Range: dc to 26.5 GHz
• Insertion loss at 0 dB: 0.8 dB + 0.04 dB/GHz
• Maximum SWR: 1.3 to 12.4 GHz, 1.7 to 26.5 GHz

Repeatability and Life Span

• Repeatability life: 0.03 dB max 5 million cycles per section, typical
• 5 million cycles per section
• Power Handling: Maximum RF input power: 1 W (average), 50 W (peak)
• Connector type: 3.5 mm female, optional 3.5 mm male/female
• Programming connector: 10-pin sockets

Please see Datasheet for complete details and specifications.
