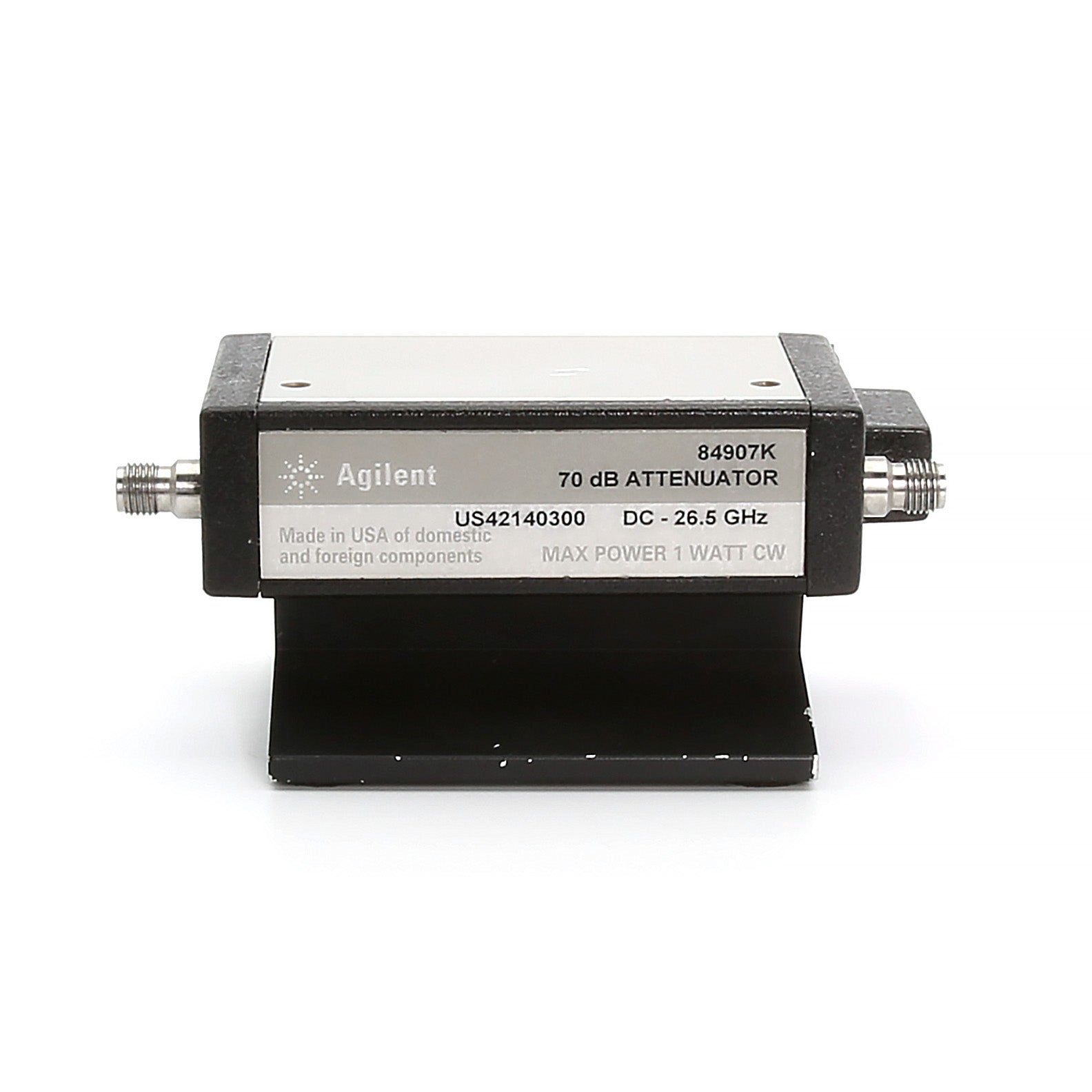

Keysight / Agilent 84907K Programmable Step Attenuator, DC to 26.5 GHz, 0 to 70 dB, 10 dB steps, 3.5 mm Connectors
The Agilent 84907K programmable step attenuator offers coaxial measurements to 26.5 GHz in a compact, rugged design. It offers repeatability of better than 0.03 dB, excellent life (greater than 5 million switching cycles per section) and an attenuation range of 0 to 70 dB in 10-dB steps. This latest design evolution sets new standards for size and performance. High attenuation accuracy and low SWR are achieved through the use of miniature thin-film attenuation cards composed of high-stability tantalum nitride film of sapphire substrate. Insertion loss is outstanding, with less than 2 dB of loss at 26.5 GHz. The compact size of the unit, 35 percent smaller than the Keysight 8495/7 26.5 GHz) family, allows for easy integration into instruments and ATE systems.
- Frequency Range: dc to 26.5 GHz
- Insertion loss at 0 dB: 0.6 dB + 0.03 dB/GHz
- Maximum SWR: 1.25 to 12.4 GHz, 1.5 to 26.5 GHz
- Repeatability life: 0.03 dB max 5 million cycles per section, typical
- 5 million cycles per section
- Maximum RF input power: 1 W (average), 50 W (peak)
- Connector type: 3.5 mm
- Programming connector: 10-pin sockets
Please see Datasheet for complete details and specifications.
