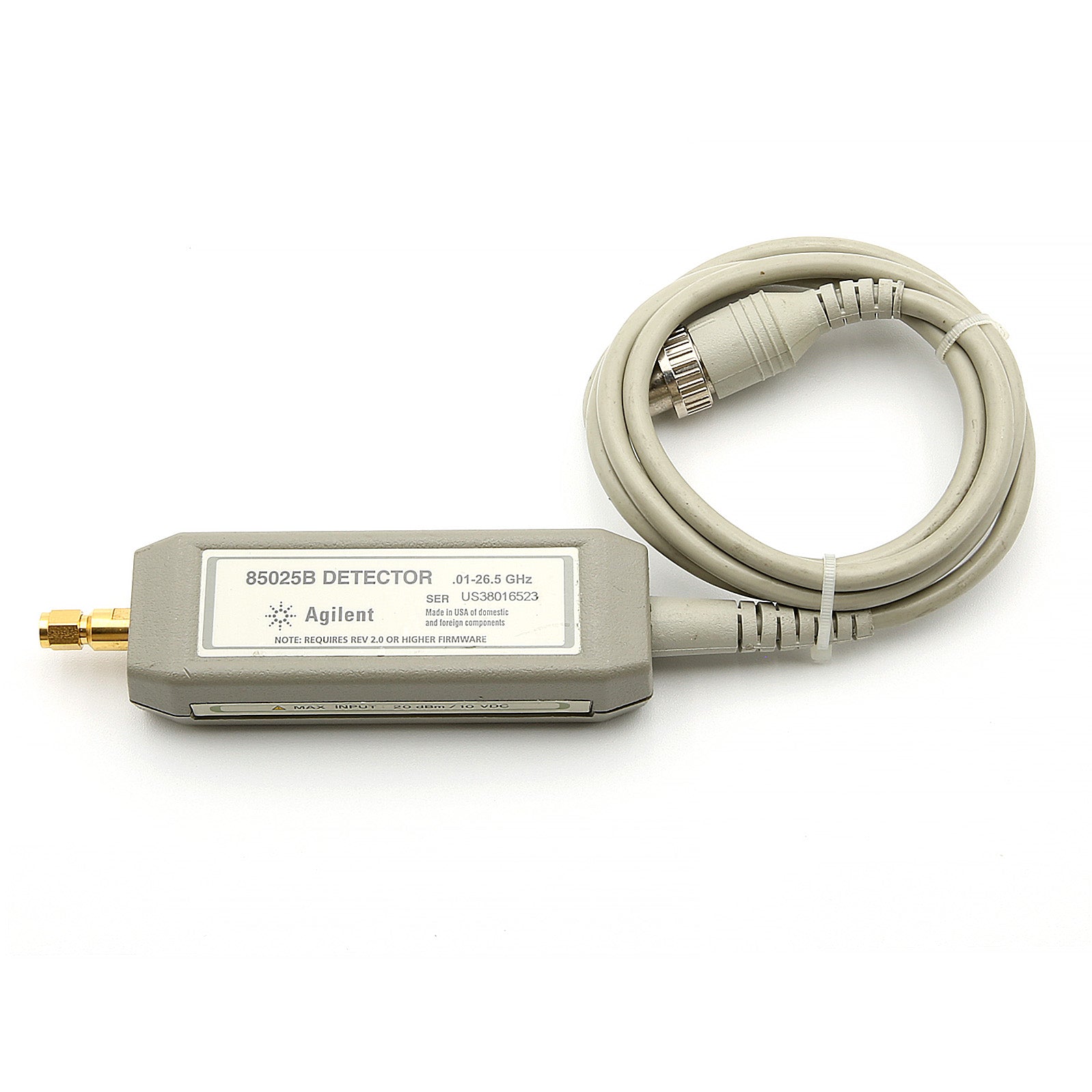

Keysight / Agilent 85025B Coaxial Detector, .01 to 26.5 GHz, 3.5 mm(m)

Keysight / Agilent 85025B Coaxial Detector, .01 to 26.5 GHz, 3.5 mm(m)

The 85025B detector is designed specifically for operation with the 8757 scalar network analyzers and is not compatible with the 8756 or the 8755. The 85025B detects either a modulated (ac) or an unmodulated (dc) microwave signal.

Features:

• Frequency Range: 10 MHz to 26.5 GHz
• Detects both ac and dc signals
• Dynamic range (ac mode, dc mode): +16 to -55 dBm, +16 to -50 dBm
• Input impedance: 50 ohms
• Connector: 3.5 mm(m)
• Shipping weight: 3 lb

Please see Datasheet for complete details and specifications.
