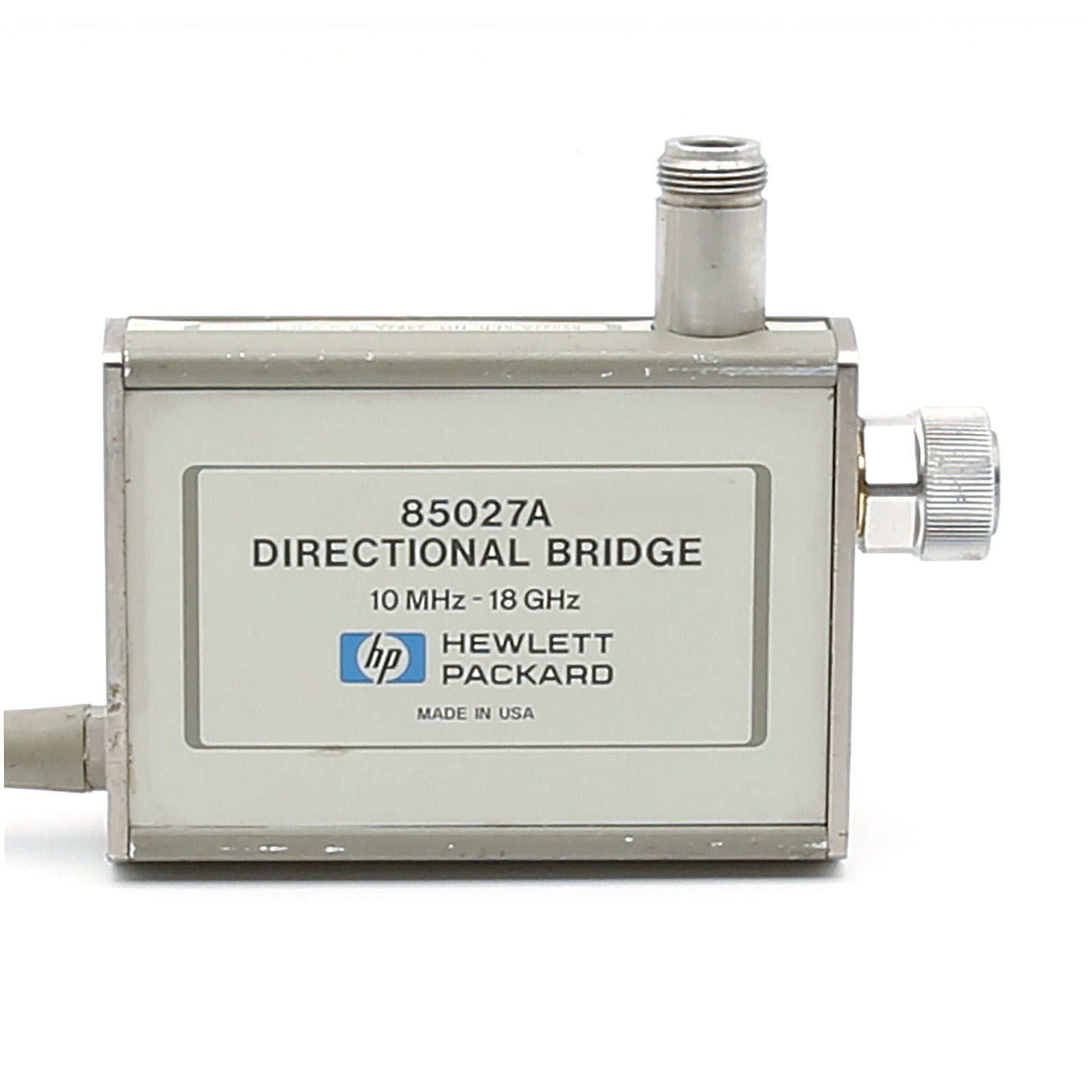

Keysight / Agilent 85027A Directional Bridge, .01 to 18 GHz, N(f)/APC-7

Keysight / Agilent 85027A Directional Bridge, .01 to 18 GHz, N(f)/APC-7

The 85027A directional bridge is designed to operate with either the 8757 in ac or dc detection modes or with the 8756 or 8755 in ac detection mode. This bridge offers high directivity, excellent test port match, and a measurement range of up to 18 GHz in coax.

Features:

• Frequency Range: 10 MHz to 18 GHz
• Can detect both ac and dc signals depending on scalar network analyzer used
• High directivity
• Excellent test port match
• Input connector: N(f); Test Port connector: APC-7
• Shipping weight: 5 lb

Please see Datasheet for complete details and specifications.
