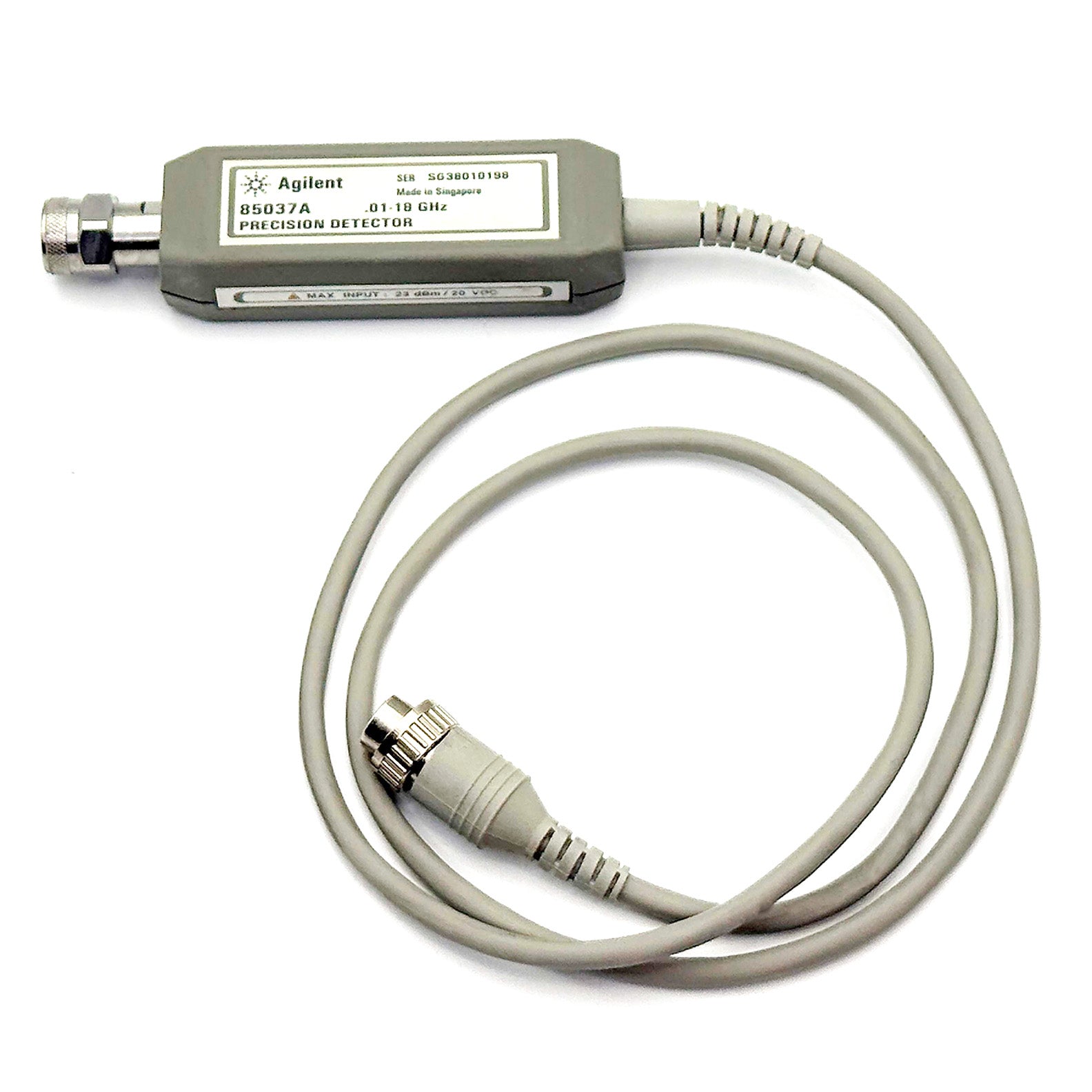

Keysight / Agilent 85037A Precision Detector, .01 to 18 GHz, N(m)

Keysight / Agilent 85037A Precision Detector, .01 to 18 GHz, N(m)

The 85037A precision detector is designed specifically for operation with the 8757D scalar network analyzer and may be used in either ac or dc detection modes. This dual diode detector contains internal frequency-correction factors in an internal EE PROM (read automatically by the 8757D) for improved measurement accuracy with frequency. When used in conjunction with the 8757D's internal power calibrator (Option 002), these detectors provide the maximum absolute power measurement accuracy. The 85037A is not compatible with the 8755, 8756, 8757A, 8757C, or 8757E.

Features:

• Frequency Range: 10 MHz to 18 GHz
• Detects both ac and dc signals
• Dynamic range (ac mode, dc mode): +20 to -55 dBm, +20 to -50 dBm
• Input impedance: 50 ohms
• Connector: N(m)
• Shipping weight: 3 lb

Please see the Datasheet for complete details and specifications.
