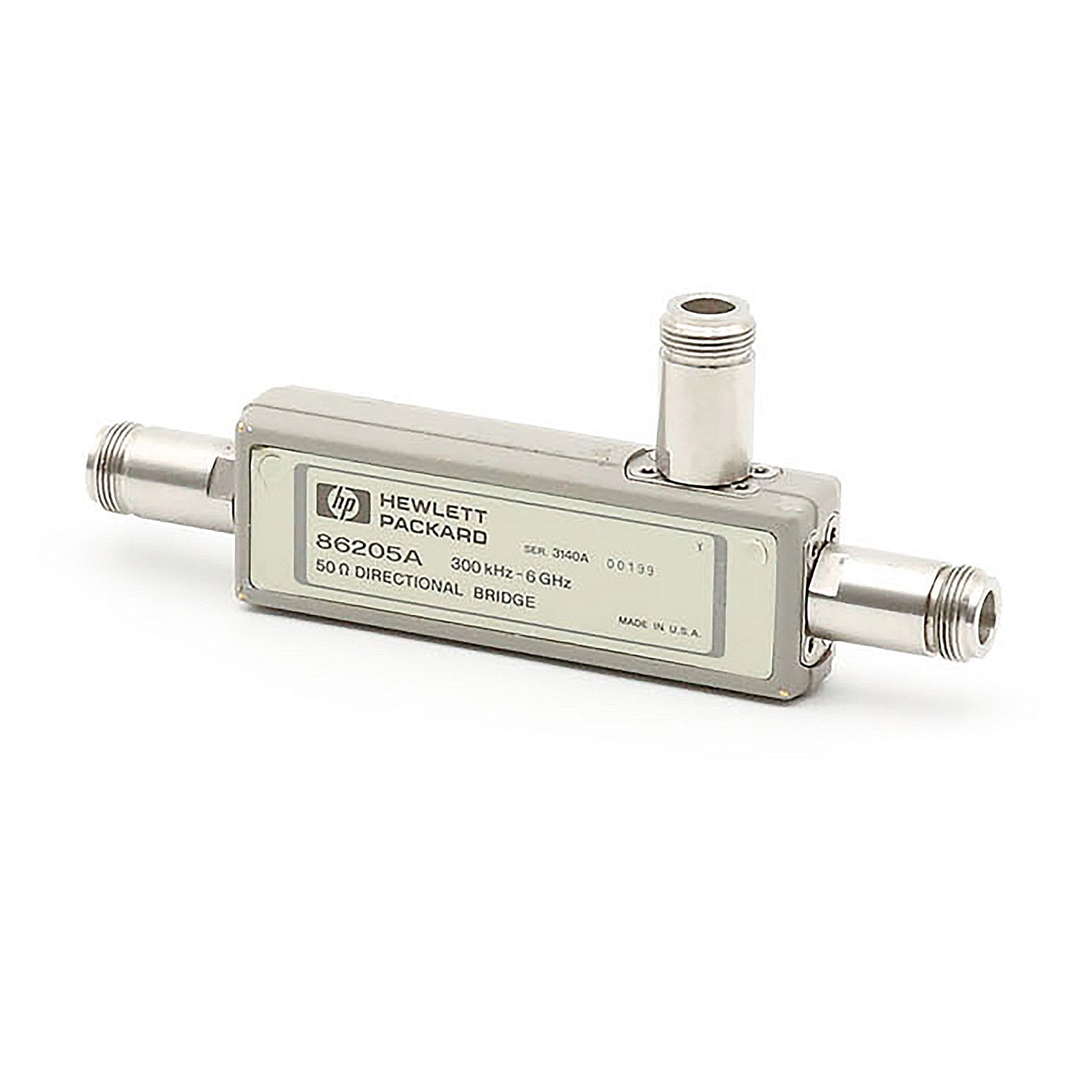

Keysight / Agilent 86205A RF Directional Bridge, 300 kHz to 6 GHz, 50 Ohm, N(f)

Keysight / Agilent MPN: 86205A
REFURBISHED & TESTED 90-DAY WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$1,595.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Keysight / Agilent 86205A RF Directional Bridge, 300 kHz to 6 GHz, 50 Ohm, N(f)

The 86205A high directivity 50 ohm RF bridge offers unparalleled performance in a variety of general-purpose applications. It is ideal for accurate reflection measurements and signal leveling applications.

Features:

  • Frequency Range: 300 kHz to 6 GHz
  • Impedance: 50 Ohms (nominal)
  • Coupling: 16.0 dB, +0.15 dB/GHz, >3 GHz 16.5 dB, -0.20 dB/GHz
  • Directivity: 30 dB to 0.3 MHz, 40 dB to 2 GHz, 30 dB to 3 GHz, 20 dB to 5 GHz, 16 dB to 6 GHz
  • Insertion loss: 1.5 dB + 0.1 dB/GHz
  • SWR: 0.3 MHz to 2.0 GHz (1.15 SWR), 2.0 GHz to 3 GHz (1.22 SWR), 3 GHz to 5 GHz (1.29 SWR), 5 GHz to 6 GHz (1.38 SWR)
  • Connectors: Type N(f)
  • Shipping weight: 3 lb

Please see Datasheet for complete details and specifications.
