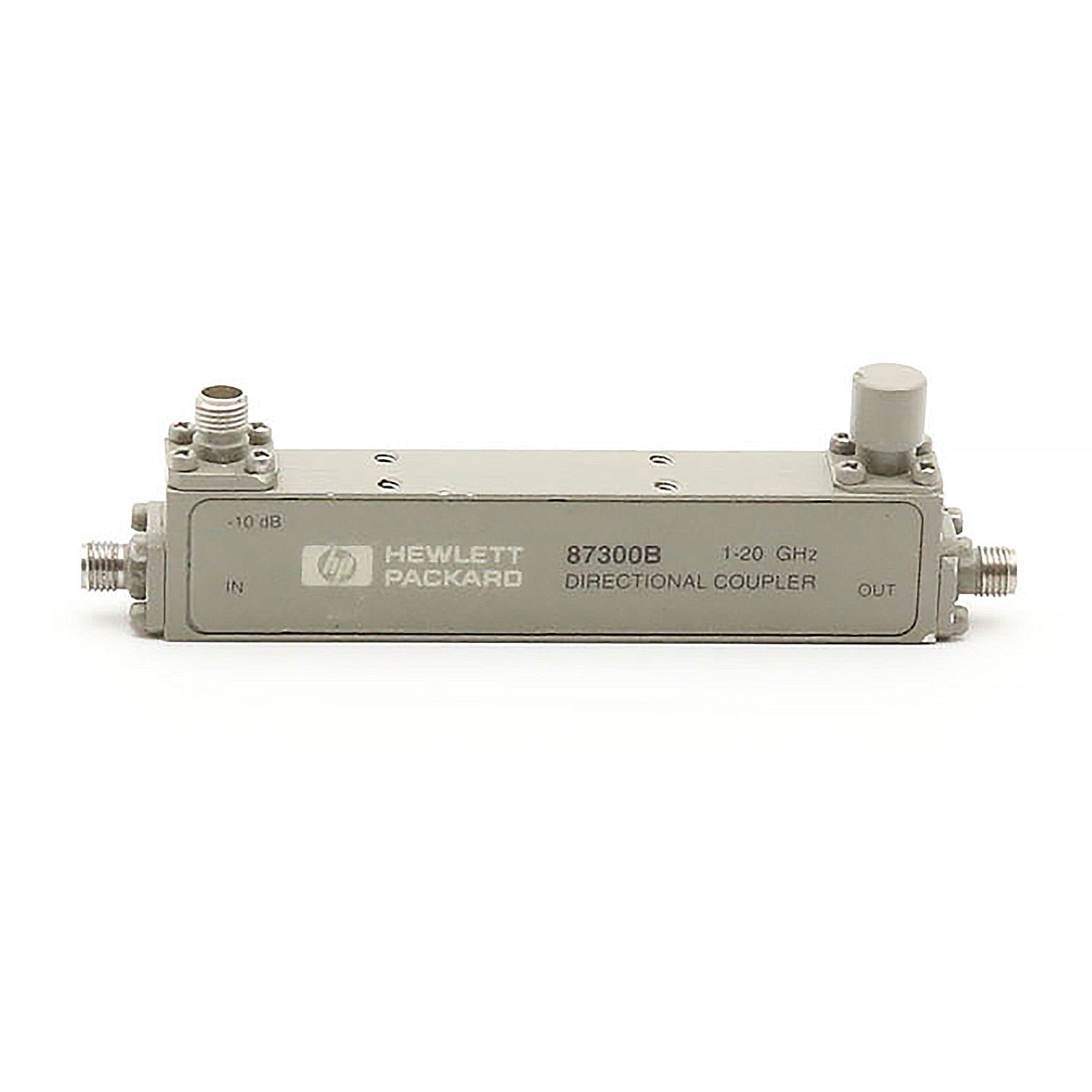

Keysight / Agilent 87300B Directional Coupler, 1 to 20 GHz, 10 dB, SMA(f/f/f)
The 87300B is a compact, broadband directional sampling coupler designed for signal monitoring or, when combined with a coaxial detector, signal leveling. It is supplied with SMA female connectors.
- Frequency Range: 1 to 20 GHz
- Nominal Coupling: 10 ±0.5 dB
- Frequency Sensitivity: ±0.35 dB, 1 to 20 GHz
- Directivity: >16 dB
- Maximum SWR: 1.35
- Insertion loss: <1.5 dB
- Typical insertion loss (dB, f = freq. in GHz): 0.6 +0.04f
- Power Rating: Average 20 W, Peak 3 kW
- Connectors: SMA(f)
Please see Datasheet for complete details and specifications.
