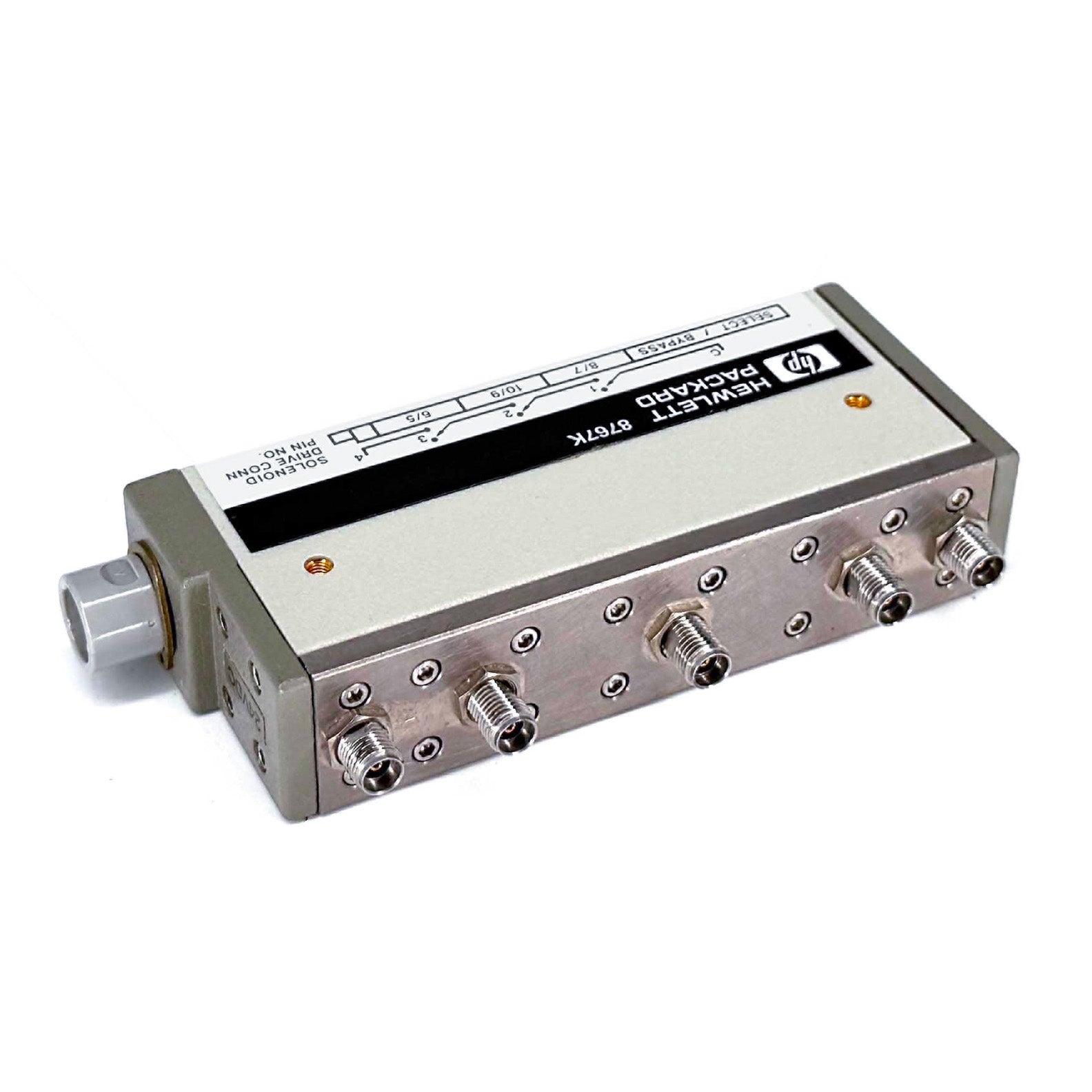

Keysight / Agilent 8767K Multiport Coaxial Switch, DC to 26.5 GHz, SP4T

Keysight / Agilent 8767K Multiport Coaxial Switch, DC to 26.5 GHz, SP4T

The 8767K is a single-pole, four-throw microwave switch that utilizes the same proven technology as the Keysight 849X family of step attenuators. It offers rugged reliability, excellent repeatability (typically 0.03 dB), long operating life cycles, and compactness. Switching time is less than 20 ms, including contact settling time. The switch features self-interrupting contacts, which minimize power consumption and simplify the design of the driver circuit. A wide range of solenoid voltage choices (24 volts standard, or optionally 5 or 15 volts) is available to match the requirements of your product or system.

Features:

• Frequency Range: DC to 26.5 GHz
• 5 million cycles typical
• 0.03 dB repeatability typical
• Unterminated
• Current interrupts and position indication capability
• Exceptional isolation

• Connectors: 3.5 mm (f); (Option 002 - SMA (f))

Please see the Datasheet for complete details and specifications.
