Description

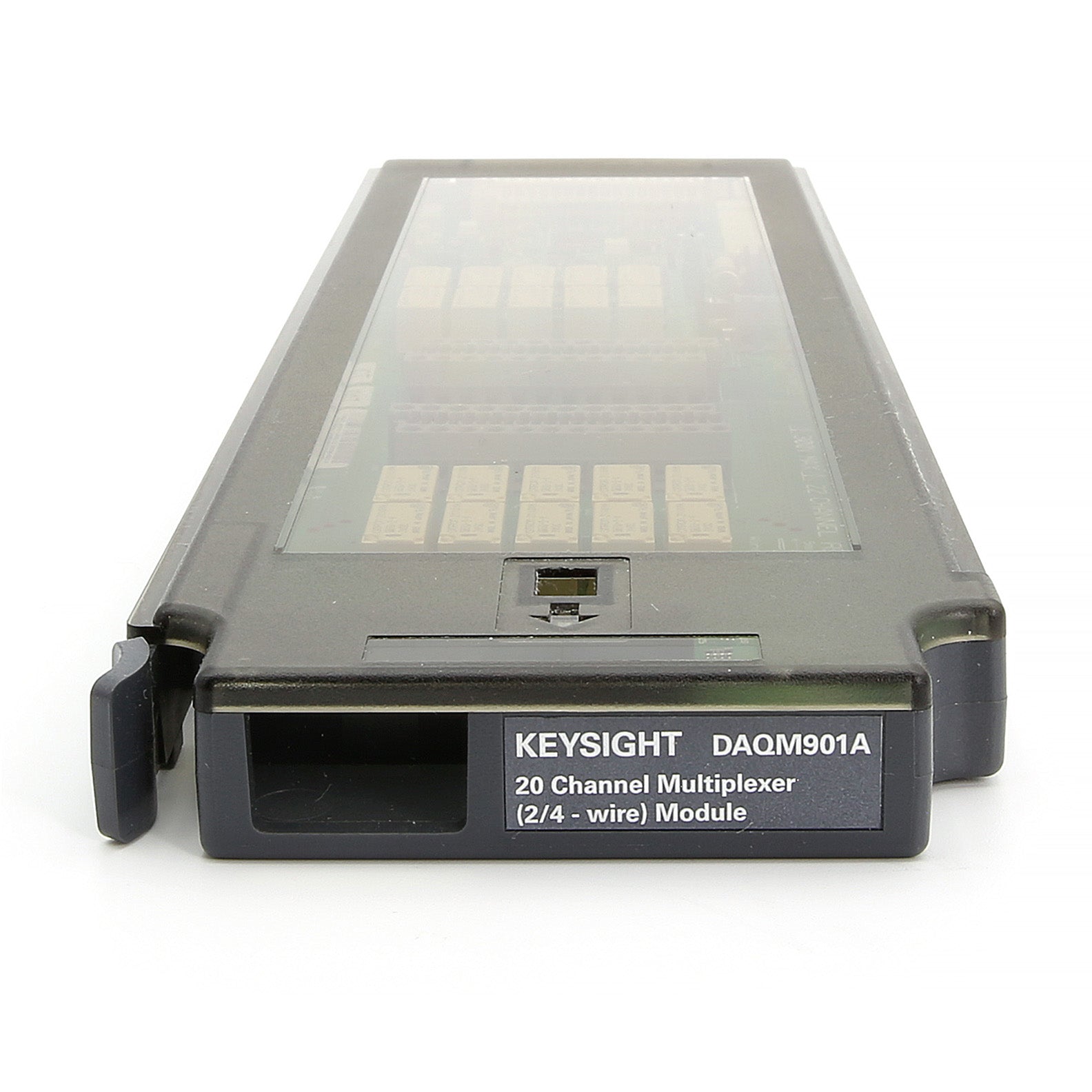

Keysight / Agilent DAQM901A 20 Channel Armature Multiplexer
The Agilent DAQM901A module for the DAQ970A/DAQ973A Data Acquisition/Switch Units is the most versatile multiplexer for general purpose scanning. It combines dense, multi-function switching with 60 channel/second scan rates to address a broad spectrum of data acquisition applications.
Two- and four-wire channels can be mixed on the same module. Two additional fused inputs (22 channels total) route up to 1A of current to the internal DMM, allowing ac and dc current measurements without the need for external shunt resistors.
Features:
- 20 Channel Multiplexer
- 60 ch/s scanning
- Two- and four-wire scanning
- Built-in thermocouple reference junction
- 300 V switching
- Shipping Weight: 4 lb
Please see Datasheet for complete details and specifications.
Datasheets / Specifications
DAQM901APayment & Security
