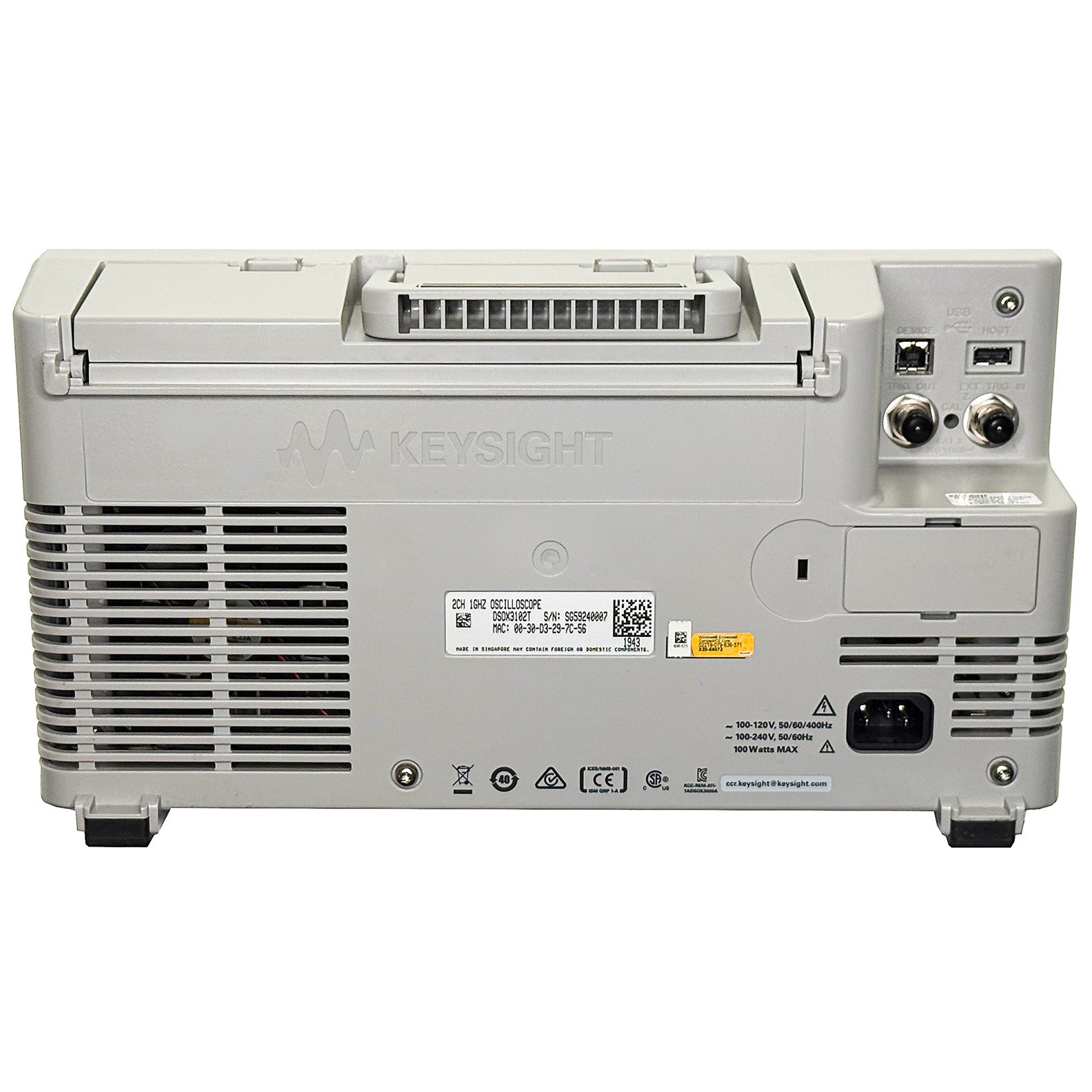

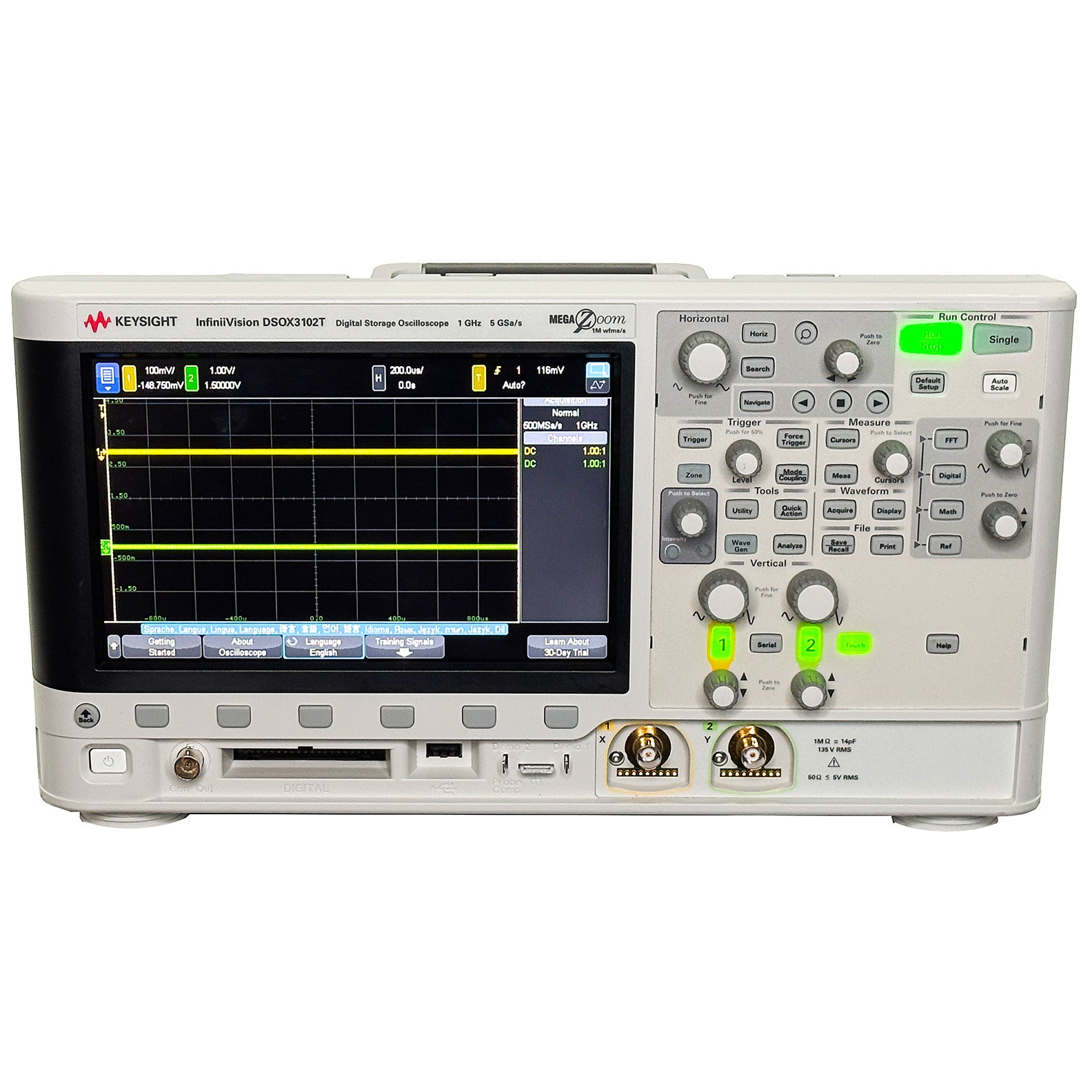

Keysight / Agilent DSOX3102T Oscilloscope: 1 GHz, 2 Analog Channels, 5 GSa/s

Keysight / Agilent DSOX3034T Oscilloscope, 1 GHz, 2 Channels

The 3000T X-Series takes everything that was revolutionary about the InfiniiVision 3000A X-Series and adds a capacitive touch screen, a user interface designed for touch, and the exclusive zone touch trigger, all combined with an industry-leading uncompromised update rate of 1 million waveform/sec to give you the confidence that you’re seeing all of your signal detail, and the ability to discover any issues. And the addition of new analysis capabilities helps you solve your hardest problems quickly.

• Voltage:
  • Peak-to-peak, maximum, minimum, amplitude, top, base, overshoot, pre-shoot, average- N cycles,
  average- full screen, DC RMS- N cycles, DC RMS- full screen, AC RMS- N cycles, AC RMS- full
  screen (standard deviation), ratio- N cycles, ratio- full screen
• Time:
  • Period, frequency, counter, + width, - width, burst width, duty cycle, bit rate, rise time, fall time, delay,
  phase, X at min Y, X at max Y
• Count:
  • Positive pulse count, negative pulse count, rising edge count, falling edge count
• Mixed:
  • Area- N cycles, area- full screen
• Counter:
  • Built-in frequency counter
• PathWave BenchVue oscilloscope software for remote control, data logging, and automated testing
• See the most signal detail with 1,000,000 waveforms/second update rate
• Isolate signals in seconds with zone touch triggering
• Decode serial buses faster with hardware-based serial analysis options
• Test faster with simplified operations and an intuitive user interface enabled by an 8.5-inch capacitive touch screen.

Features:

• 1 GHz Bandwidth
• 2 Analog Channels
• Calculated rise time (10 to 90%): ≤1 ns
• Sample Rate: 5 GSa/s half channels, 2.5 GSa/s all channels

• Memory Depth: 4 Mpts half channels, 2 Mpts all channels
• 8.5-inch capacitive touch gesture-enabled color display
• Waveform Update Rate: >1,000,000 waveforms per second
• Input Impedance Selectable: 1 MΩ ±1% (14 pF), 50 Ω ±1.5%
• Vertical Resolution: 8 bits (measurement resolution is 12 bits with averaging)
• Time base range: 2 ns/div to 50 s/div
• Two USB 2.0 high-speed host ports, front and rear panel
• Line Voltage: 100 to 120 Vac, 50/60/400 Hz; 100 to 240 Vac, 50/60 Hz
• Dimensions (W x H x D) 381 mm (15 in) x 204 mm (8 in) x 142 mm (5.6 in)
• Weight: 4.0 kg (9.0 lbs.)

Please see the datasheet for complete details and specifications.
