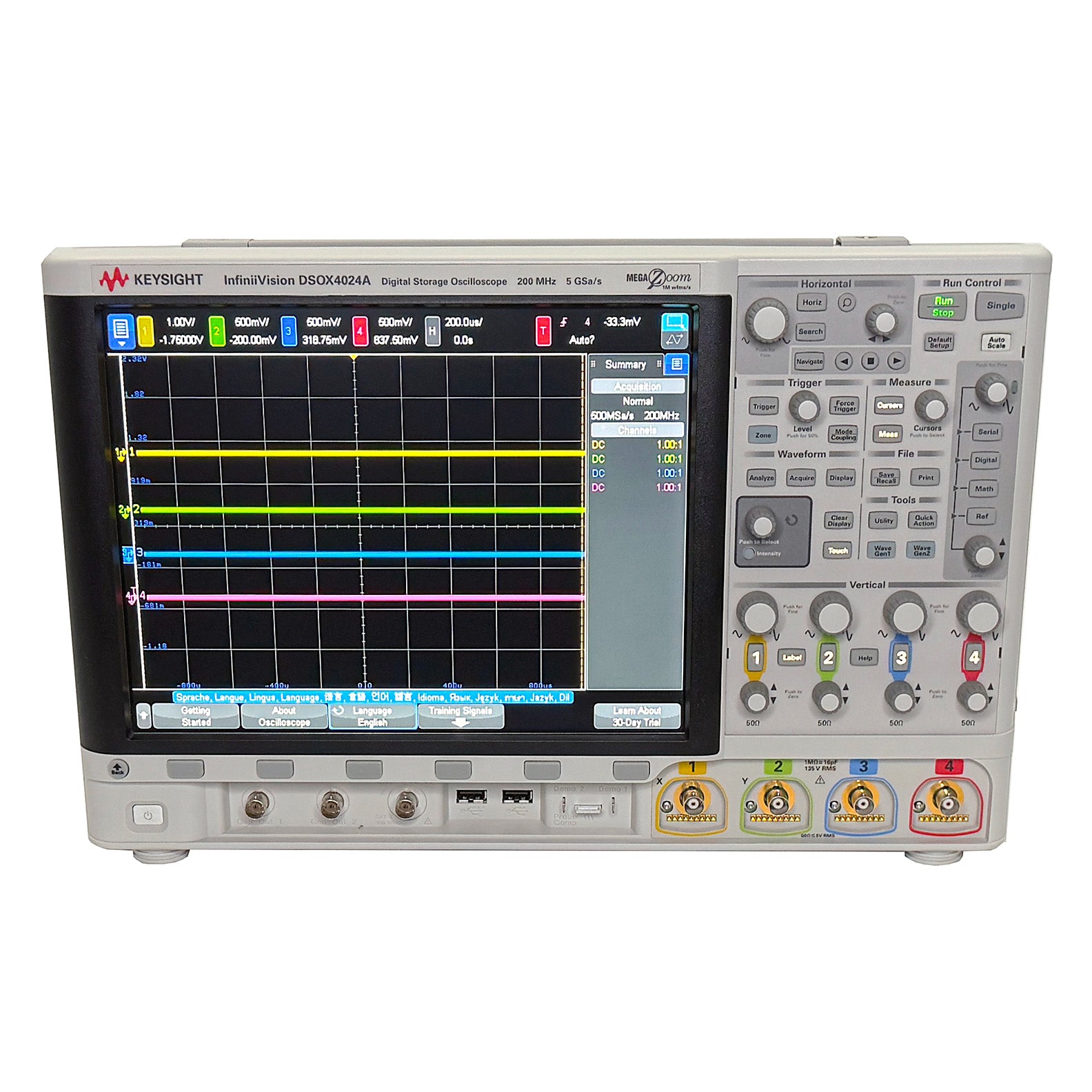

Keysight / Agilent DSOX4024A Oscilloscope, 200 MHz, 4 Analog Channels

Keysight / Agilent DSOX4024A Oscilloscope, 200 MHz, 4 Analog Channels

The DSOX4024A oscilloscope offers high-end technology in a smaller form factor, with an extremely intuitive touch user interface. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes. Combined with an extensive set of software options and probes, the 4000A X-Series enables you to make measurements you can count on.

• Industry’s only uncompromised 1,000,000 waveforms per second update rate
• Zone trigger, segmented memory, FFT, math
• Large touchscreen with easy-to-use interface and built-in help, zone trigger
• This 7-in-1 instrument provides:
  • Oscilloscope
  • 16 digital channels
  • Serial protocol analyzer
  • Dual-channel WaveGen 20 MHz function/arbitrary waveform generator
  • 3-digit voltmeter
  • Frequency response analysis (Bode plots)
  • 8-digit hardware counter with totalizer
• General debug to industry-specific analysis
• Extensive probe and accessories portfolio

Features:

• 200 MHz Bandwidth
• 4 Analog Channels
• Sample Rate: 5 GSa/s
• Memory Depth: 4 Mpts half channels, 2 Mpts all channels
• 12.1-inch capacitive color touch screen
• Waveform Update Rate: > 1,000,000 waveforms per second
• Input sensitivity range: 1 mV/div to 5 V/div (1 MΩ and 50 Ω)
• Input impedance- Selectable: 1 MΩ ± 1% (16 pF), 50 Ω ± 1.5%
• 8-bit Vertical Resolution

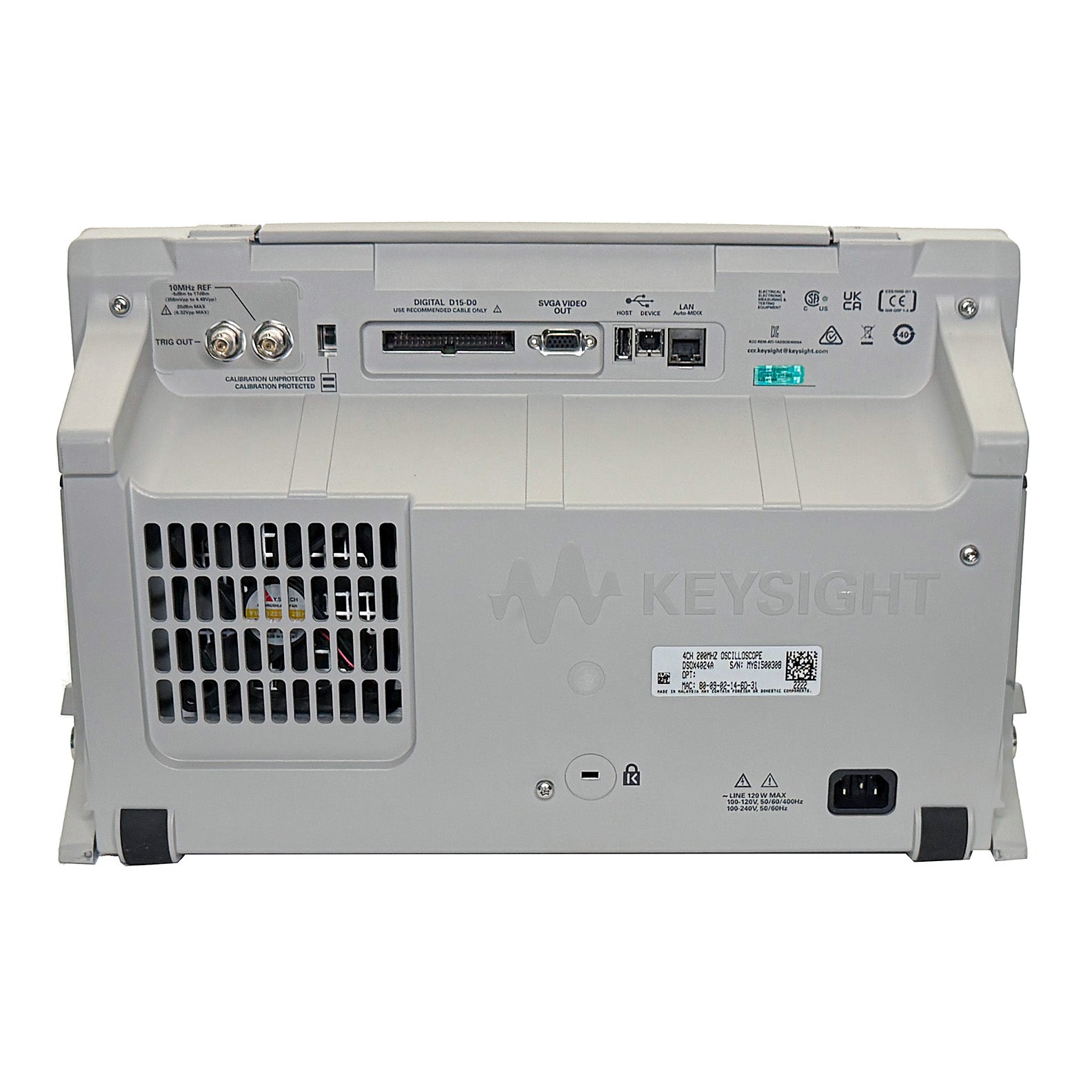

• Interfaces: LAN; USB 2.0 hi-speed host ports x3, two front and one real panel. Supports memory devices, printers, keyboards, and mice; USB 2.0 high-speed device port. One USB 2.0 high-speed device port on the rear panel.
• Shipping weight: 9.2 lb

Please see the Datasheet for complete details and specifications.
