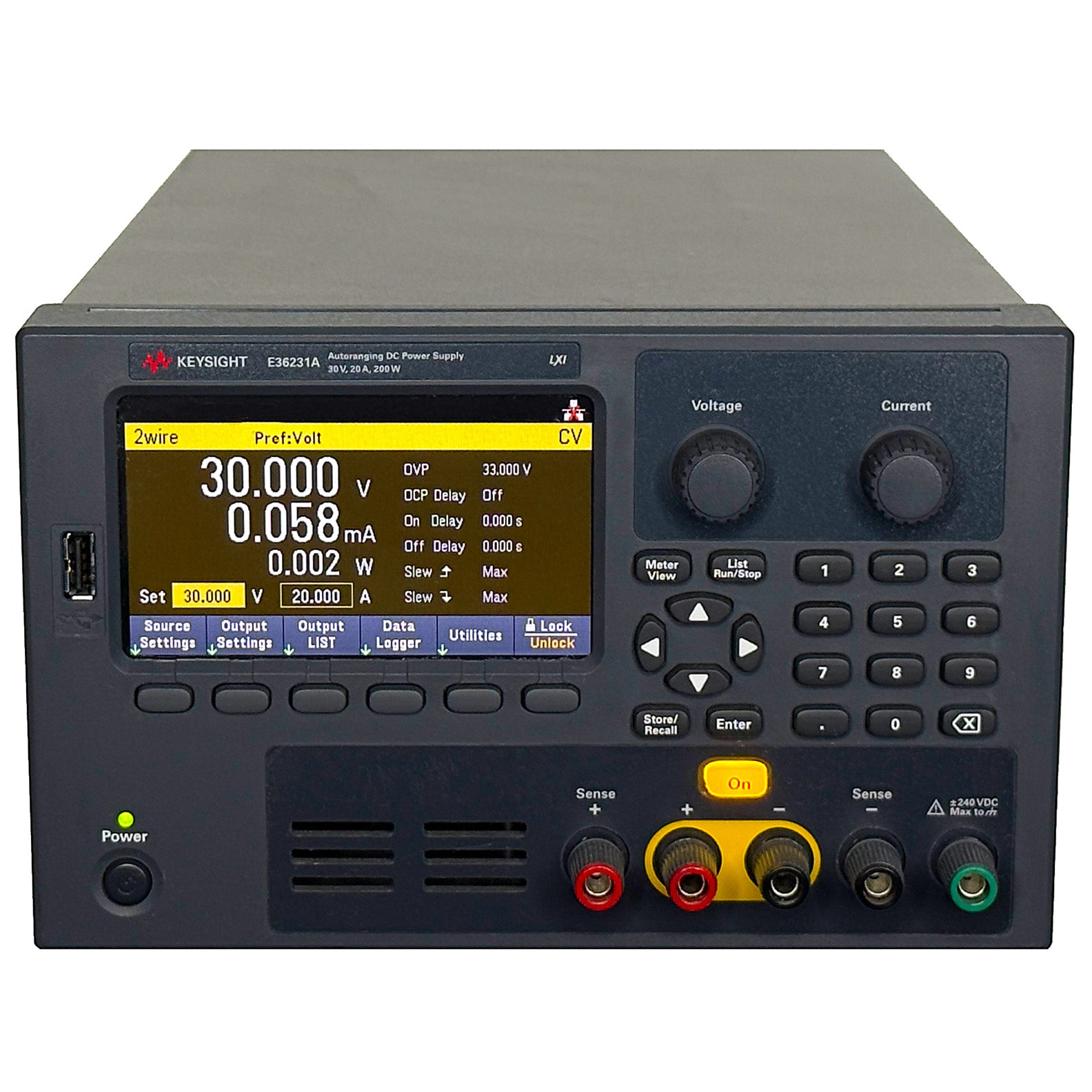

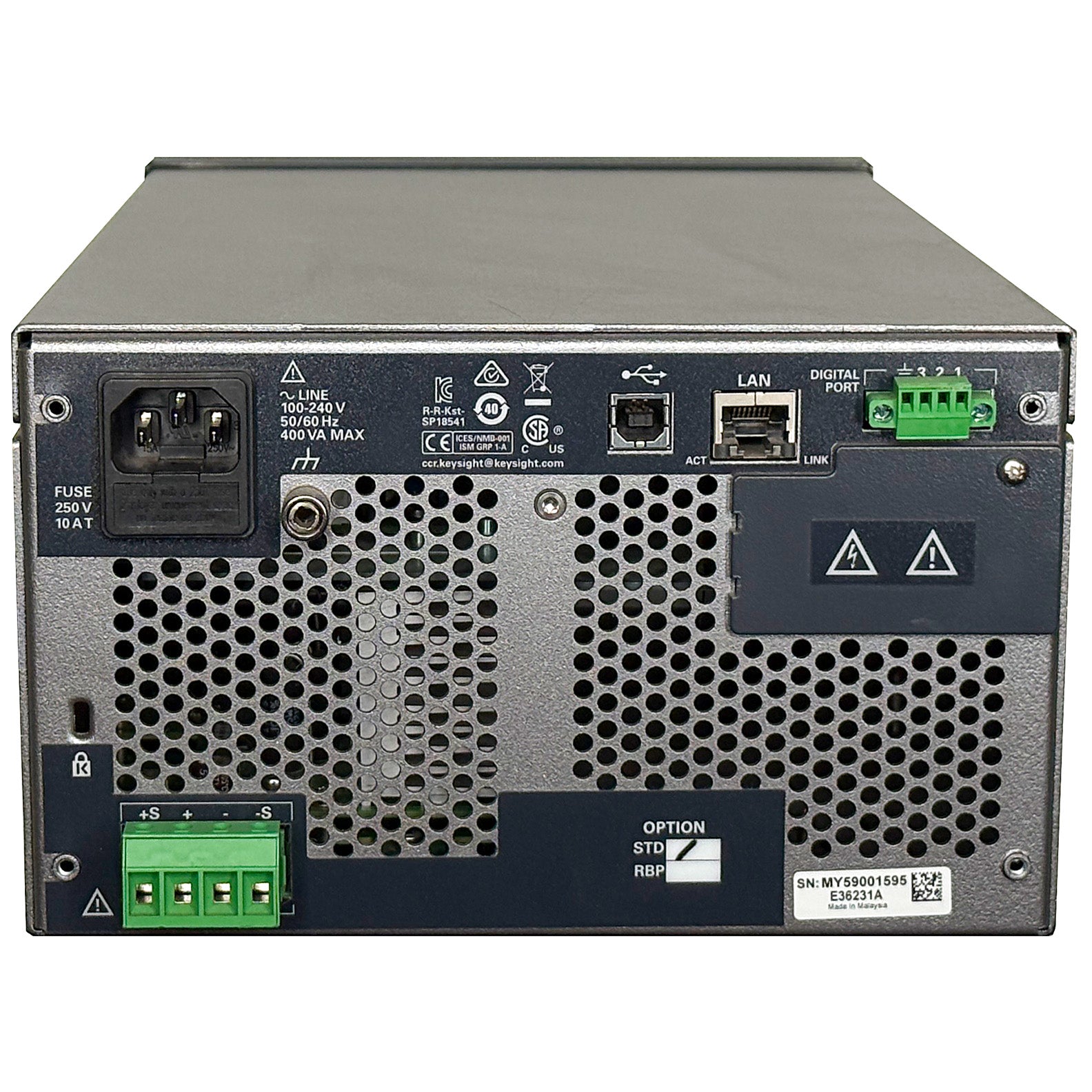

Keysight / Agilent E36231A DC Power Supply, 0 to 30 Vdc, 0 to 20 A, 200 W

Keysight / Agilent E36231A DC Power Supply, 0 to 30 Vdc, 0 to 20 A, 200 W

The E36231A is a 200 W programmable DC power supply. Autoranging technology provides the highest current available at all output voltages. Power devices with up to 40 A using auto-parallel or auto-series to internally connect the two outputs into a single output with twice the power.

Features:

• Voltage Output 200 W, 0 to 30 V, 0 to 20 A
• Ripple and Noise (20 Hz to 10 MHz): Normal Mode Voltage - <350 µVrms/ 4.5 mV p-p mVpp, Normal Mode Current - <1 mA rms
• Readback Accuracy ± (% of output + offset): Voltage: 0.03% + 4 mV Current: 0.1% + 6 mA
• Programming Accuracy ± (% of output + offset): Voltage: 0.03% +4 mV; Current: 0.1% + 6 mA
• Standard USB and LAN interfaces
• 100, 115, or 230 V input (±10%), 50/60 Hz operation
• Weight: 9.8 kg; Size: 145 mm H x 216 mm W x 367 mm D

Please see the Datasheet for complete details and specifications.
