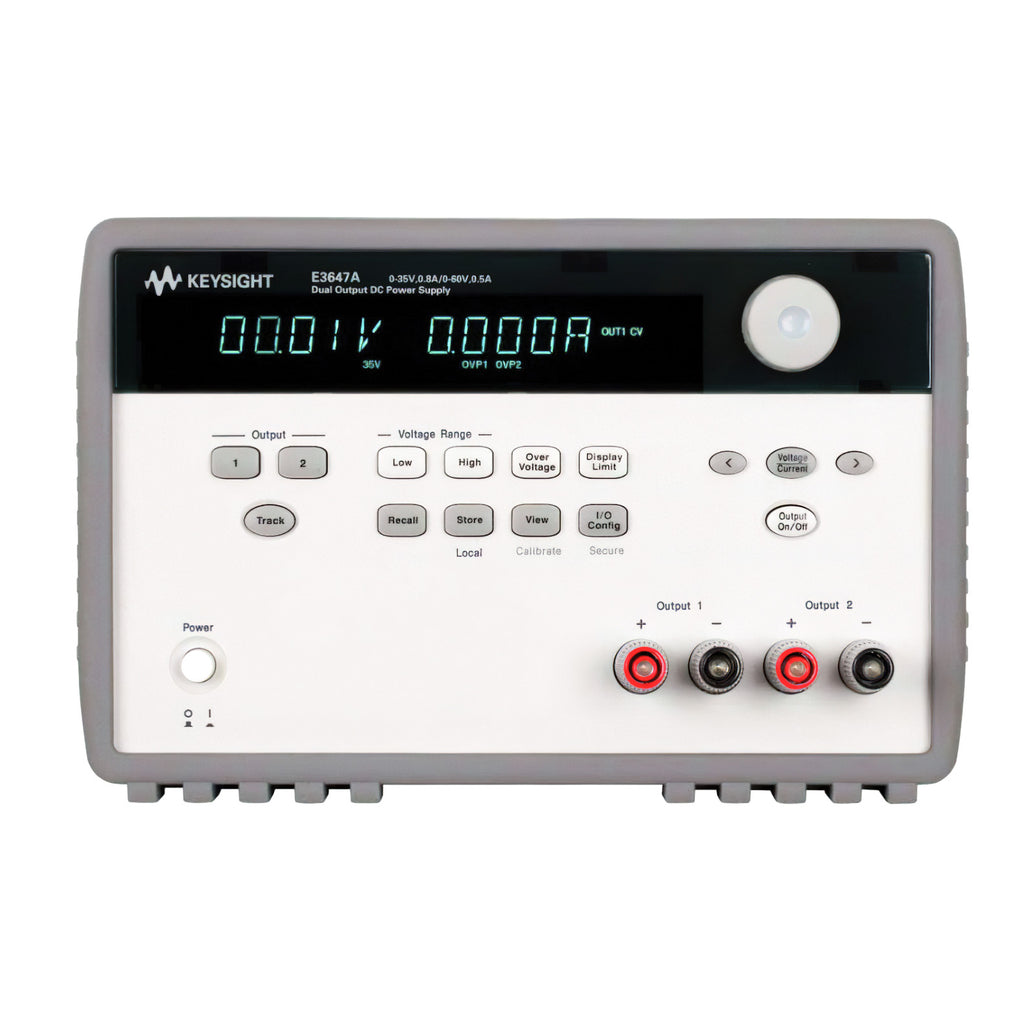

Keysight / Agilent E3647A 60W Dual Output DC Power Supply, Two 35V, .8A or 60V, .5A
The E3647A is a selectable output range DC power supply featuring a digital readout. The E3647A delivers clean power, dependable regulation, fast transient response and built-in GPIB and RS-232 interfaces.
- Voltage outputs x2: 0 to 35 Vdc @ 0-0.8 A or 0 to 60 Vdc @ 0-0.5 A
- Ripple & noise (voltage/rms peak-peak/current rms): <8 mVpp / 1 mVrms/<4 mArms
- Voltage programming accuracy: 0.05% +10 mV
- Load regulation: <0.01% + 3 mV; <0.01% + 250 µA
- GPIB and RS-232 interfaces
- 115 Vac ±10%; 47-63 Hz operation
- Weight: 17.6 lb; Size: 133 mm (5.2 in)H x 212.8 mm (8.38 in)W x 348.3 mm (13.71 in)D
Please see Datasheet for complete details and specifications.
