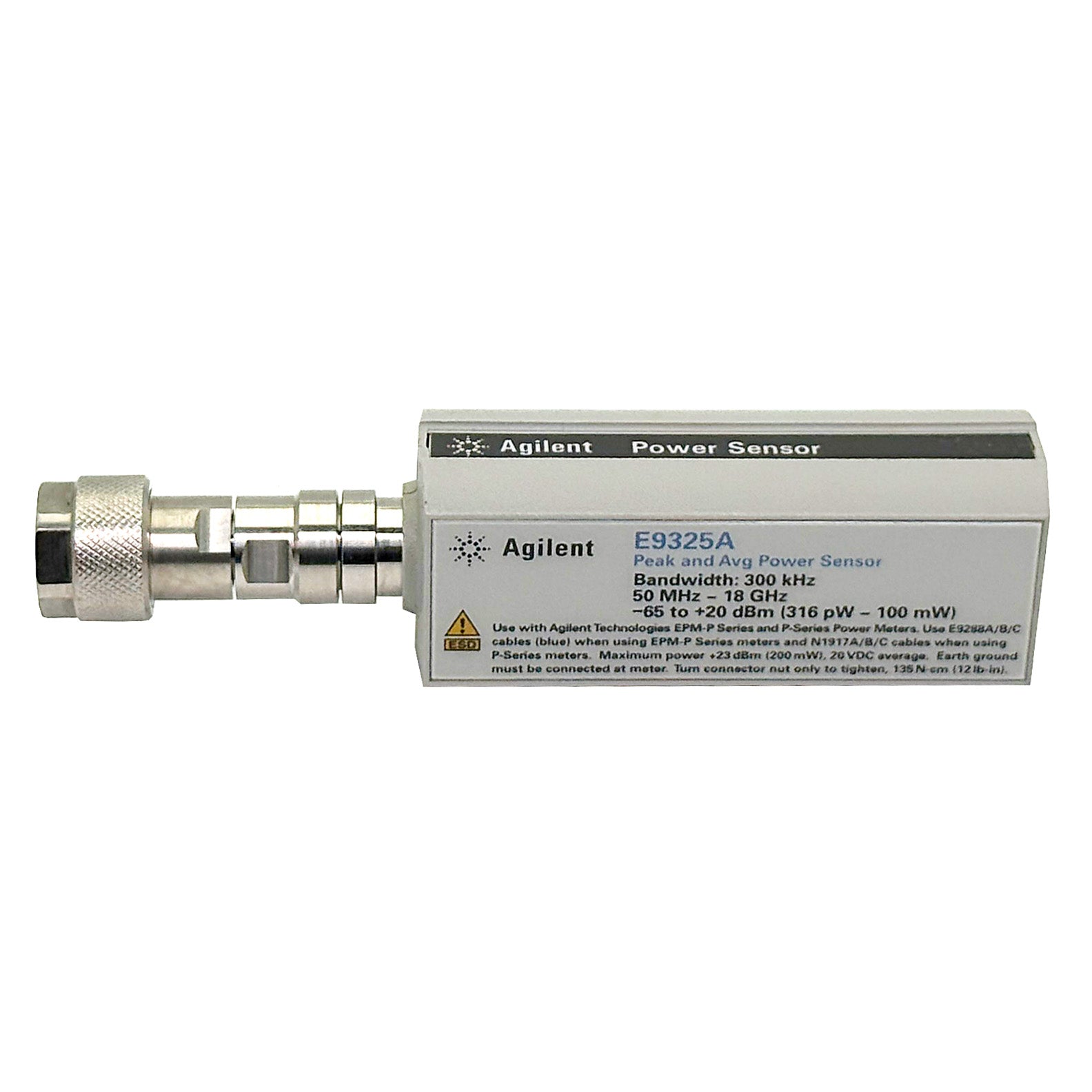

Keysight / Agilent E9325A Peak and Average Power Sensor, 50 MHz to 18 GHz, -60 to +20 dBm
Roll over image to zoom in Click on image to zoom
Keysight / Agilent E9325A Peak and Average Power Sensor, 50 MHz to 18 GHz, -60 to +20 dBm

Keysight / Agilent E9325A Peak and Average Power Sensor, 50 MHz to 18 GHz, -60 to +20 dBm

Keysight / Agilent MPN: E9325A
REFURBISHED & TESTED 90-DAY WARRANTY ALSO AVAILABLE FOR RENT
Price:
$1,695.00 USD
Stock:
Available - Please contact our office at 1-800-366-5240 for update.

Description

Keysight / Agilent E9325A Peak and Average Power Sensor, 50 MHz to 18 GHz, -60 to +20 dBm

The E9325A Diode Power Sensor has a 300 kHz video bandwidth and is ideal for time-gated peak, average, and peak-to-average ratio power measurements on TDMA wireless formats such as NADC, GSM, and EDGE.

Note: E9320 power sensors MUST be used with an E9288A, B, or C cable (not included).

Features:

  • Frequency Range: 50 MHz to 18 GHz
  • Power Range: Average only mode -60 dBm to +20 dBm; Normal Mode -50 dBm to +20 dBm
  • 300 kHz video bandwidth, ideal for GSM, EDGE, and NADC applications
  • Fast measurement speed, up to 1000 corrected readings per second, via the GPIB
  • Wide dynamic range
  • Calibration factors, linearity, temperature, and bandwidth correction stored in EEPROM
  • Precision type-N connector as standard
  • Operates with the EPM-P (E4416A/ 17A) series and P-Series (N1911A/12A) power meters
  • Shipping Weight: 2 lb

Please see the Datasheet for complete details and specifications.

Datasheets / Specifications

PDF E9325A
