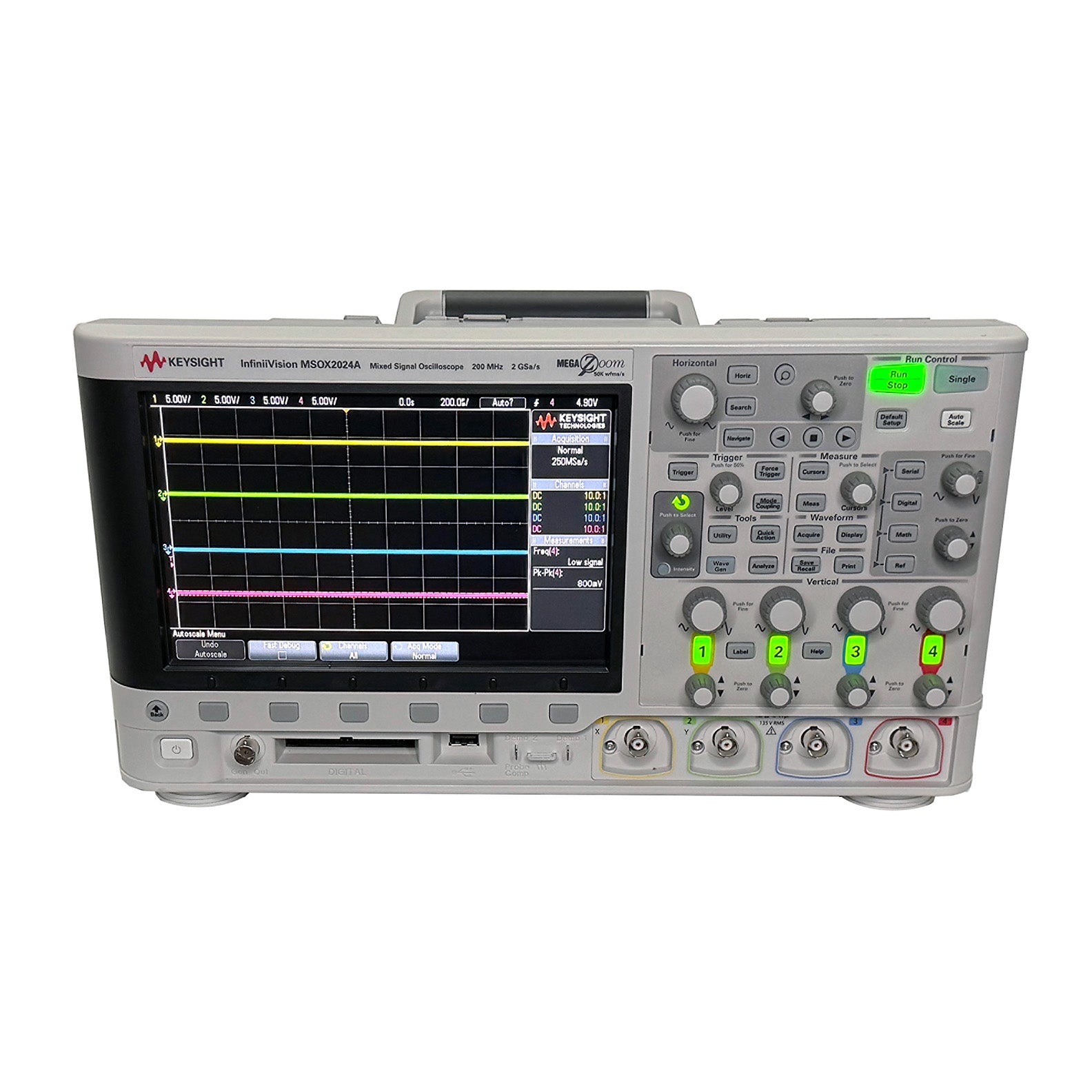

Keysight / Agilent MSOX2024A Mixed Signal Oscilloscope, 200 MHz, 4 Analog Channels

Keysight / Agilent MSOX2024A Mixed Signal Oscilloscope, 200 MHz, 4 Analog Channels, 8 Digital Channels

The MSOX2024A oscilloscope offers high-end technology in a smaller form factor. With an industry-leading waveform update rate, you can capture elusive glitches and anomalies not possible on other oscilloscopes. Combined with an extensive set of software options and probes, the 2000A X-Series enables you to make measurements you can count on.

• 200 MHz bandwidth

• 4 analog plus 8 digital channels
• Easily view your signals on the 8.5-inch WVGA display
• Capture more data with up to 1 Mpts memory
• See more signal detail with 200,000 waveforms/second update rate
• Expand your measurement capabilities with full upgradeability: add a 20 MHz function generator, a 3-digit voltmeter, serial trigger and analysis, segmented memory, and mask testing at any time

Features:

• 200 MHz Bandwidth (upgradable)
• 4 Analog Channels
• 8 Digital Channels
• Sample Rate: 2.5 GSa/s
• Memory Depth: 4 Mpts
• 8.5-inch Display
• Waveform Update Rate: >200,000 waveforms per second
• Input sensitivity range: 1 mV/div to 5 V/div
• Input impedance: 1 MΩ ± 2% (11 pF)
• 8-bit Vertical Resolution
• Integrated digital voltmeter
• Integrated hardware counter: 5-digit frequency counter (8 digits with external 10 MHz clock reference)
• Serial protocol analysis I2C, UART
• Segmented memory

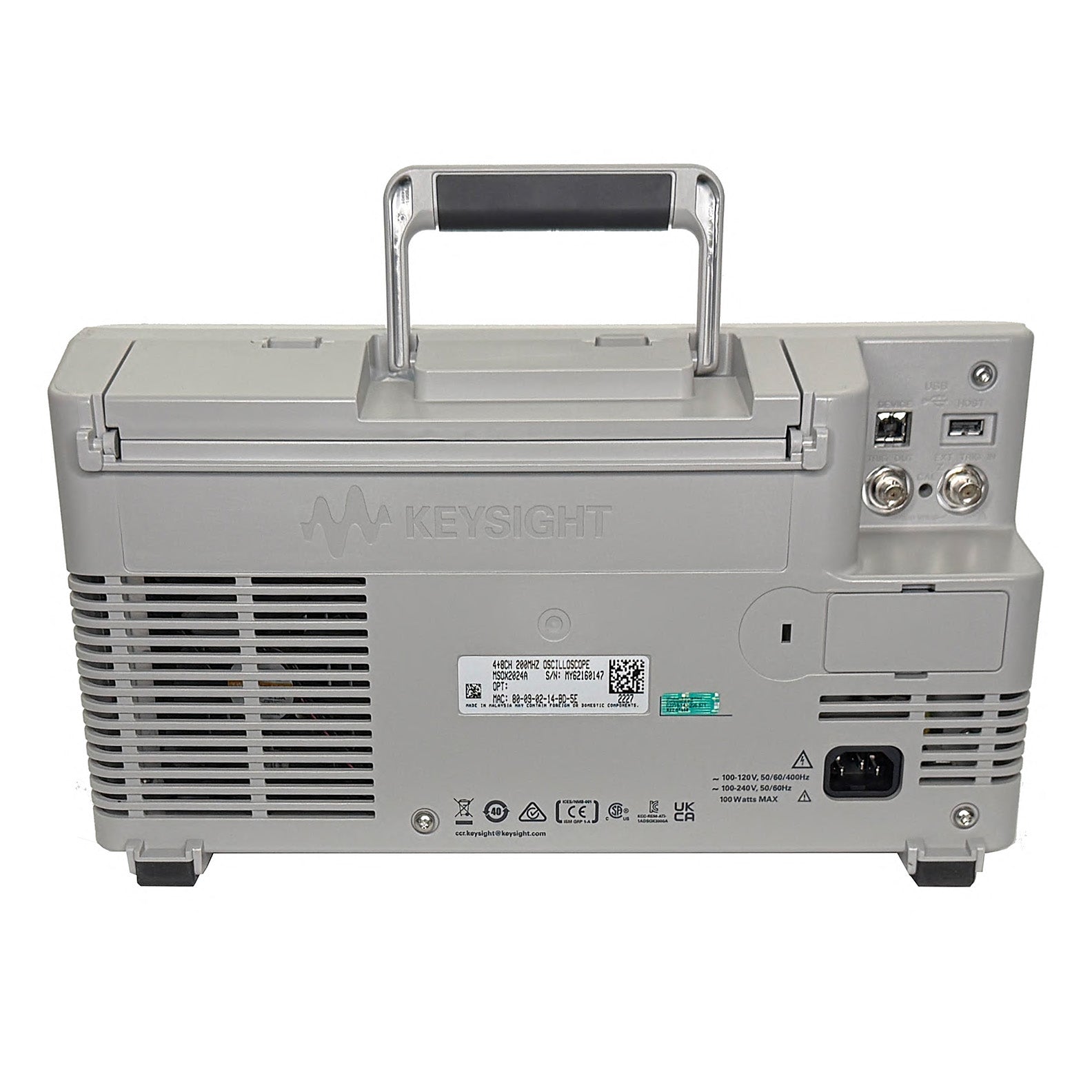

• Standard ports: One USB 2.0 high-speed device port on rear panel; Two USB 2.0 high-speed host ports, front and rear panel
• Shipping weight: 9.2 lb

Please see the Datasheet for complete details and specifications.
