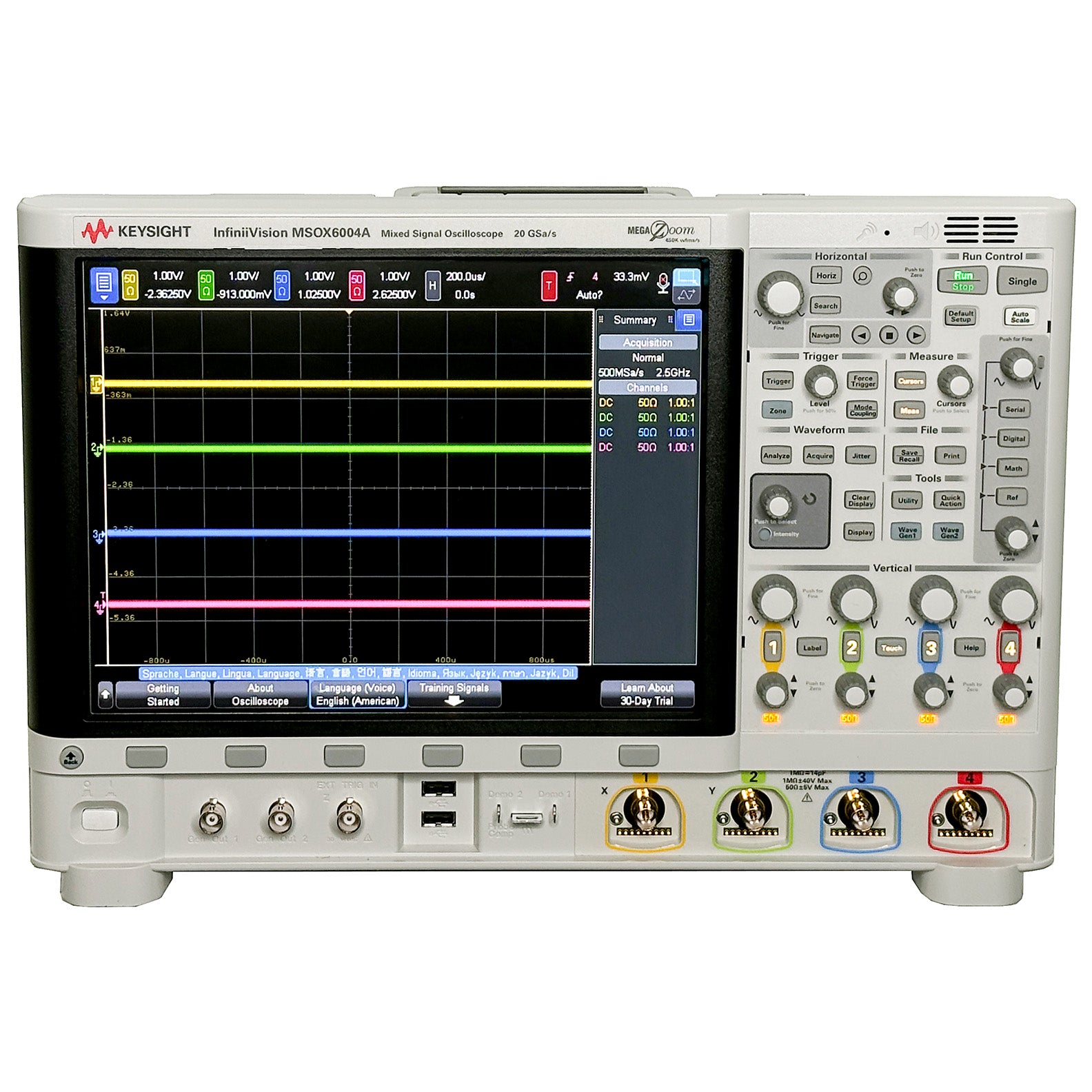

The InfiniiVision MSOX6004A oscilloscope combines price and performance to set a new standard in the portable oscilloscope world. Imagine a 2.5 GHz bandwidth oscilloscope that sees and triggers on everything, helps you visualize complex waveforms, and grows with your projects.

The InfiniiVision 6000 X-Series oscilloscopes are designed for the most demanding engineers who want bandwidth, visualization power, and the flexibility that comes with integrated capabilities — but with portability, a familiar embedded OS user interface, and an affordable price.

An oscilloscope’s bandwidth determines the maximum frequency content it can acquire and visualize. In today’s budget-challenged environment, engineers frequently are forced to make compromises between more bandwidth and a limited budget. The MSOX6004A delivers the answer with an affordable 2.5 GHz bandwidth and an incredibly low noise floor of 210 µVrms at 1 mV/div to help you make the most accurate measurements.

The InfiniiVision 6000 X-Series’ 450,000 waveforms-per-second update rate coupled with the exclusive hardware-based zone touch trigger provides unprecedented visualization power to help you isolate your waveforms of interest. Add a whole new depth of “visualization” to your designs with features like the 12-inch multi-touch capacitive touch screen with gesture support, the first embedded-OS-oscilloscope optional jitter/real-time eye analysis, and standard histogram and color grade.

The 6000 X-Series has 7-in-1 integration, combining digital channels, serial protocol analysis, a built-in dual-channel waveform generator, frequency response analysis, built-in digital multimeter, and built-in 10-digit counter with totalizer. It also integrates multi-language voice control for the first time in an oscilloscope. It weighs only 6.8 kg, measures only 15.4 cm deep, and consumes only 200 W, making the 6000 X-Series the world’s most environmentally friendly multi-GHz portable oscilloscope.

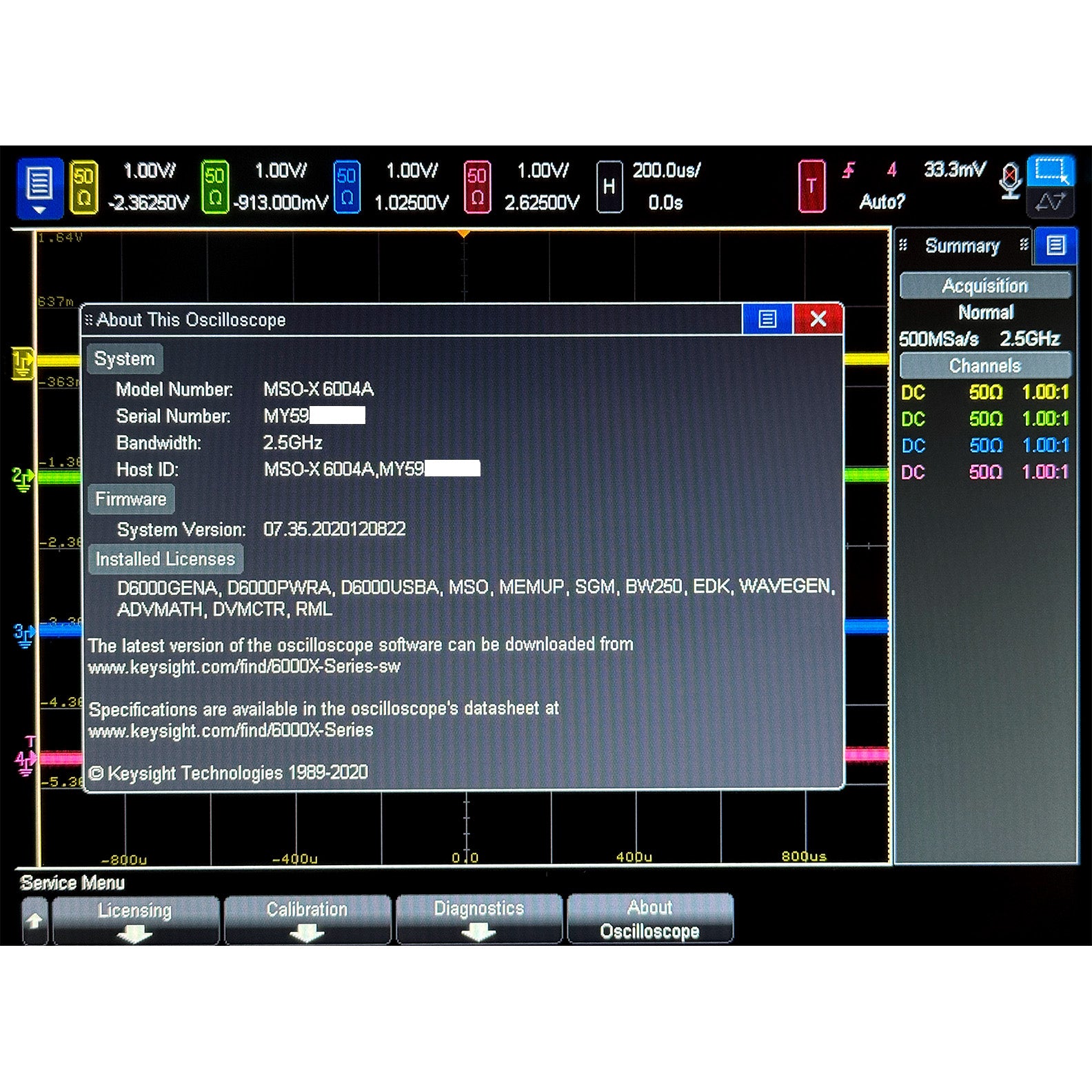

This unit includes the following licenses: D6000GENA, D6000PWRA, D6000USBA, BW250, WAVEGEN

Features:

• Bandwidth (upgradable): 2.5 GHz
• Analog Channels: 4
• Digital Channels: 16
• Maximum Sample Rate: 20 GSa/s
• Maximum Memory Depth: 4 Mpts
• Waveform Update Rate: > 450,000 wfms/sec
• Input Sensitivity Range: 1 MΩ - 1 mV/div to 5 V/div 2 (200 MHz bandwidth limit at ≤ 2 mV/div); - 50 Ω 1 mV/div to 1 V/div 2
• Input Impedance (Selectable): 1 MΩ ±1% (14 pF), 50 Ω ±3%
• Display: 12.1-inch, capacitive touch, gesture-enabled display
• Zone Touch Trigger: Standard
• Voice Control: Standard
• WaveGen 20-MHz Function/ Arbitrary Waveform Generator: Dual-channel AWG (option)
• Integrated Digital Voltmeter (standard)
• Integrated Hardware Counter (standard): 10-digit frequency, period, or totalizer counter
• Serial Protocol Analysis: (optional: I2C, SPI, UART/RS232, CAN/CANdbc/CANFD/LIN/LIN symbolic, SENT, FlexRay, I2S, MILSTD1553, CXPI, ARINC429, USB 2.0, Manchester/NRZ, USB PD)
• Segmented Memory: Standard
• Mask/Limit Testing: Option
• Histograms: Standard
• Power Analysis: Optional - Included
• USB 2.0 Signal Quality Test: Optional- Included
• HDTV Analysis: Optional
• Advanced Waveform Math: Standard

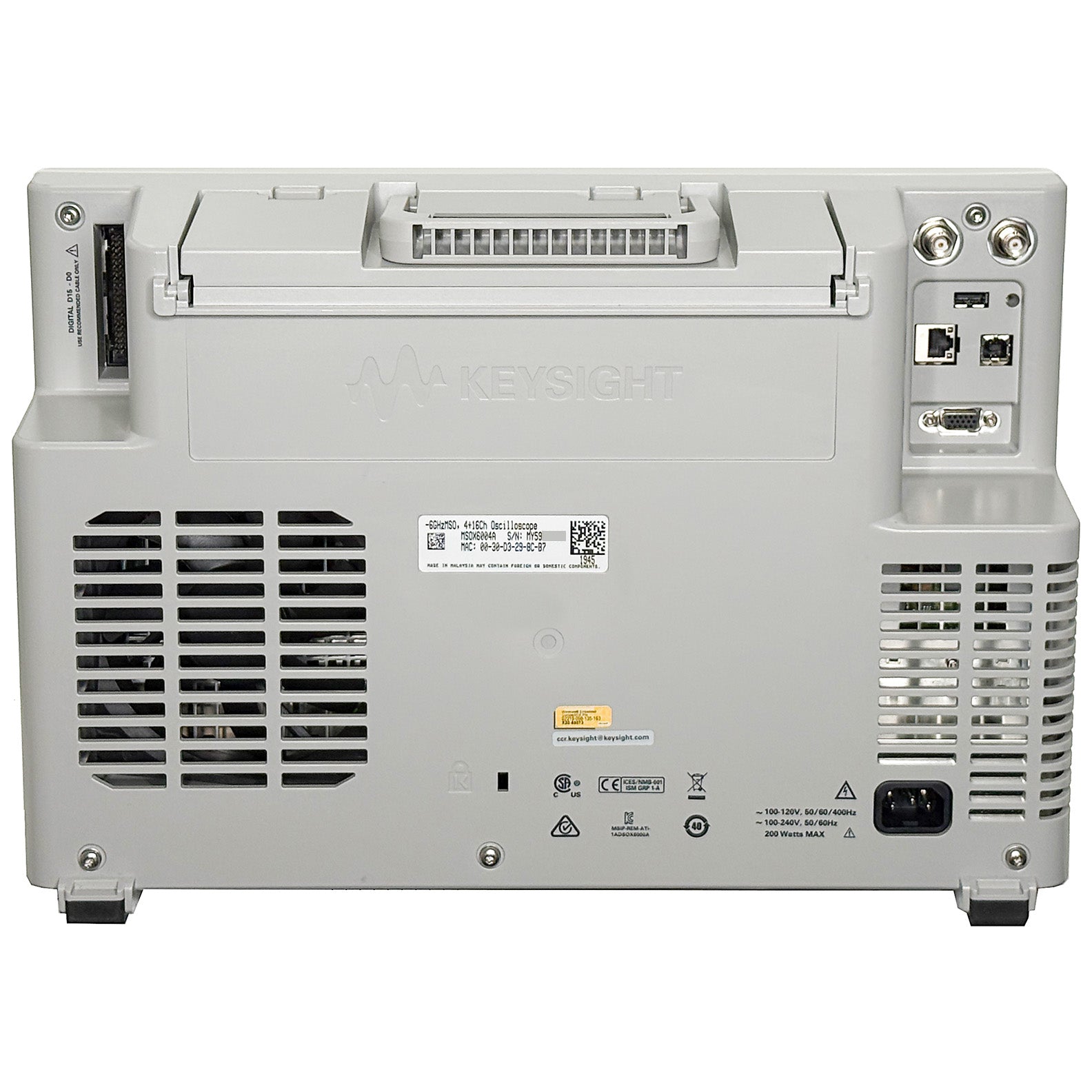

• Connectivity: Standard USB 2.0, LAN, video out (GPIB optional)
• Dimensions 425 mm W x 288 mm H x 148 mm D
• Weight: Net: 6.8 kg (15 lbs.), Shipping: 11.3 kg (25 lbs.)

Please see the Datasheet for complete details and specifications.
