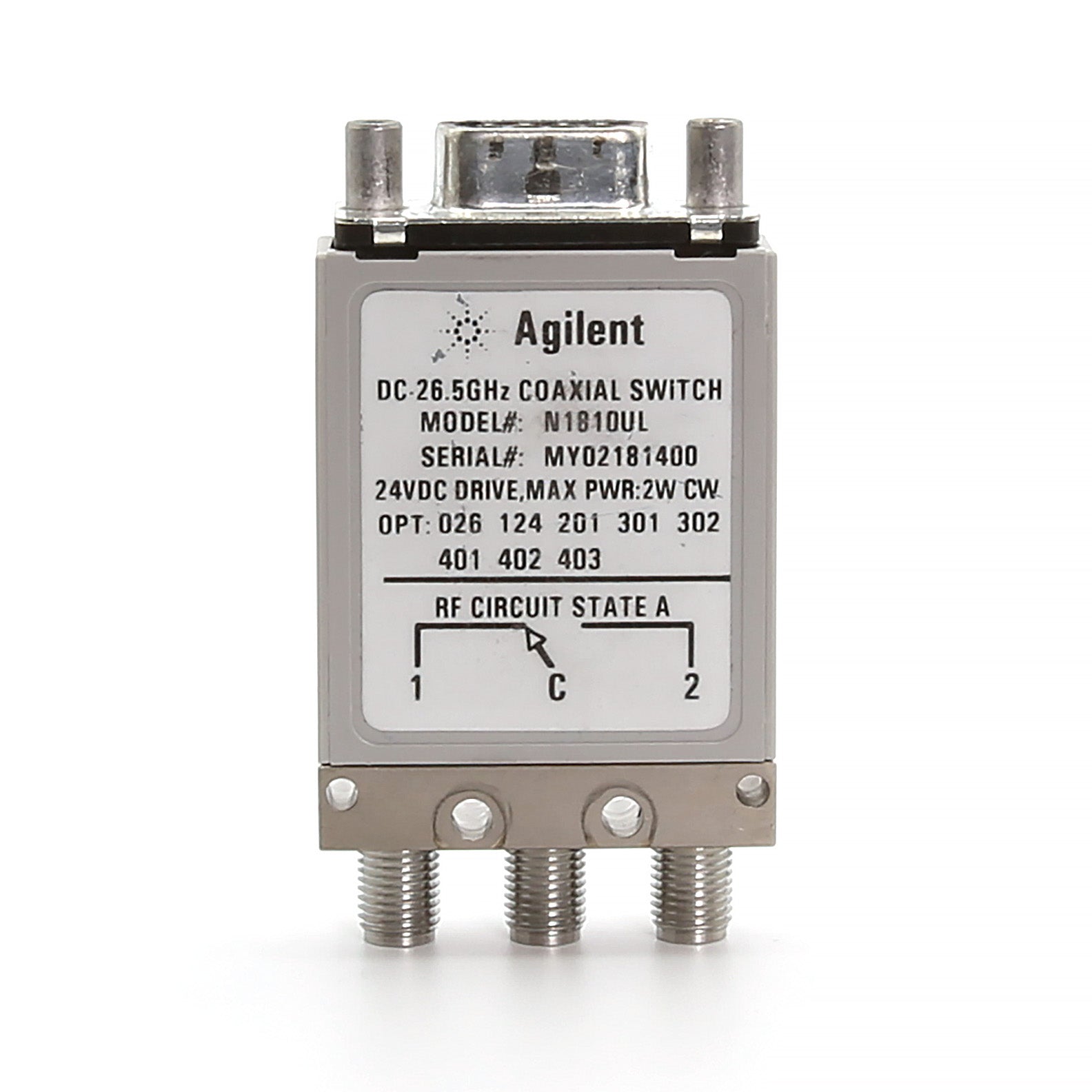

Keysight / Agilent N1810UL Coaxial Switch, SPDT

Keysight / Agilent N1810UL 026 124 201 301 302 401 Coaxial Switch, DC to 26.5 GHz, SPDT

The N1810UL is a single-pole double-throw switch with a frequency range from DC to 26.5 GHz. In precision measurements and monitoring applications where insertion loss repeatability is crucial, these switches operate in excess of 2 million cycles with better than 0.03 dB of insertion loss repeatability at 25°C up to 1 million cycles.

• Options:
  • Option 026 = DC to 26.5 GHz
  • Option 124 (standard) = 24 Volts
  • Option 201 (standard) DC Connector Type = "D" subminiature 9 pin female
  • Option 301 = High isolation
  • Option 302 = Low standing wave ratio and insertion loss
  • Option 401 = TTL/5V CMOS compatible drive

Features:

• Frequency Range: DC to 26.5 GHz
• Unterminated single pole double throw EM switch
• Female SMA connectors
• Built-in current interrupt
• Low SWR: <1.15 at 4 GHz, 1.60 at 26.5 GHz, and 1.80 at 26.5 GHz
• Low insertion loss: <0.26 dB at 4 GHz, 0.62 dB at 26.5 GHz, and 1.0 dB at 26.5 GHz
• Excellent RF repeatability & long life span
• Excellent insertion loss repeatability: 0.03 dB to 1 million cycles and 0.1 dB to 2 million cycles
• Long operating life of 2 million cycles
• Coil voltage levels 5 V, 15 V or 24 V
• D-subminiature 9-pin connectors or solder lug terminals

Please see Datasheet for complete details and specifications.
