Keysight / Agilent N2111A Rack Mount Kit for 6000 X-Series Oscilloscopes

Keysight / Agilent N2111A Rack Mount Kit for 6000 X-Series Oscilloscopes

The N2111A is a rack mount kit for 6000 X-Series oscilloscopes. The rack mount kit provides a support shelf and hardware for mounting Keysight 6000 X-Series Oscilloscopes into Electronic Industries Association (EIA) standard 19-inch (487-mm) rack cabinets. The N2111A rack mount kit requires 7U of vertical rack space.

Contains:

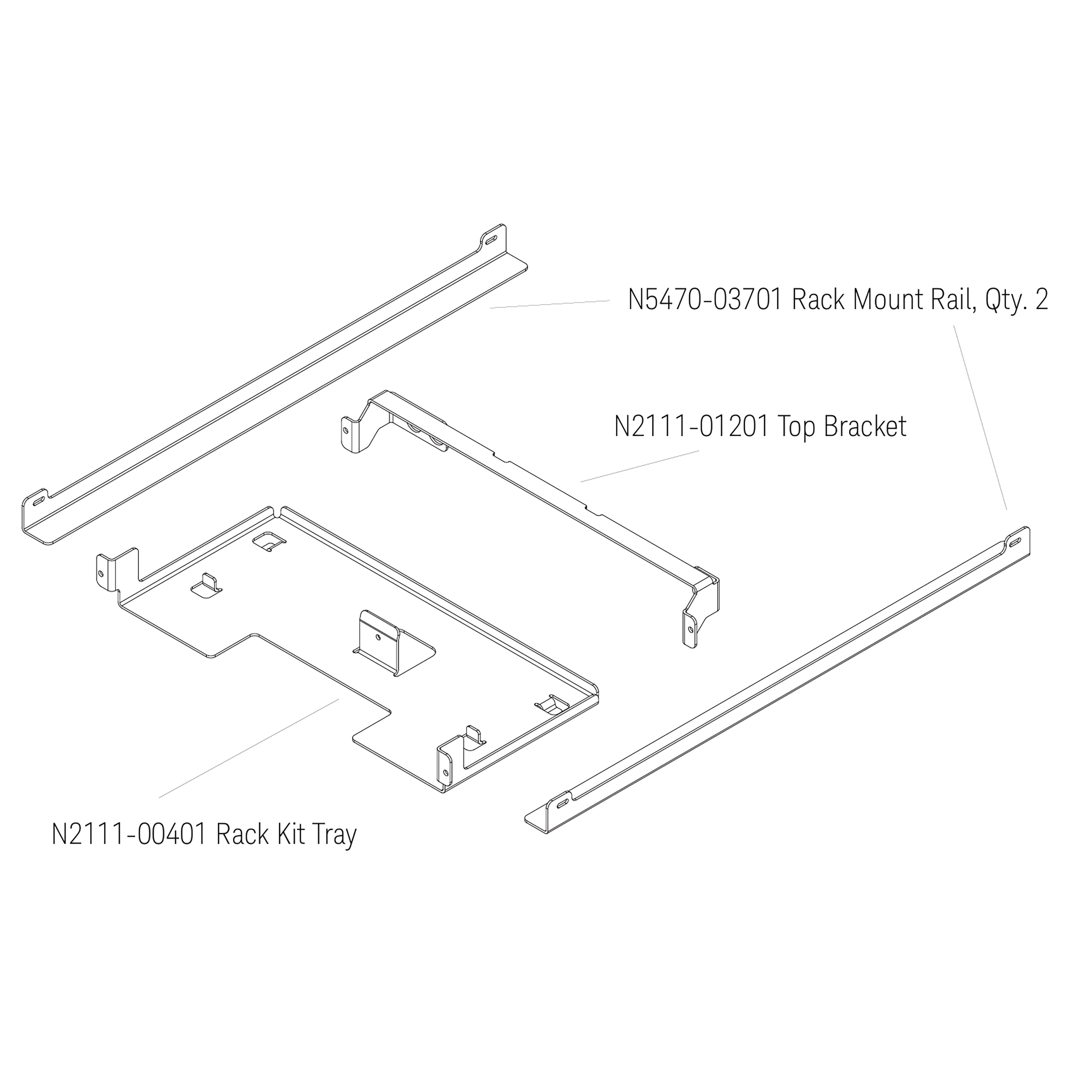

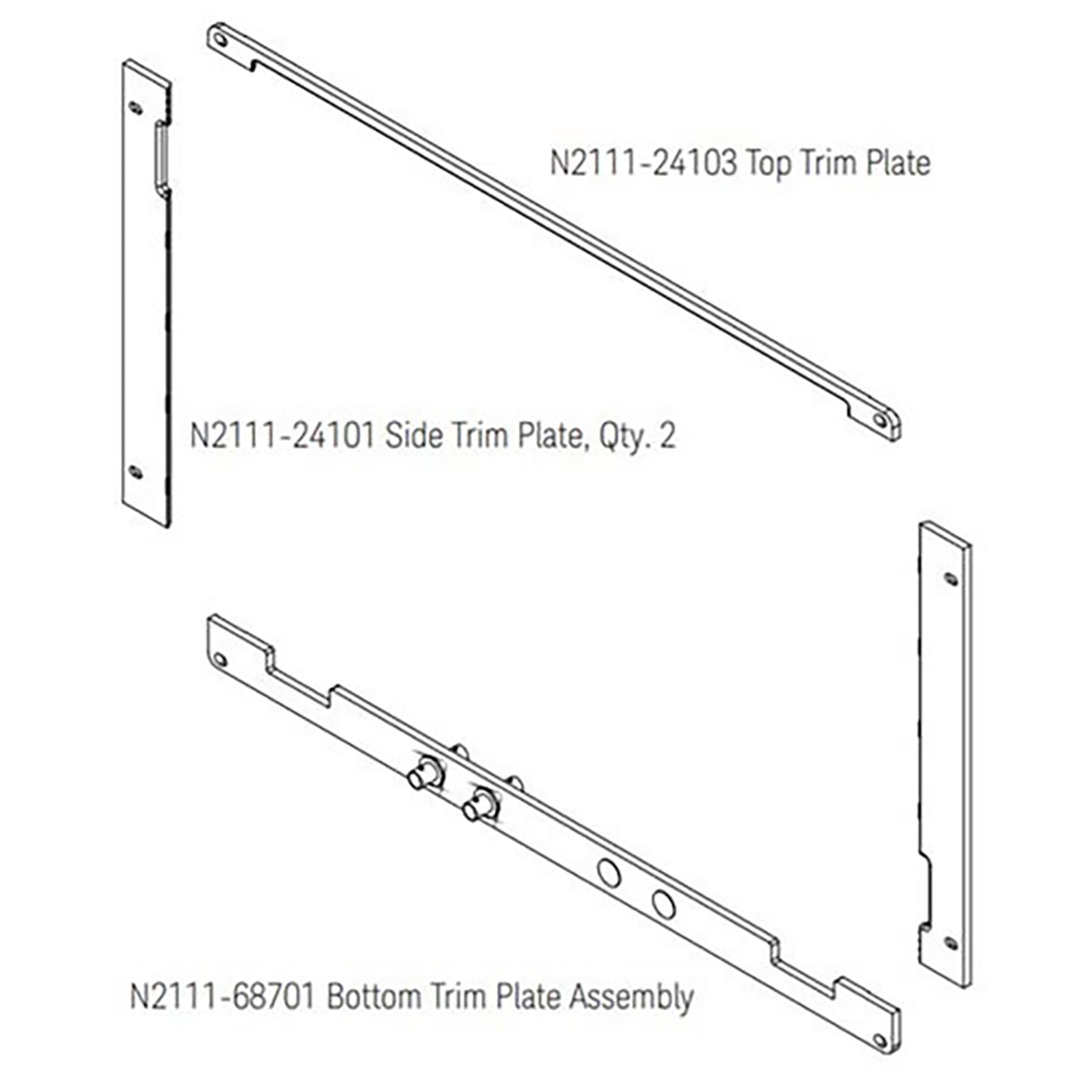

• Rack kit tray, Top bracket, 2x rail, rack mount, 2x side trim plate, Top trim plate, Bottom trim plate assembly, 3x (screw, machine, pan head, with washer, Torx T20 M4 x 0.7, 18mm), 4x (screw, machine, pan head Philips, 10-32 x 0.5in), 12x Nut, sheet metal, 10-32 x 0.5, 8x (screw, special, pan head, Philips, 10-32 x 0.625in).
