Description

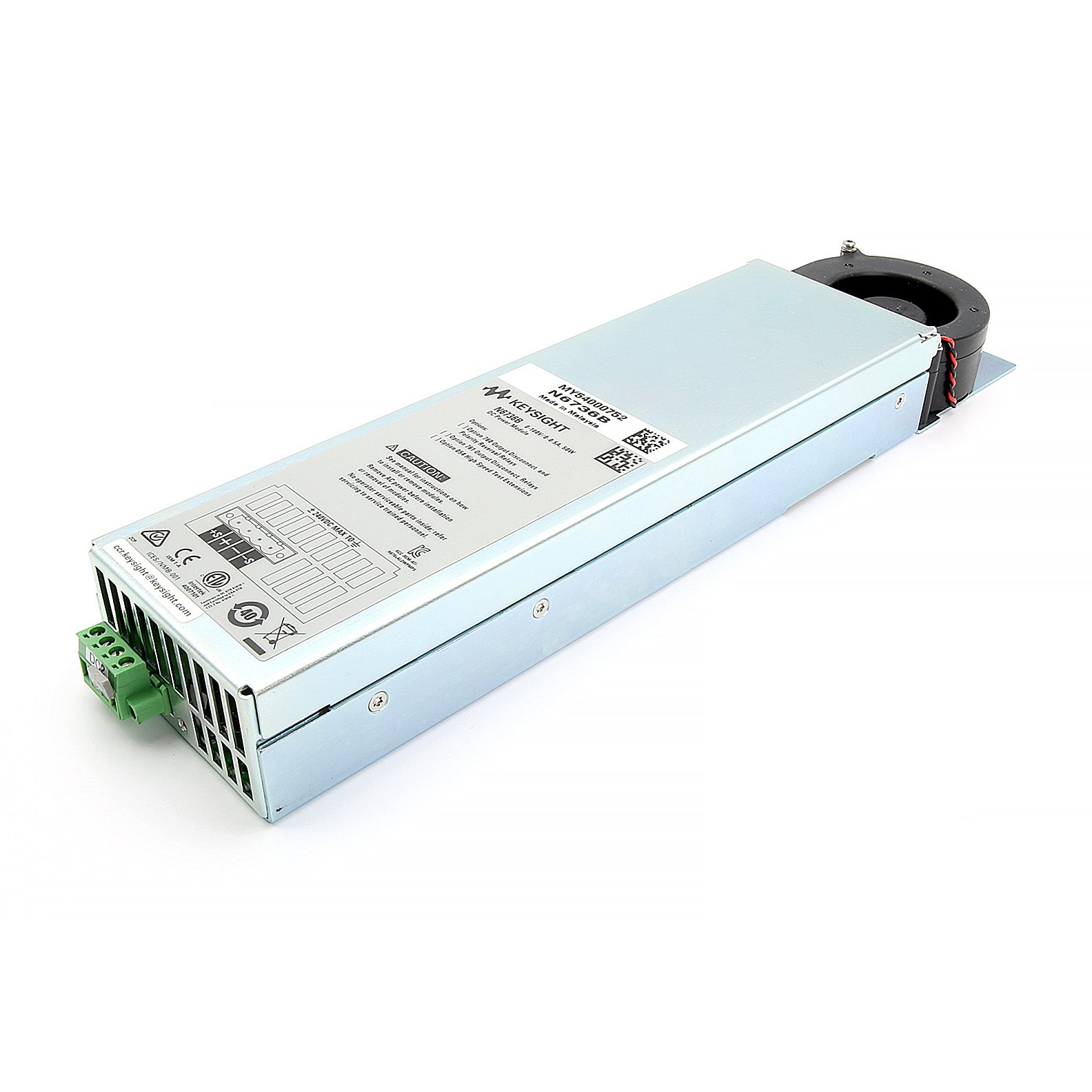

Keysight / Agilent N6736B DC Power Module, 0 to 100 Vdc, 0 to 0.5 A, 50 W
The Agilent N6736B is a 50 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.
This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard.
Features:
-
Output ratings
- Voltage: 100 V
- Current: 0.5 A
- Power: 50 W
-
Programming accuracy (at 23°C ±5°C)
- Voltage: 0.1% + 100 mV
- Current: 0.15% + 10 mA
-
Ripple & noise (20 Hz to 20 MHz)
- Voltage rms: 18 mV
- Voltage peak-to-peak: 30 mV
Please see Datasheet for complete details and specifications.
