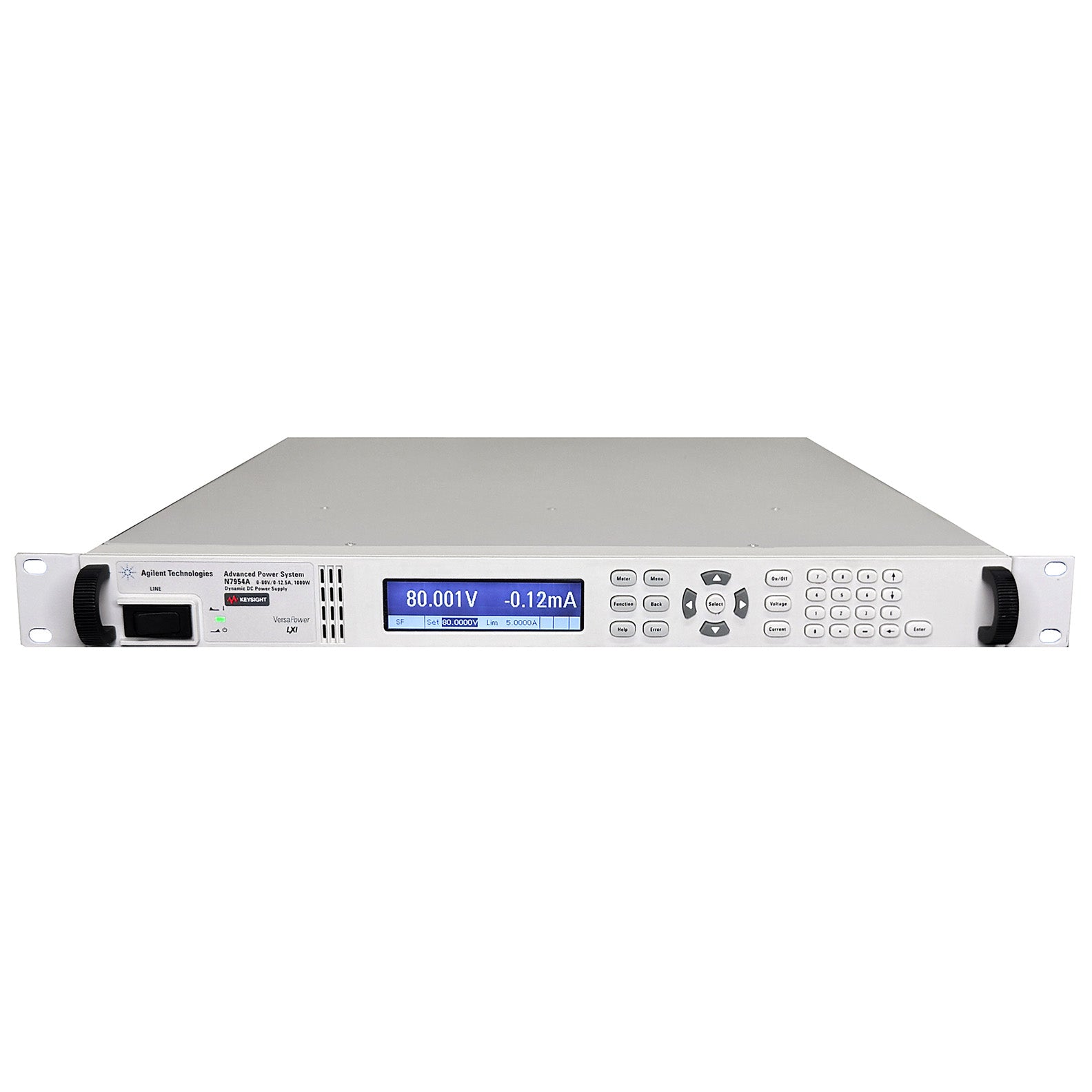

Keysight / Agilent N7954A Advanced Power System - Dynamic DC Power Supply, 80 V, 12.5 A

Keysight / Agilent N7954A Advanced Power System - Dynamic DC Power Supply, 80 V, 12.5 A

The N7954A is a 1 kW system power supply providing a new level of power supply performance. The Advanced Power System (APS) family was designed with VersaPower architecture to help you overcome your toughest power test challenges by delivering industry-leading specifications and innovative features in an integrated solution for today’s advanced ATE power testing needs. VersaPower architecture delivers the fastest, most accurate, integrated power system. • Accelerate test-system throughput with industry-leading speed • Capture your DUT’s current profile with accurate measurements • Reduce your ATE development time and cost with highly integrated capabilities

Get lots of power in a small test-system footprint Two power ranges deliver a large amount of power in a small test-system footprint: • 1 kW models have a 1U full-rack footprint • 2 kW models have a 2U full-rack footprint • Both power ranges have built-in paralleling capability of up to 10 kW

Features:

• Output Ratings
  • Voltage: 80 V
  • Current: 12.5 A
  • Power: 1000 W
• Voltage and current programming: 16-bit precision
• Voltage and current measurements: 18-bit precision
• Voltage up / down programming time: 0.5 ms / .35 ms
• Transient response time (recovery time) 100 us
• Fast up and down programming speeds (up to 500 μs)
• Fast command processing (< 2 ms)
• List capability to step through a list of voltage or current levels
• Seamless ranging capability for fast current measurements without sacrificing accuracy
• Full two-quadrant glitch-free operation across quadrants
• Voltage and current limit settings to keep your device within its operating range
• Smart triggering
• Fast output response
• Output disconnect relays
• Watchdog timer
• 18-bit high-resolution current digitizer
• Adjustable measurement sample rate
• External logging capability
• Peak triggering and measurements
• AWG capability
• Step function capability
• High bandwidth mode
• High-resolution current and voltage digitizers
• Pre- and post-triggering for capturing measurement data
• Large current range that is over 2x the rated output of the power supply
• Fast transient response to ensure minimal voltage droop to load transients
• High and low output bandwidth settings for tuning the output to your load
• Built-in Black Box Recorder
• Records voltage, current, power, trigger events, mode changes, and more in non-volatile memory
• Sequencing capability across multiple APS supplies
• Sequencing capability with Keysight’s N6700 modular power supply family
• Adjustable slew rate control

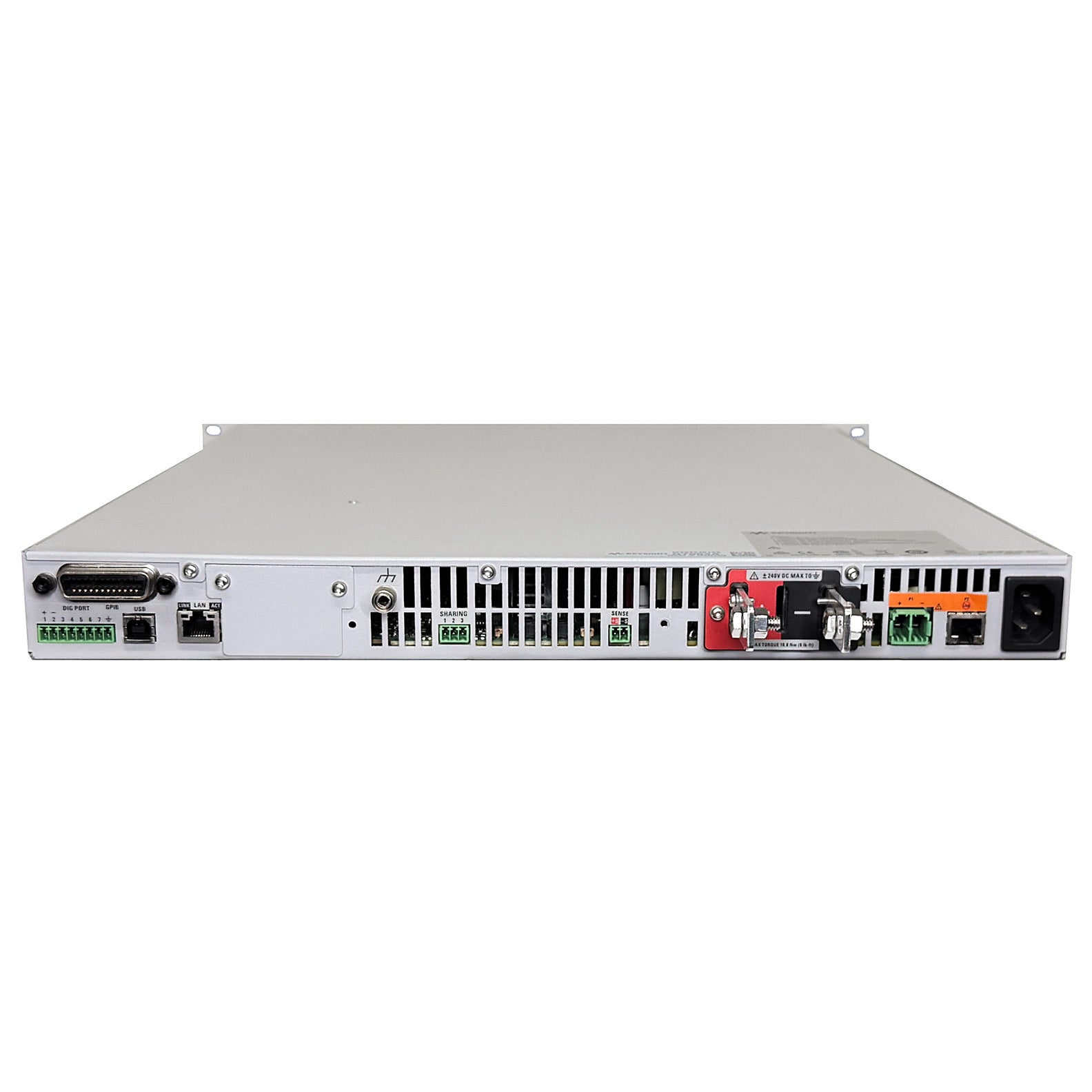

• LAN (LXI Core), USB, GPIB, and analog interfaces are all standard
• AC input Voltage range: 100 to 240 VAC ±10%, 50, 60, 400 Hz, 3-Phase *Input below 180 Vac cannot supply enough current to power the 1 kW N7900 models to their full-rated output power. In such cases, when an APS power supply is connected to below 180 VAC AC mains, the power supply will still operate normally, but its maximum output power will be limited to 700 W. In this condition, if the power supply exceeds 700 W of output power, the instrument turns off the output and sets the CP+ status bit.
• Weight: 10.9 kg (24 lbs); Size: L 22.39 in / 568.7 mm, W 16.81 in / 426.9 mm, H 1.75 in / 44.45 mm

Please see Datasheet for complete details and specifications.
