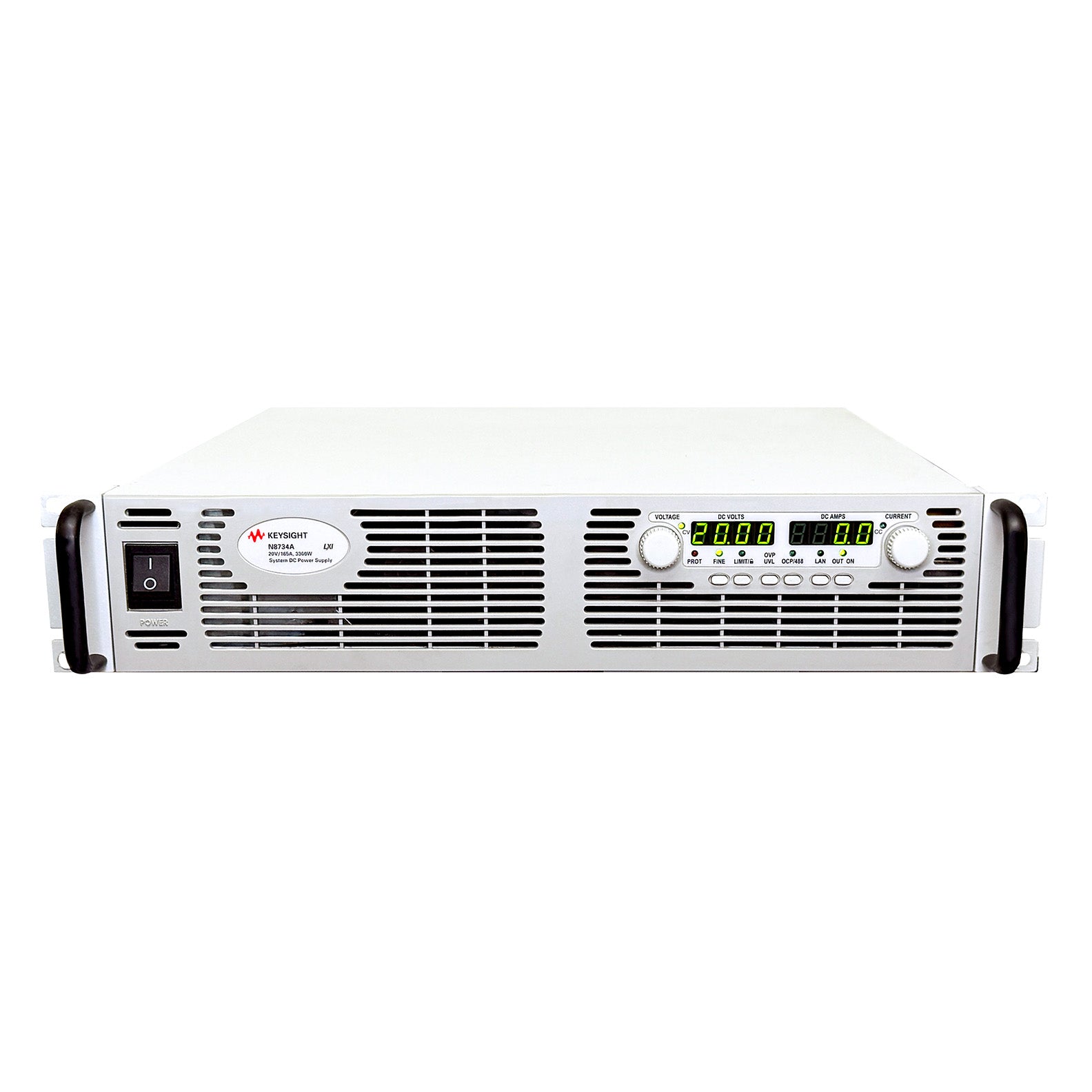

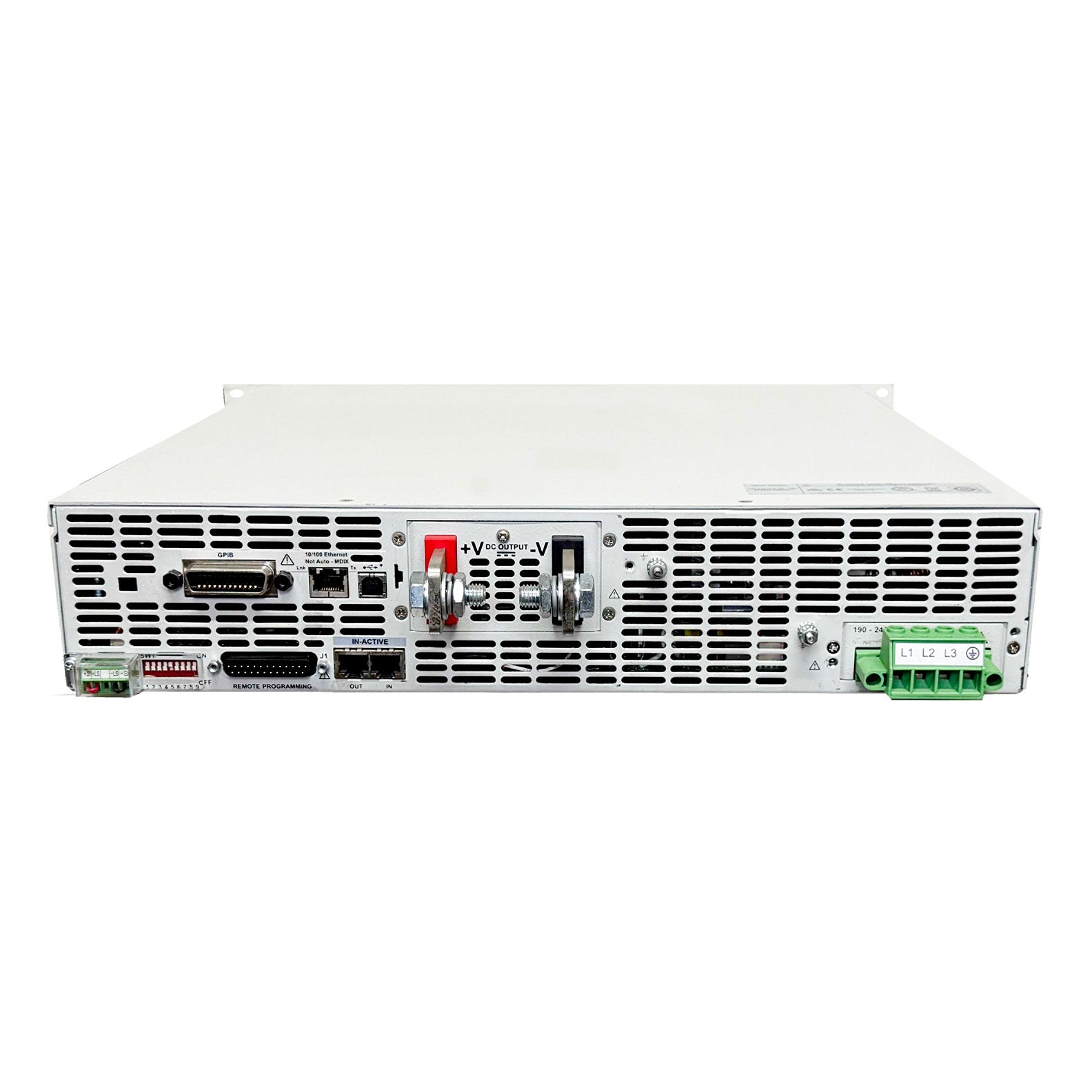

Keysight / Agilent N8734A Autoranging System DC Power Supply, 0 to 20 Vdc, 0 to 165 A, 3300 W

Keysight / Agilent N8734A Autoranging System DC Power Supply, 0 to 20 Vdc, 0 to 165 A, 3300 W

The N8734A is a 3.3 kW autoranging, single-output programmable DC power supply delivering high current with low noise in a compact two unit package. Airflow moves front to back, so no additional space is required above or below the power supply in your automated test equipment (ATE) rack.

Features:

• Output Ratings
  • Voltage: 20 V
  • Current: 165 A
  • Power: 3300 W
• Programming accuracy
  • Voltage: 0.05% + 10 mV
  • Current: 0.1% + 330 mA
• Built-in voltage and current measurement
• High power density, 3.3 kW in a 2U package
• Protection from over-voltage, over-current, and over-temperature
• LAN (LXI Core), USB, GPIB, and analog interfaces are all standard
• AC input Voltage range: 208 VAC ±10%, 45 to 65 Hz, 3-Phase

Please see Datasheet for complete details and specifications.
