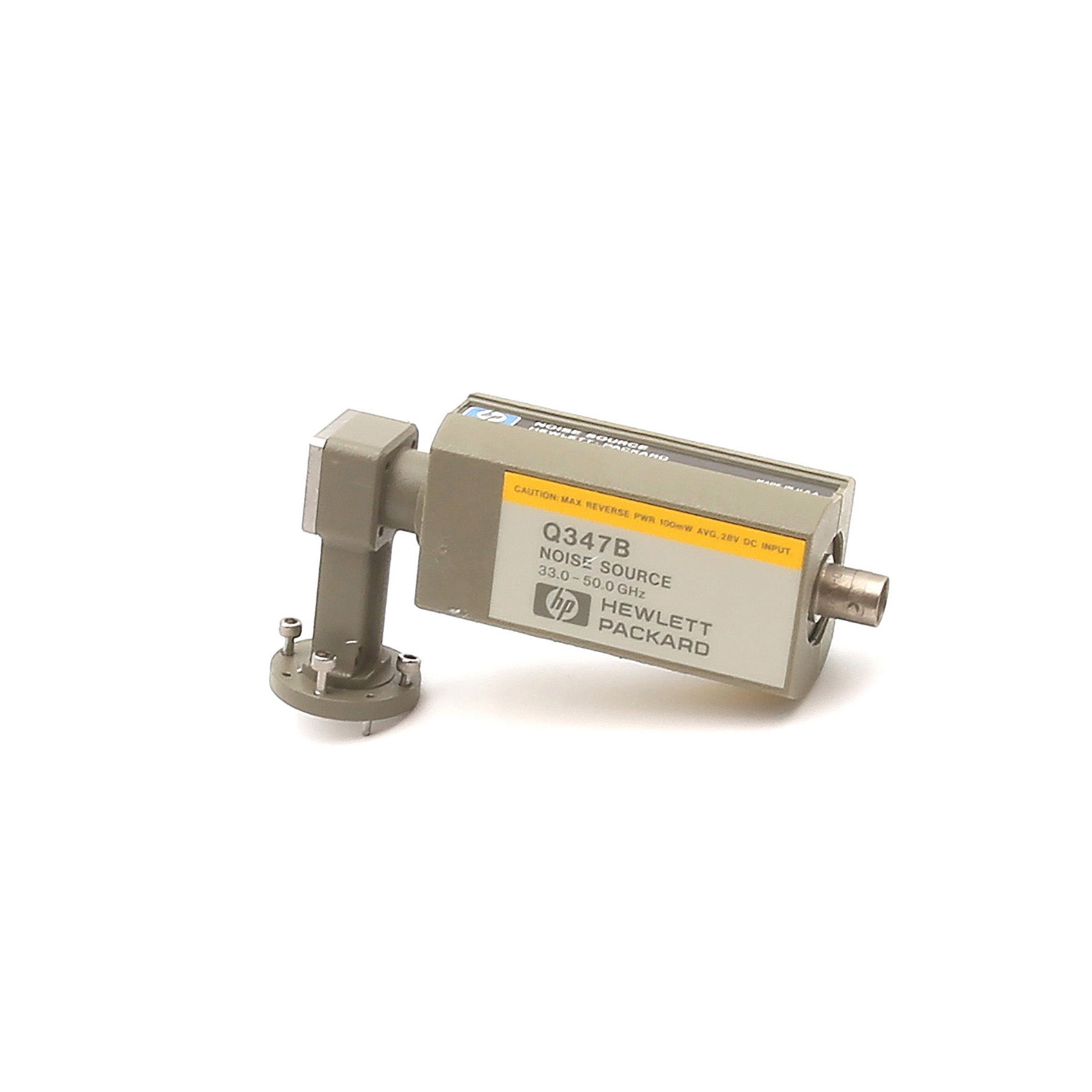

Keysight / Agilent Q347B Millimeter-Wave Noise Source, 33 to 50 GHz
The Q347B is a Millimeter-Wave Noise Source covers a 33 to 50 GHz frequency range. This waveguide noise source allows you to make accurate and convenient noise figure measurements on millimeter-wave devices. The Q347B provides highly precise broadband noise at the input of the system or component under test. The noise figure meter then processes the ON/OFF ratio of noise power present in the system IF, and provides an accurate reading of noise figure and gain. The Q347B noise source has remarkable ENR stability over time, which allows longer recalibration cycles and more accurate noise figure measurements.
- Frequency range 33 to 50 GHz
- Excess noise ratio (ENR) range: 10 to 13 dB, 33 to 42 GHz; 6 to 12.5 dB, 42 to 50 GHz
- Maximum SWR (reflection coefficient) Source off: <1.57 (0.22); Source on: <1.46 (0.19)
- Power required 28 V ±1 V (automatically supplied by the Keysight 8970B noise figure meter
- Flange: UG-383/U
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
