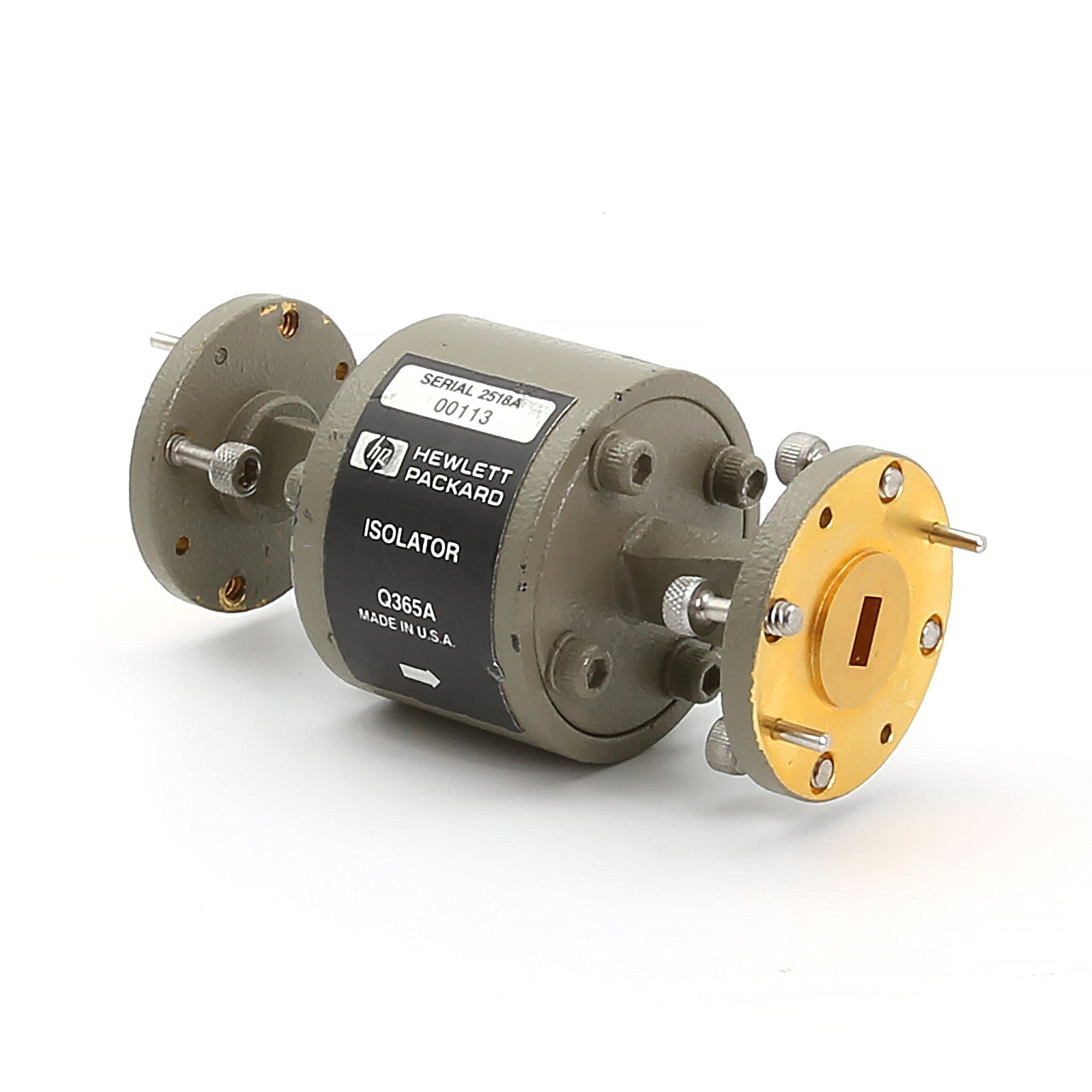

Keysight / Agilent Q365A Waveguide Isolator, 33 to 50 GHz, WR-22

Keysight / Agilent MPN: Q365A
REFURBISHED & TESTED 6-MONTH WARRANTY ALSO AVAILABLE FOR RENT

Price:
Sale price$395.00 USD
Stock:
In stock - Ships in 1 to 2 Business Days

Description

Keysight / Agilent Q365A Waveguide Isolator, 33 to 50 GHz, WR-22

The Q365A is an ideal isolator for test and measurement applications. Its high, broadband isolation (better than 25 dB) minimizes the reflection effects of a source. Its low SWR and low insertion loss helps to improve accuracy without the attenuation of matching pads.

This isolator uses a Faraday-rotation design. It consists of a section of waveguide containing low-loss ferrite material and impedance matching elements. A permanent magnet supplies the external magnetic bias field to the ferrite core.

Features:

  • Frequency range 33 to 50 GHz
  • Isolation: 25 dB (min.)
  • SWR: 1.4 dB (max.)
  • Insertion loss: 1.5 dB (max.)
  • Flange: UG-383/U
  • Shipping weight: 2 lb

Please see Datasheet for complete details and specifications.
