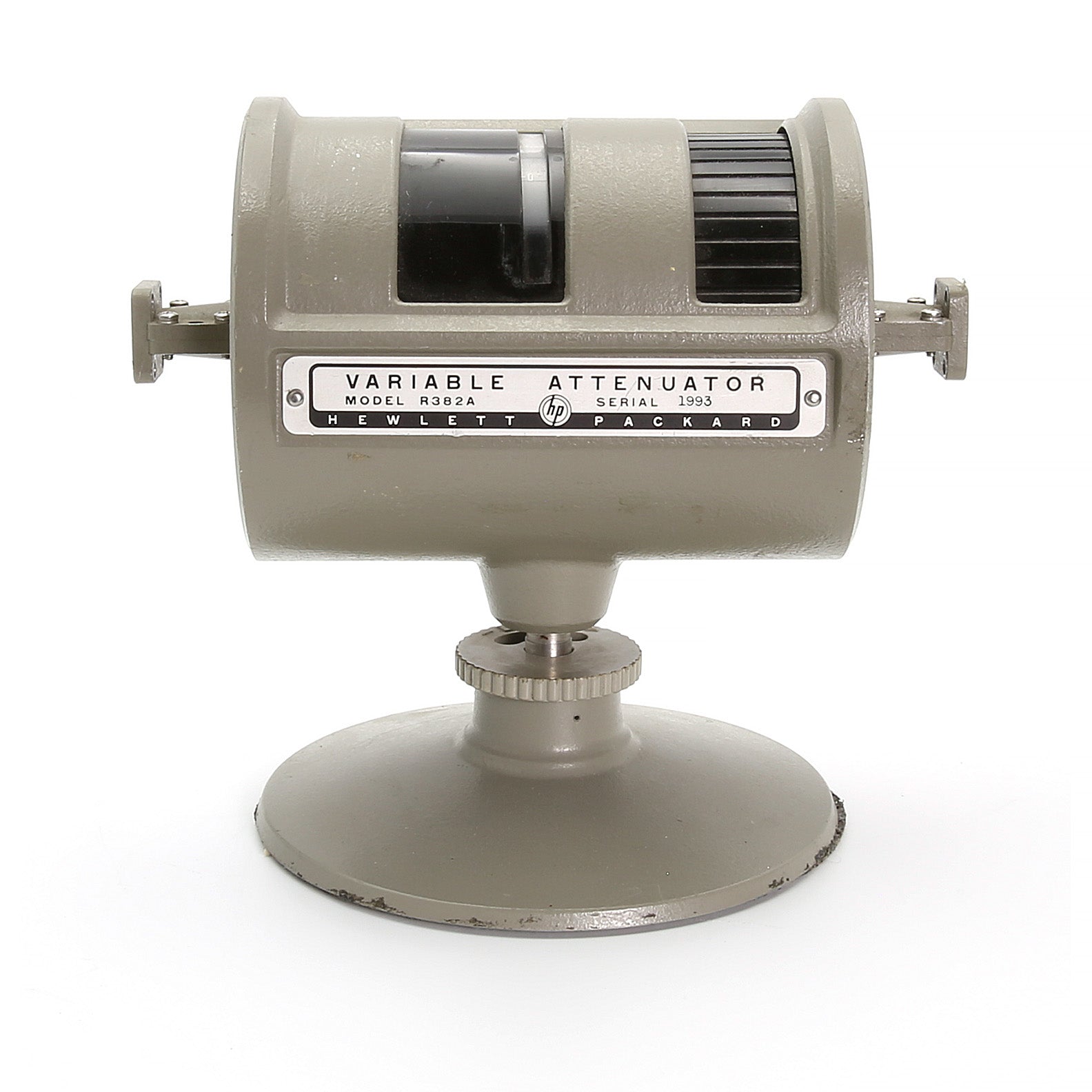

Keysight / Agilent R382A Waveguide Variable Attenuator, 26.5 to 40 GHz, 0 to 50 dB

Keysight / Agilent R382A Waveguide Variable Attenuator, 26.5 to 40 GHz, 0 to 50 dB

The R382A Variable Attenuator's attenuation value depends on the rotation angle of the resistive vane, rather than on the resistivity value of the attenuating material. Therefore, it is insensitive to changes in temperature and humidity which can affect the resistive card of ordinary adjustable flap attenuators. The attenuation value is highly accurate and is stable from 0 to 50 dB. The instrument features large, easy-to-read dials, and can handle considerable microwave power.

Features:

• Attenuation range: 0 to 50 dB
• Frequency Range: 26.5 to 40 GHz
• Insensitive to changes in temperature and humidity
• Maximum SWR: 1.5
• UG-599/U flanges
• Shipping weight: 6 lb

Please see Datasheet for complete details and specifications.
