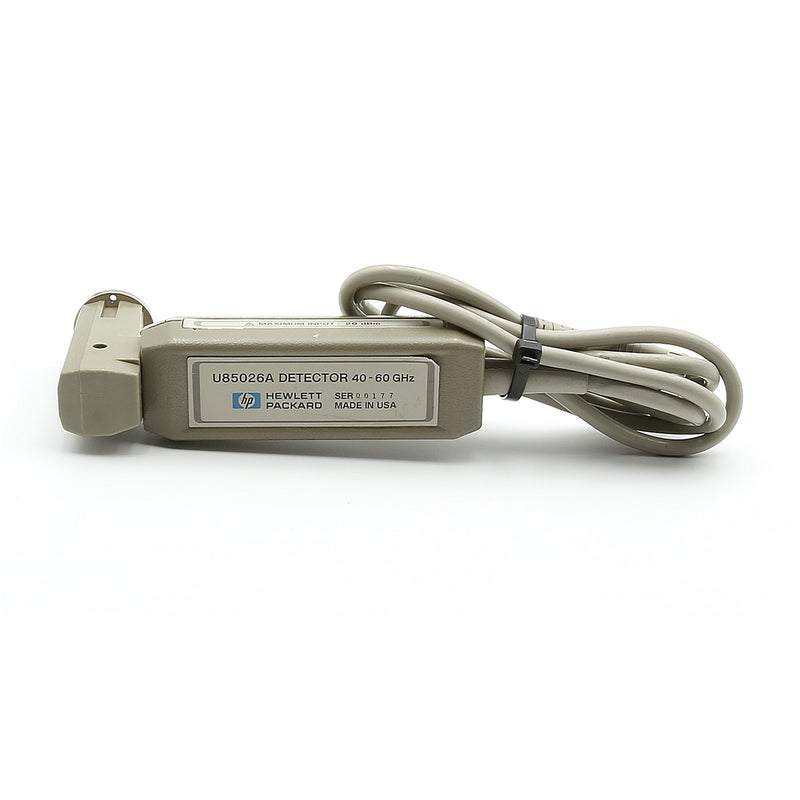

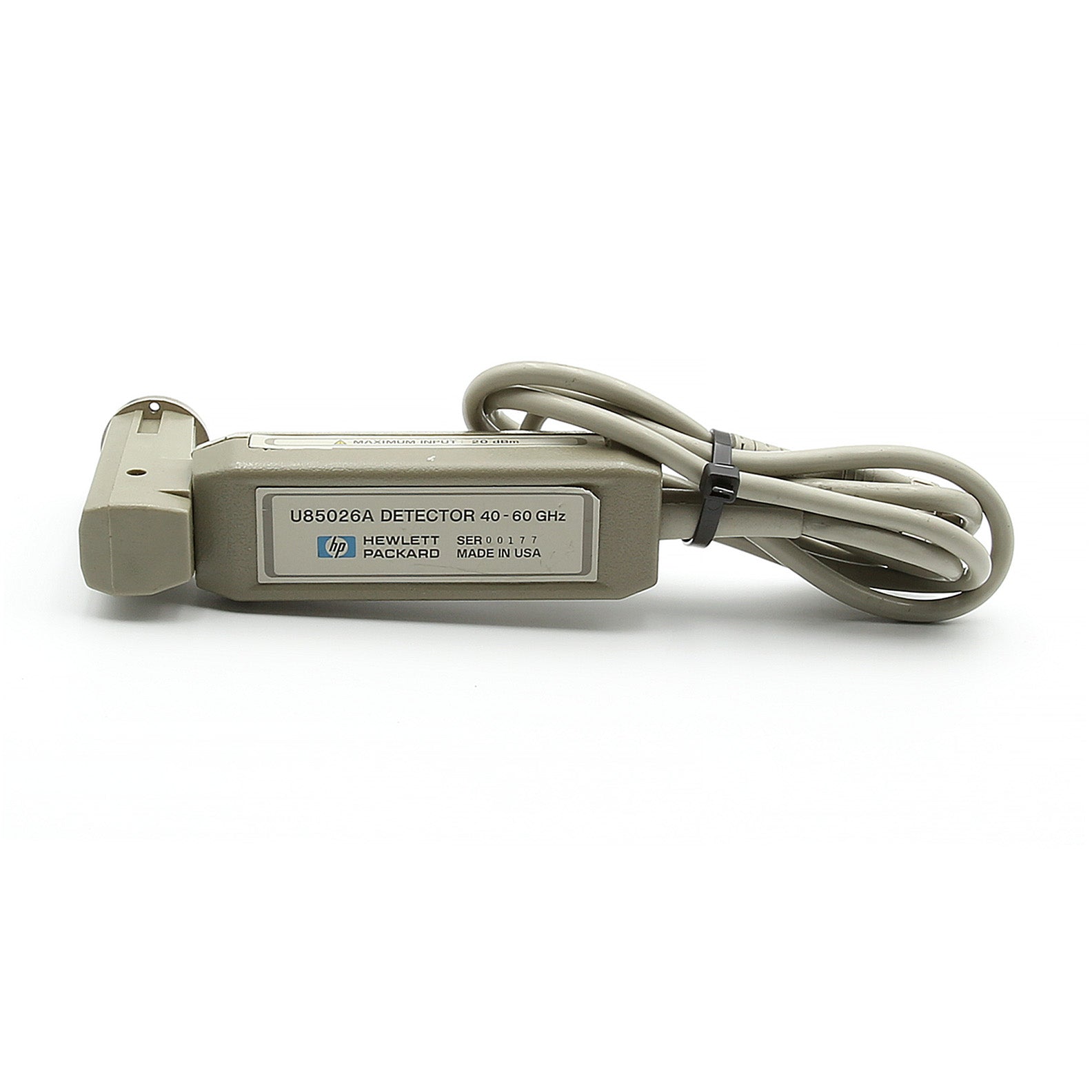

Keysight / Agilent U85026A Waveguide Detector, 40 to 60 GHz, WR-19
The U85026A waveguide detector offers a frequency range of 40 to 60 GHz and is for use with the Keysight 8757 only in either ac or dc detection mode.
- Frequency Range: 40 to 60 GHz
- AC Mode: +10 to -50 dBm
- DC Mode: +10 to -45 dBm
- Return Loss: 12 dB
- Frequency Response: ±2.0 dB
- Dynamic Accuracy: Plus/Minus (0.3 dB + 0.03 dB/dB)
- Connector Type: WR-19
Please see Datasheet for complete details and specifications.
