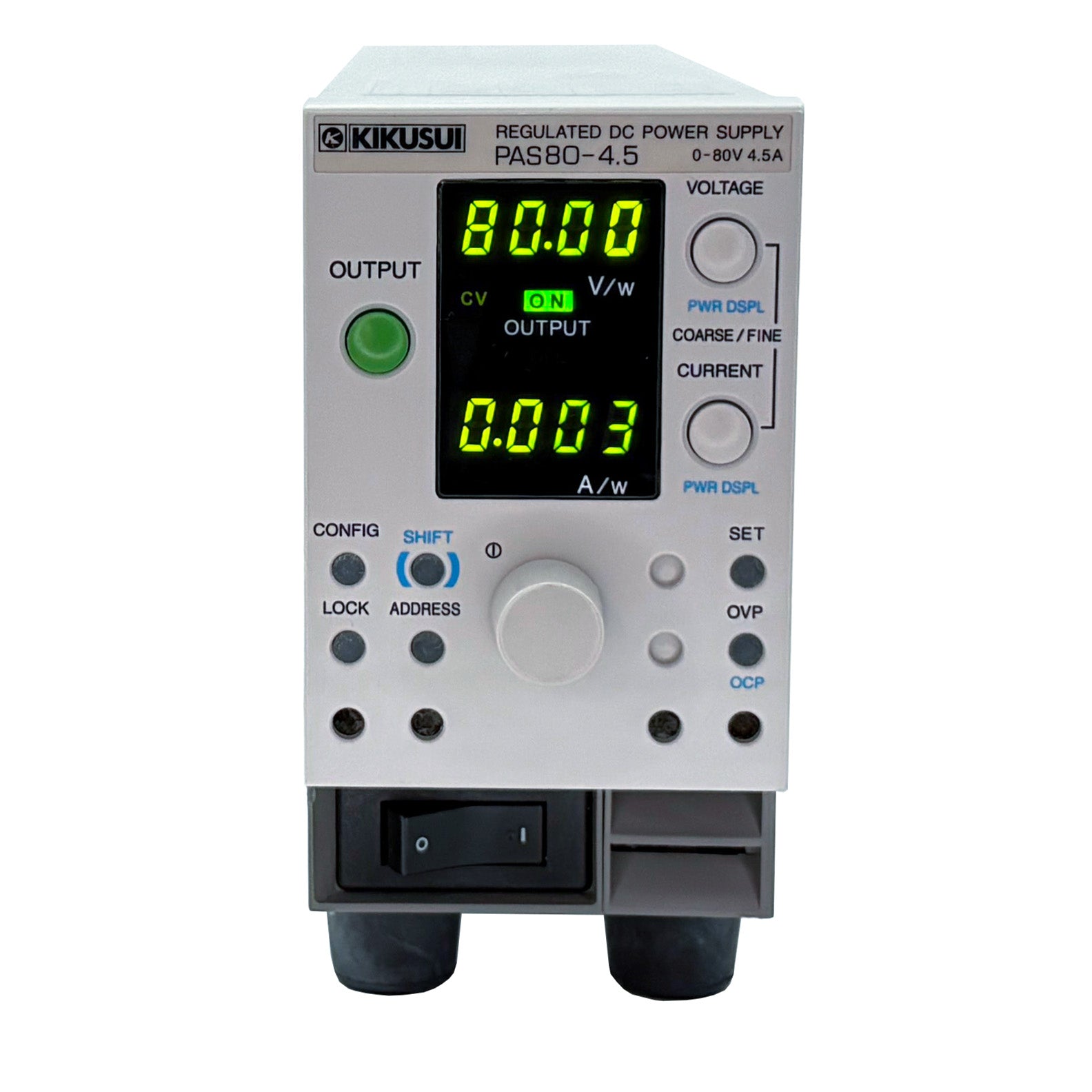

Kikusui PAS80-4.5 DC Power Supply, 0 to 80 Vdc, 0 to 4.5 A

Kikusui PAS80-4.5 DC Power Supply, 0 to 80 Vdc, 0 to 4.5 A

The Kikusui PAS80-4.5 is a sophisticated variable-switching DC power supply. The PAS Series incorporates a high-efficiency switching circuit and a power-factor correction circuit to meet the needs of today's users. The PAS power supply is controlled with a multifunction dial and features a high-brightness four-digit indication display unit. Display digits provide readings down to 10 mV/1 mA, and an output power (W) display function is also provided. The result is improved operability and visibility.

Features:

• Output: 0 to 80 Vdc, 0 to 4.5 A
• Equipped with a power-factor correction circuit
• High power conversion efficiency of 75% (TYP.)
• Equipped with digital communication functions
• Output voltage and current can be controlled using external resistance
• Four-digit indication display unit
• Multifunction dial
• 100 to 240 Vac (85 to 250 Vac), single phase; 47-63 Hz; single phase operation
• Weight: 13.23 lb; Size: 150 mm (5.91 in)H x 71 mm (2.8 in)W x 420 mm (16.53 in)D

Please see Datasheet for complete details and specifications.
