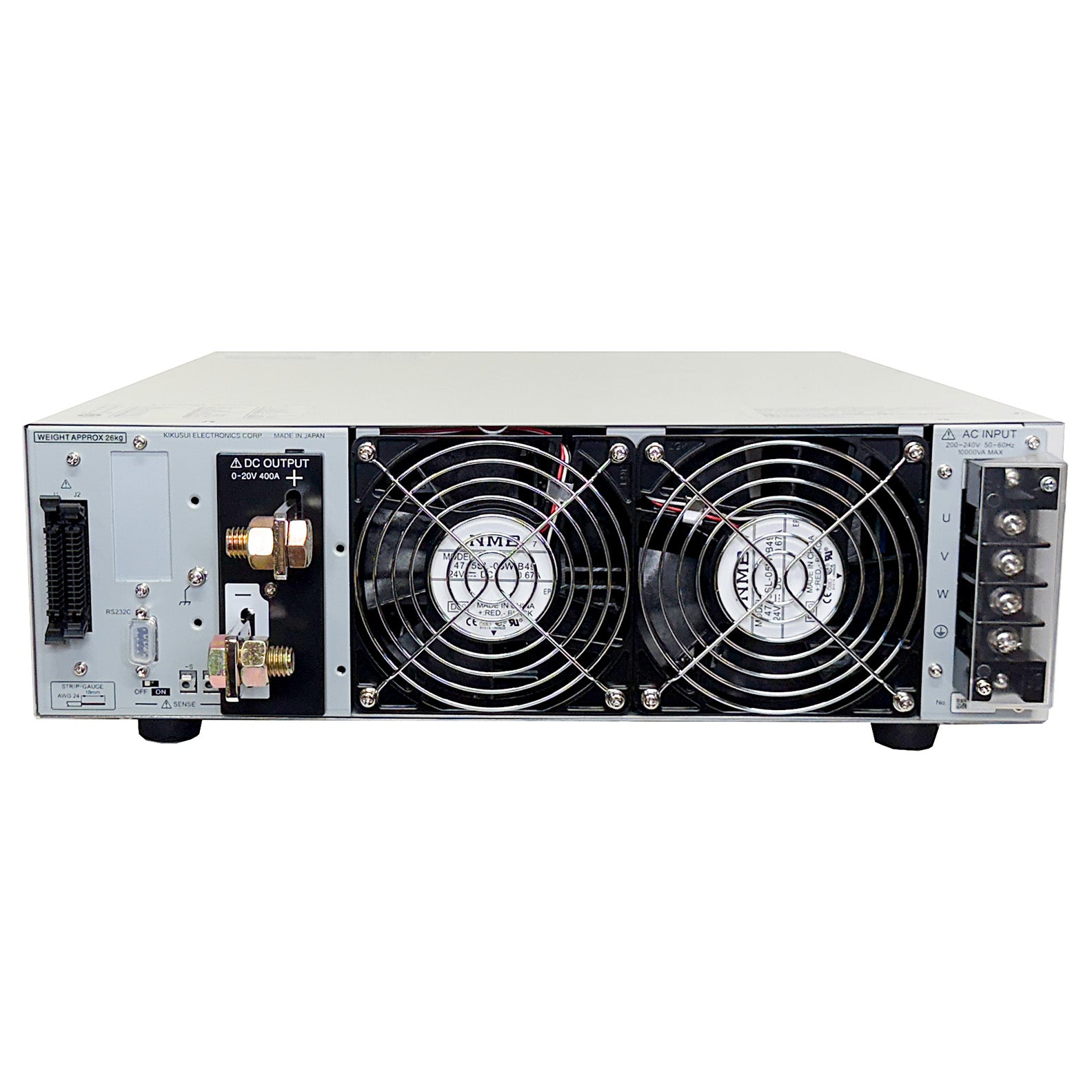

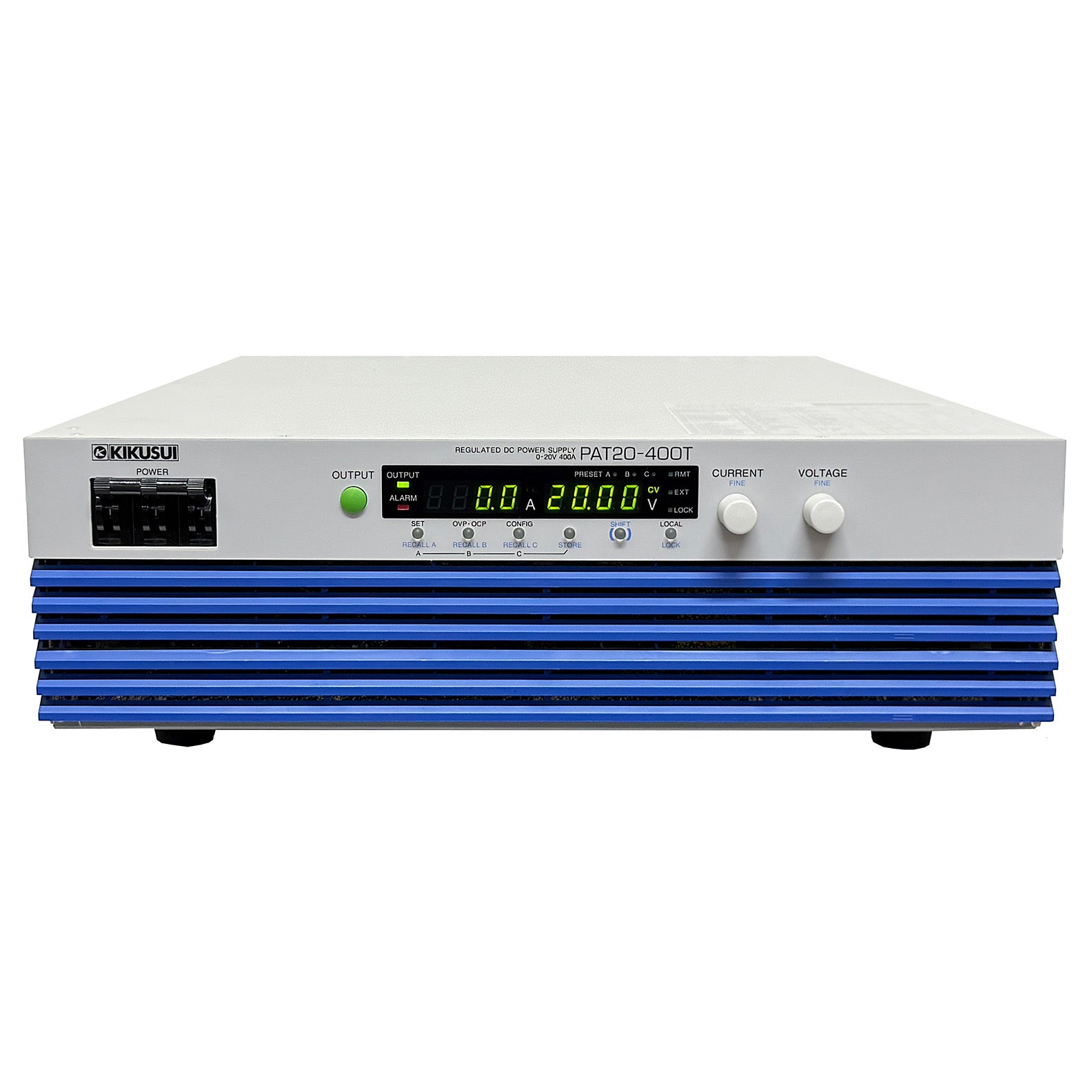

Kikusui PAT20-400T Programmable DC Power Supply, 0 to 20 Vdc, 0 to 400 A

Kikusui PAT20-400T Programmable DC Power Supply, 0 to 20 Vdc, 0 to 400 A

The Kikusui PAT20-400T is a CV/CC auto-shifting DC power supply featuring excellent efficiency and low noise thanks to a soft-switching system design. The PAT-T series is equipped with state-of-the-art high-density packaging technology, enabling extremely high power capacity while reducing chassis size and weight. A built-in “power factor correction circuit” greatly reduces noise and suppresses harmonic currents, creating an optimal electronic test environment. Power reception and distribution modules have been simplified, resulting in lower power consumption and an overall reduction in ownership costs.

Guaranteed continuous operation at ambient temperatures up to 50°C makes the PAT-T the perfect power supply for extremely demanding environments, even under full load.

The PAT-T is equipped with an intuitive, user-friendly display panel supporting a standard RS-232C digital interface and external analog control, monitor, and status output connectors, allowing for control via a computer or sequencer. USB, GPIB, or LAN (LXI) digital interfaces are also available as a factory option. The PAT-T power supply is an extremely versatile test instrument that can be easily incorporated into any test system or used stand-alone.

Features:

• Output: 0 to 20 Vdc, 0 to 400 A
• 8 kW
• Parallel operation up to five units of the same model
• Series operation up to two units of the same model
• CV, CC priority starting function
• RS232C standard digital interface
• External analog control function
• Reliable output ON/OFF delay function for sequence output
• Memory function (three sets of voltage/current)
• Voltage/current monitor output
• Status signal output
• Remote sensing function
• Protection functions (Protections against shutdown, overvoltage, overcurrent, overheating, input phase interruption, fan malfunction, sensing, and bleeder circuit overheating available)
• High noise resistance (for reassurance during car electronics testing)
• Easy maintenance with quick fan replacement

• 180-250 Vac, 3Φ; 47-63 Hz operation

• Weight: 26 kg (57.32 lbs); Size: 1550 mm (6.1 in)H x 440 mm (17.32 in)W x 620 mm (24.41 in)D

Please see the datasheet for complete details and specifications.
