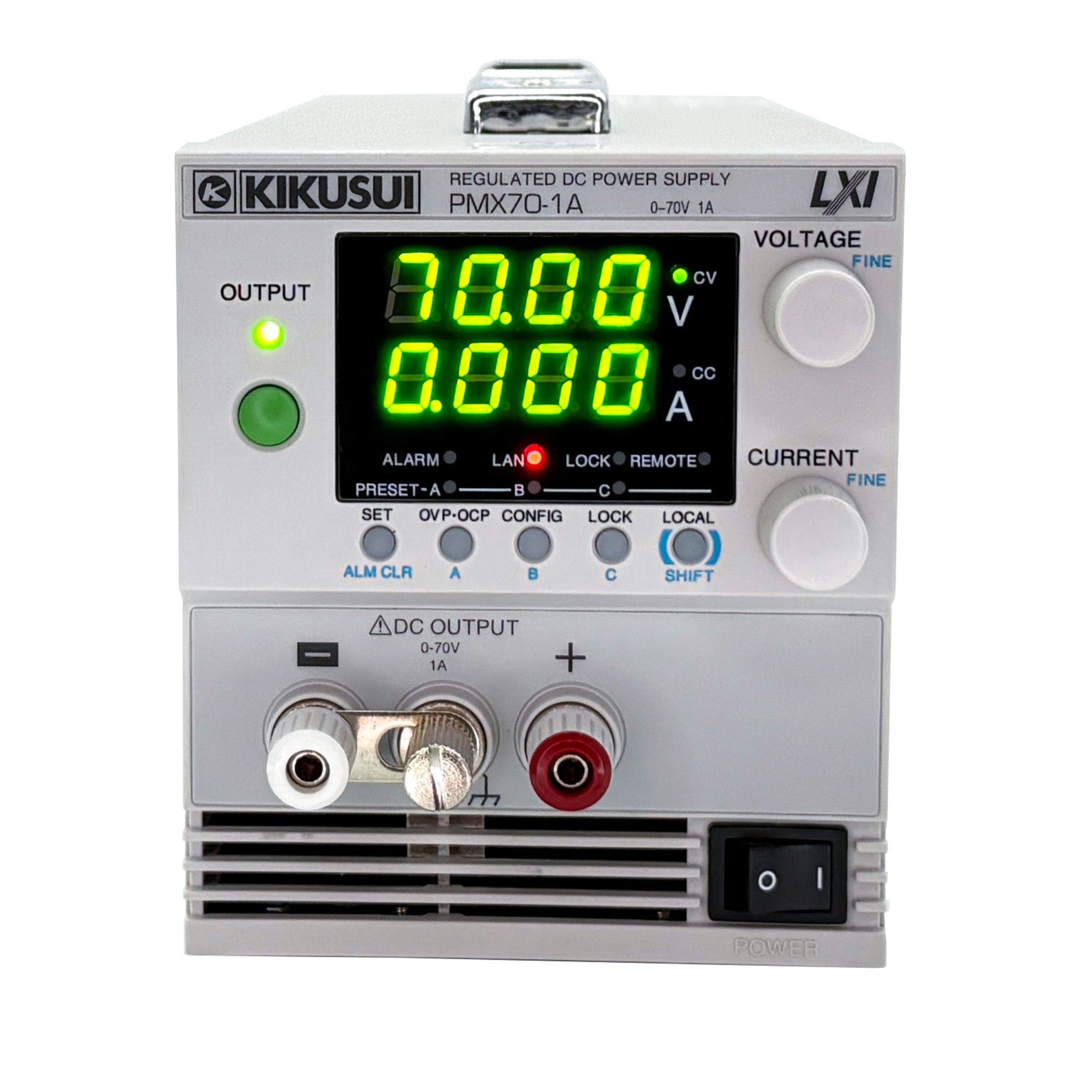

Kikusui PMX70-1A Programmable DC Power Supply, 0 to 70 Vdc, 0 to 1 A, LAN

Kikusui PMX70-1A Programmable DC Power Supply, 0 to 70 Vdc, 0 to 1 A

The Kikusui PMX70-1A is a compact, high-performance DC power supply that provides constant voltage (CV) and constant current (CC). It is designed to improve working efficiency for benchtop use. Output terminals on the front panel are ergonomically designed to connect wiring harnesses for electrical loads by moving your fingers naturally.

Moreover, a forced air cooling system is used to intake and exhaust internal air, so the unit can be rack-mounted without space. The PMX70-1A is equipped with LAN, USB, and RS232C interfaces as standard.

Features:

• Output: 0 to 70 Vdc, 0 to 1 A
• Series regulator system with excellent noise performance
• High setting resolution - Voltage: 1 mV, Current: 0.1 mA (PMX18-2A)

• LAN (LXI compliant) / USB / RS232C as standard interface
• External analog remote control
• Monitoring and status signal output
• CV, CC priority start function (to prevent overshoot when the output is ON)

• Key lock, 3-point preset memory function
• 117 Vac ±10%; 47-63 Hz; single phase operation
• Weight: 13.23 lb; Size: 150 mm (5.91 in)H x 107 mm (4.21 in)W x 355 mm (13.98 in)D

Please see Datasheet for complete details and specifications.
