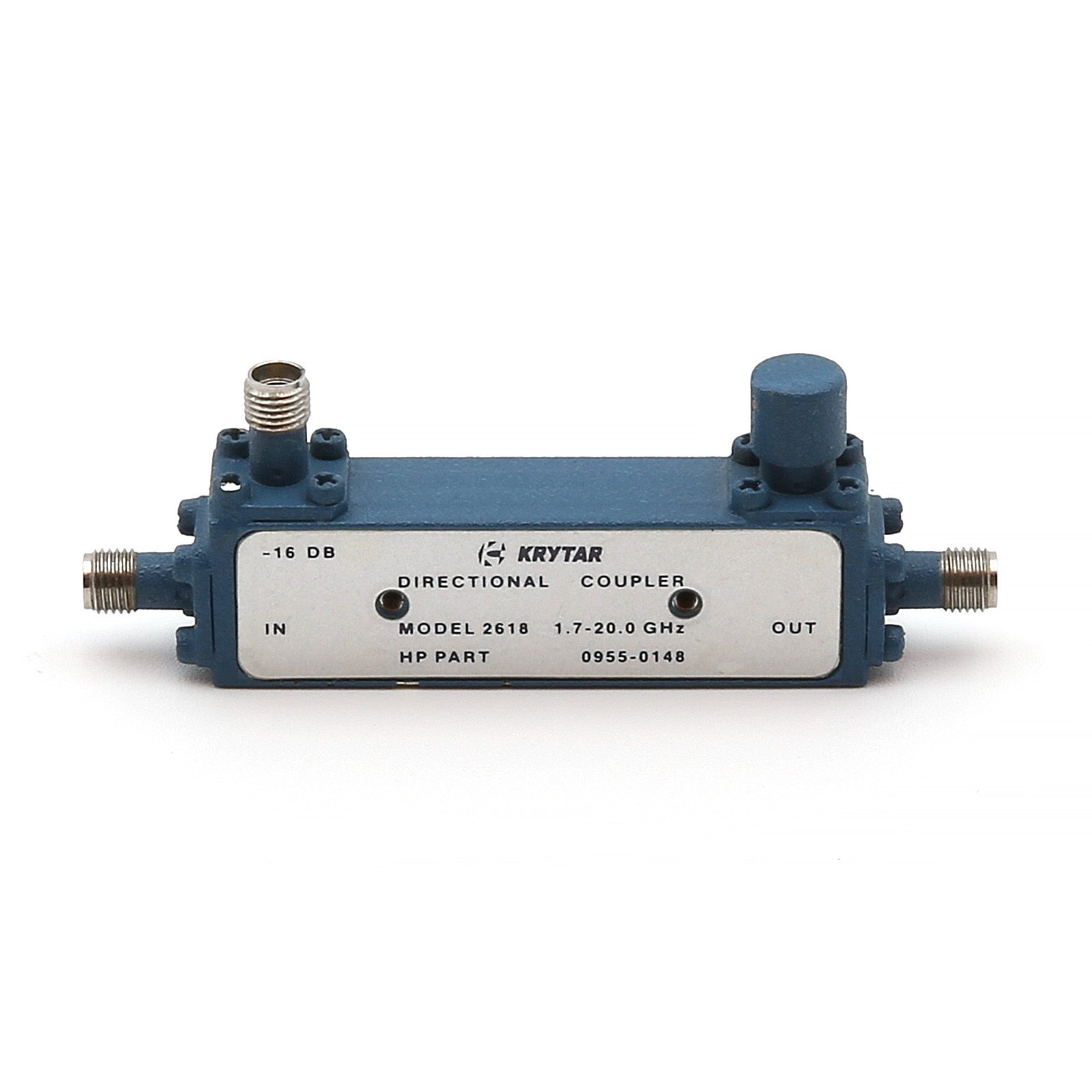

Krytar 2618 Directional Coupler, 1.7 to 20 GHz, 16 dB, 3.5 mm(f)
The 2618 Directional Coupler is uniquely designed for systems applications where external leveling, precise monitoring, signal mixing or swept transmission and reflection measurements are required. The coupler provides simple solutions for many applications including electronic warfare (EW), commercial wireless, SATCOM, radar, signal monitoring and measurement, antenna beam forming, and EMC testing environments. For many space-restricted applications the compact size makes KRYTAR directional couplers ideal solutions.
- Frequency Range: 1.7 to 20 GHz
- Coupling: 16 dB
- VSWR (max.): 1.35 1.7-18 GHz, 1.45 18-20 GHz
- Insertion Loss: < 0.8 dB 1.7-18 GHz, < 1.0 dB 18-20 GHz
- Directivity: > 15 dB, 1.7-18 GHz; > 13 dB, 18-20 GHz
- Power Rating: 20 W
- Connectors: 3.5 mm(f)
Please see Datasheet for complete details and specifications.
