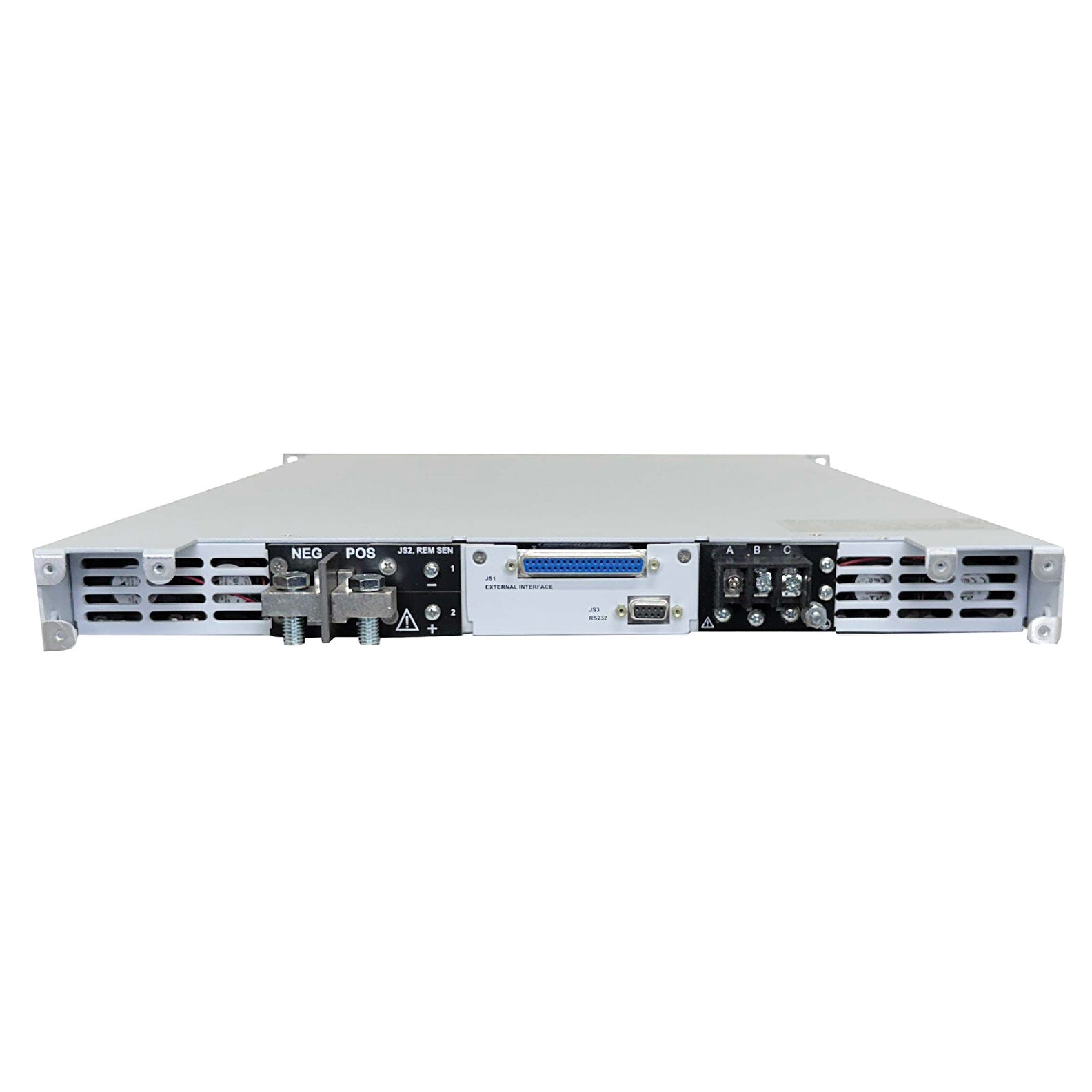

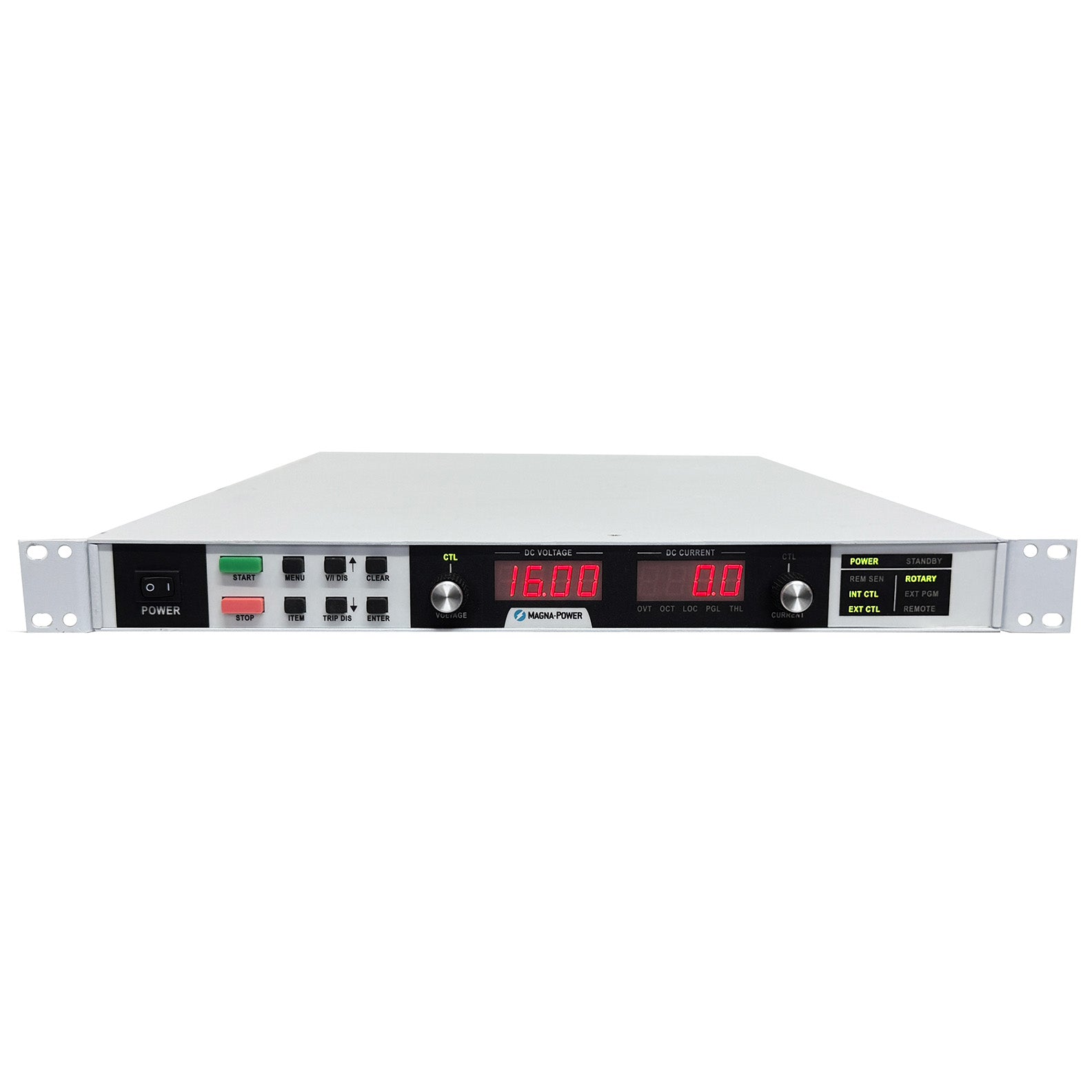

Magna-Power SL16-162/208 DC Power Supply, 0 to 16 V, 0 to 162 A, 2.6 kW

Magna-Power SL16-162/208 Programmable DC Power Supply, 0 to 16 Vdc, 0 to 162 A

The Magna-Power SL 16-162/208, 2.6 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications.

The SL Series builds on over 40 years of power supply innovation at Magna-Power, designed from the ground up to meet ATE system integrators' highly reliable power-dense demands through Magna-Power’s signature current-fed power processing topology. Utilizing state-of-the-art semiconductors and innovative internally designed and manufactured heat sinks, the SL Series offers industry-leading 1U (1.75” height) programmable power levels with models at 1.5 kW, 2.6 kW, 4 kW, 6 kW, 8 kW, and 10 kW while still maintaining an ambient operating temperature rating up to 50°C.

Features:

• Voltage: 0 to 16 Vdc
• Current: 0 to 162 A
• Output Power: 2.6 kW

• Output ripple (rms): Voltage 40 mV
• Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
• Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• RS-232 Interface
• Ethernet and GPIB Available
• 0-10 V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software
• NI LabVIEW™ and IVI Driver
• Interlock Shutdown Input
• Designed and Manufactured in the USA
• 187-229 Vac, 3Φ; 50-400 Hz operation
• Weight: 15.42 kg (34 lbs); Size: 44 mm (1.75 in)H x 483 mm (19.0 in)W x 610 mm (24 in)

Please see Datasheet for complete details and specifications.
