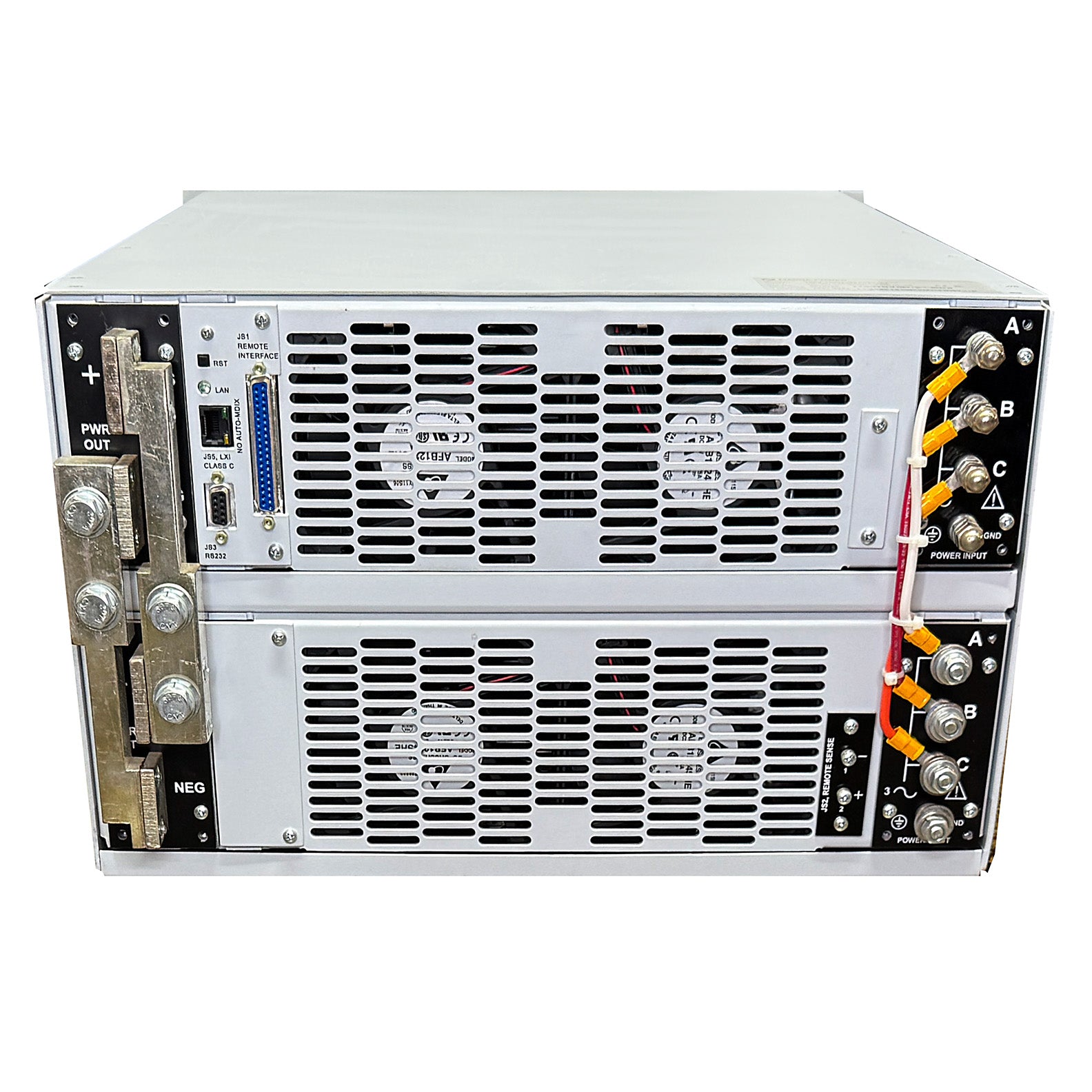

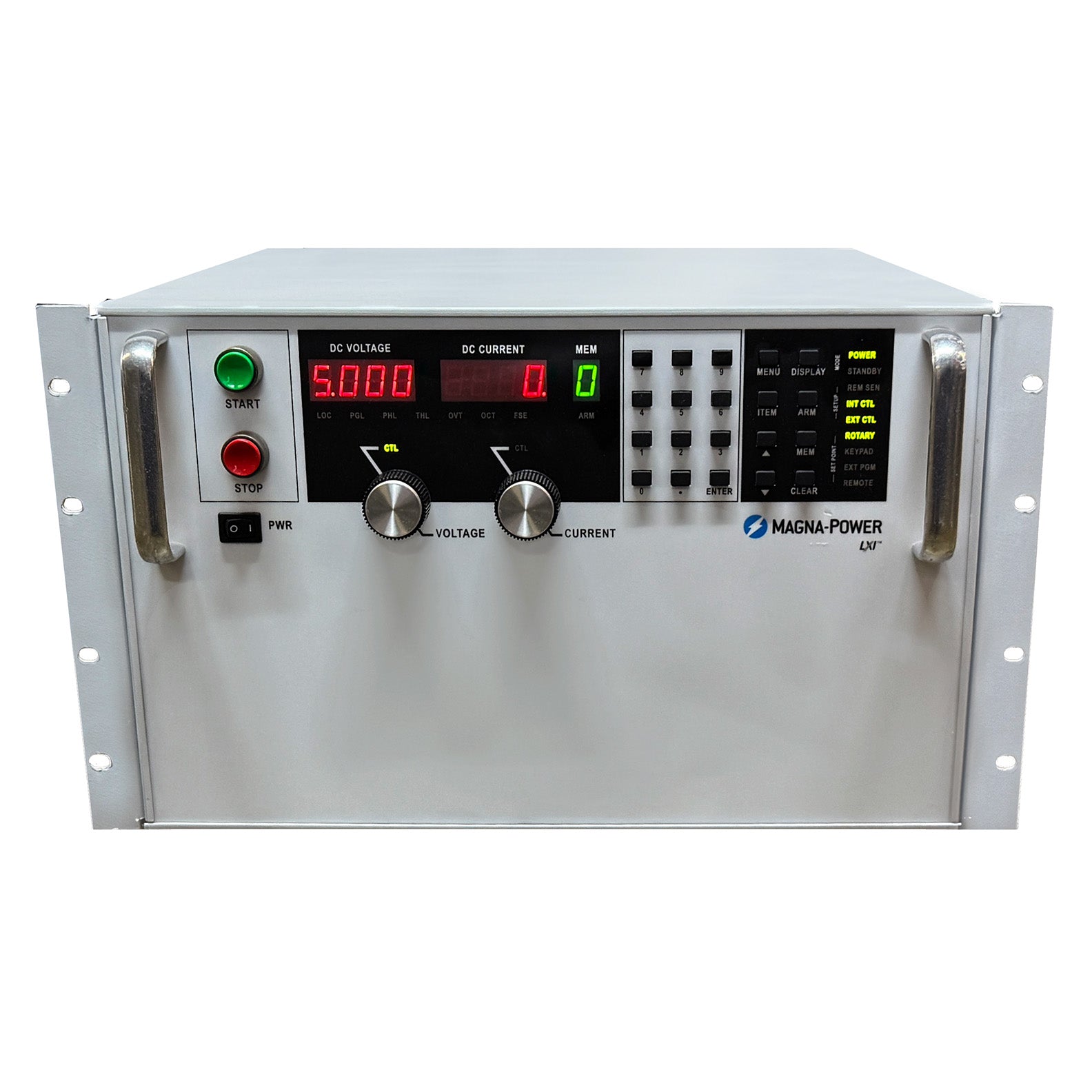

Magna-Power TSD5-1800 DC Power Supply, 0 to 5 V, 0 to 1800 A, 9 kW, 208 Vac

Magna-Power TSD 5-1800/208 Programmable DC Power Supply, 0 to 5 Vdc, 0 to 1800 A

The Magna-Power TSD5-1800/208, 9 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. It features high-accuracy voltage and current programming, class-leading line and load regulation performance, high 3Φ AC input power factor with in-rush limiting circuitry, and computer and user I/O isolated from the power supply output.

The TS Series offers many models spanning a wide voltage and current range, while still maintaining among the highest power density rack-mount packaging. The TS Series covers voltages from 5 Vdc up to 6000 Vdc (floating) and current levels from 1.2 Adc up to 8000 Adc. Models 5 kW to 15 kW are available in a 3U chassis, models 20 kW and 25 kW are available in a 4U chassis, models 30 kW are available in a 6U chassis, models 40 kW and 50 kW are available in an 8U chassis with removable casters, models 75 kW models are available in a 12U chassis with removable casters, and 100 kW models are available in a 16U chassis with removable casters. In addition, there are several special low voltage high current models, enabling a more cost-effective solution for these requirements. All TS Series power supplies come standard with isolated 37-pin external I/O, RS232.

Optional HS adds High Slew Rate

Optional LXI adds LXI TCP/IP Ethernet Communications (LAN)

Features:

• Voltage: 0 to 5 Vdc
• Current: 0 to 1800 A
• Output Power: 9 kW
• Output ripple (rms): Voltage 50 mV
• Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
• Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• 0-10 V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Interlock Shutdown Input
• Designed and manufactured in the USA

• 3 Phase, 187-229 Vac, 38 A; 50-400 Hz operation
• Weight: 42.64 kg (94 lbs); Size: 133 mm (5.25 in)H x 483 mm (19.0 in)W x 610 mm (24 in)D

Please see Datasheet for complete details and specifications.
