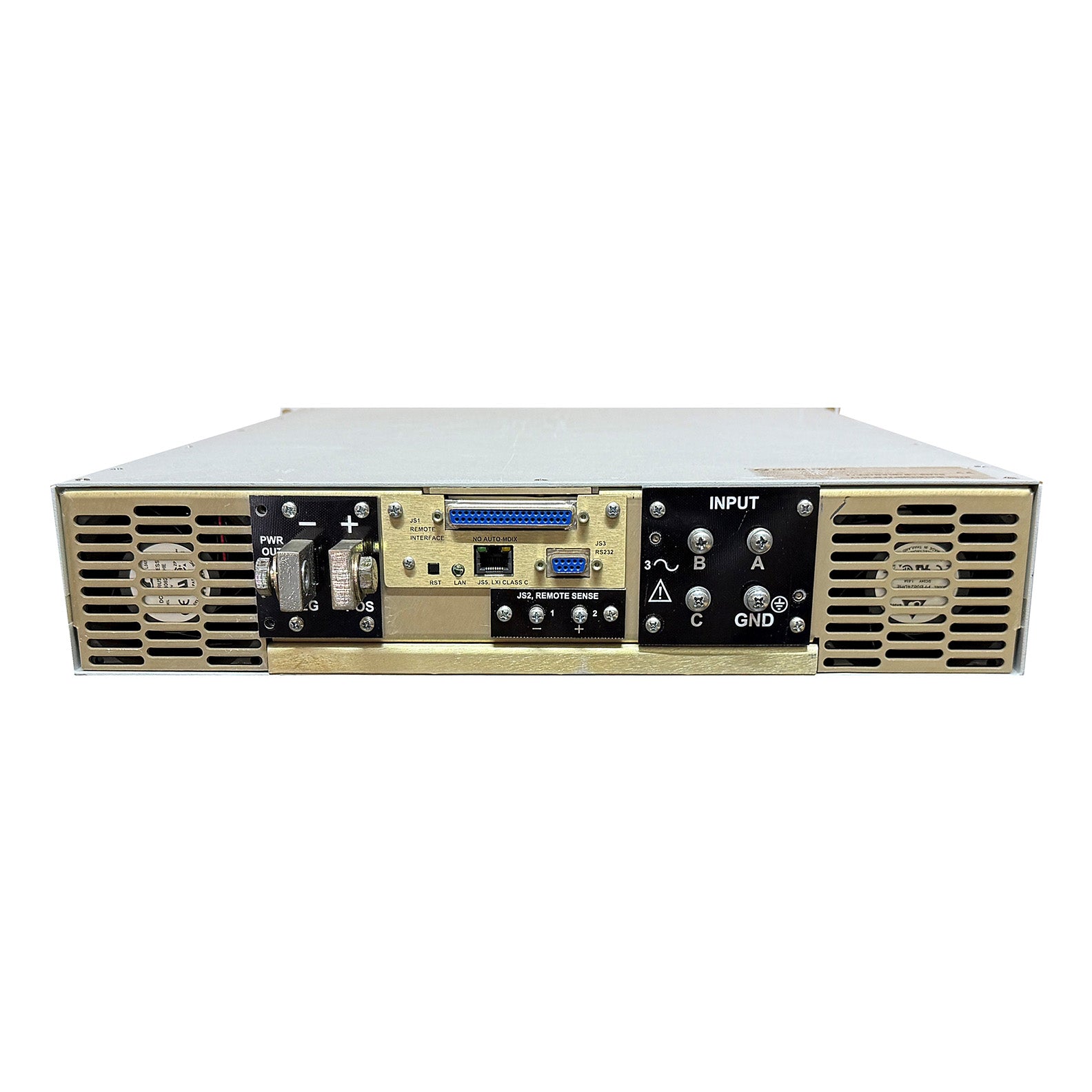

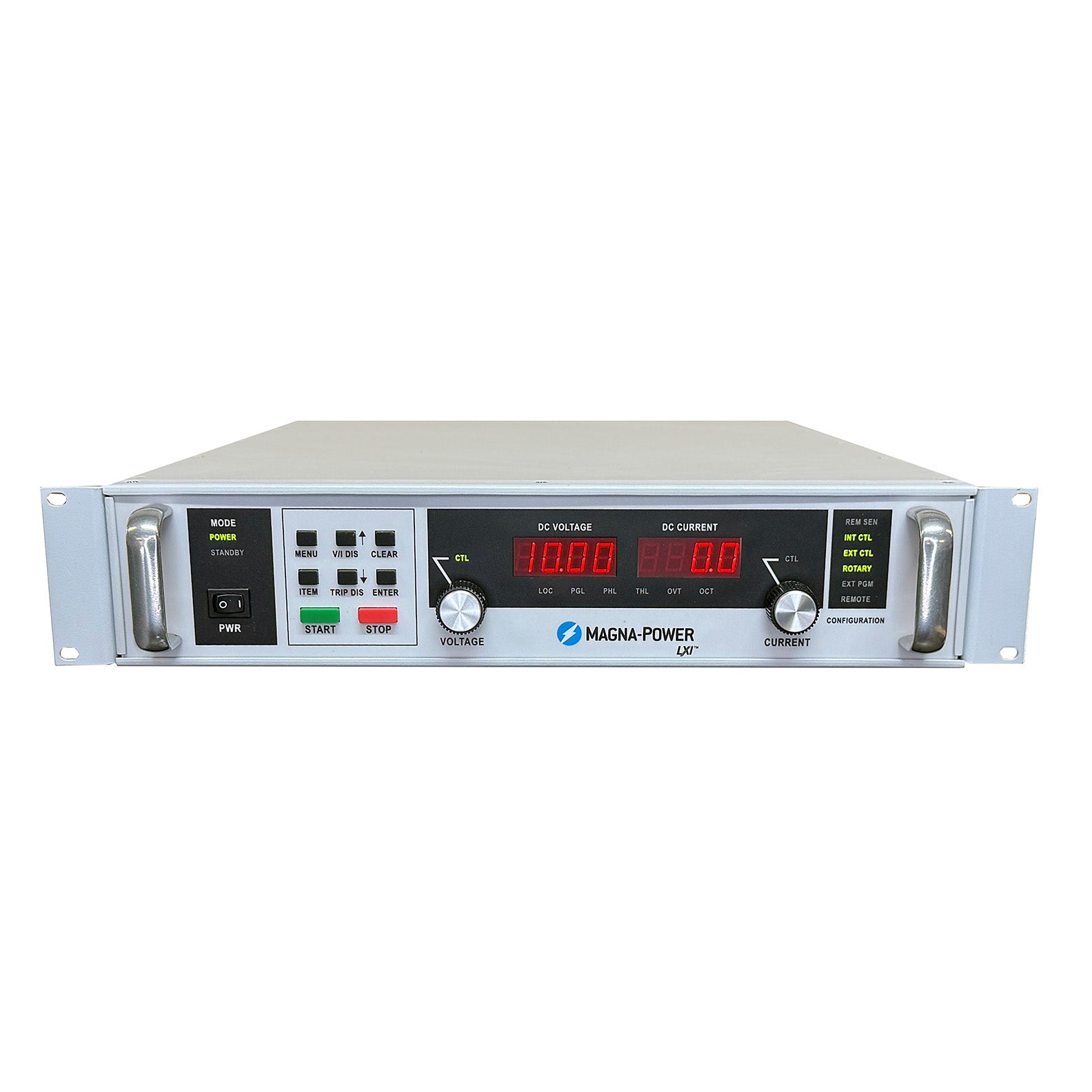

Magna-Power XR10-600/208 DC Power Supply, 0 to 10 V, 0 to 600 A, 6 kW, LAN

Magna-Power XR10-600/208+LXI Programmable DC Power Supply, 0 to 10 Vdc, 0 to 600 A, LAN

The Magna-Power XR 10-600/208+LXI, 10 kW programmable DC power supply provides clean, reliable power for ATE, burn-in, magnet charging, OEM, and other test and measurement applications. It features high-accuracy voltage and current programming, class-leading line and load regulation performance, high 3Φ AC input power factor with in-rush limiting circuitry, and computer and user I/O isolated from the power supply output.

The XR Series was designed from the ground up for high reliability and industry-leading 2U (3.5” height) rack-mount programmable power levels at 2 kW, 4 kW, 6 kW, 8 kW, and 10 kW. The XR Series features the largest voltage range in Magna-Power’s product offering, from 5 Vdc to 10,000 Vdc, utilizing the company’s signature current-fed power processing to deliver robust power conversion. In addition, high-accuracy programming and monitoring levels allow confidence in power supply measurements, eliminating the need for external power meters.

Features:

• Voltage: 0 to 10 Vdc
• Current: 0 to 600 A
• Output Power: 6 kW

• Output ripple (rms): Voltage 50 mV
• Line Regulation Voltage mode: ±0.004% of full scale; Current mode: ±0.02% of full scale
• Load regulation: Voltage mode: ±0.01% of full scale; Current mode: ±0.04% of full scale
• SCPI Remote Programming API
• High Accuracy Measurements
• Master-Slave Functionality
• Remote Sensing
• 37-Pin External User I/O
• RS-232 Interface
• Ethernet and GPIB Available
• 0-10 V External Analog Inputs
• Programmable Protection Limits
• Fast Transient Response
• Remote Interface Software
• NI LabVIEW™ and IVI Driver
• Interlock Shutdown Input
• Designed and Manufactured in the USA
• 3 Phase, 187-229 Vac; 45-440 Hz operation
• Weight: 21.27 kg (48 lb); Size: 89 mm (3.5 in)H x 483 mm (19.0 in)W x 610 mm (24 in)D

Please see Datasheet for complete details and specifications.
