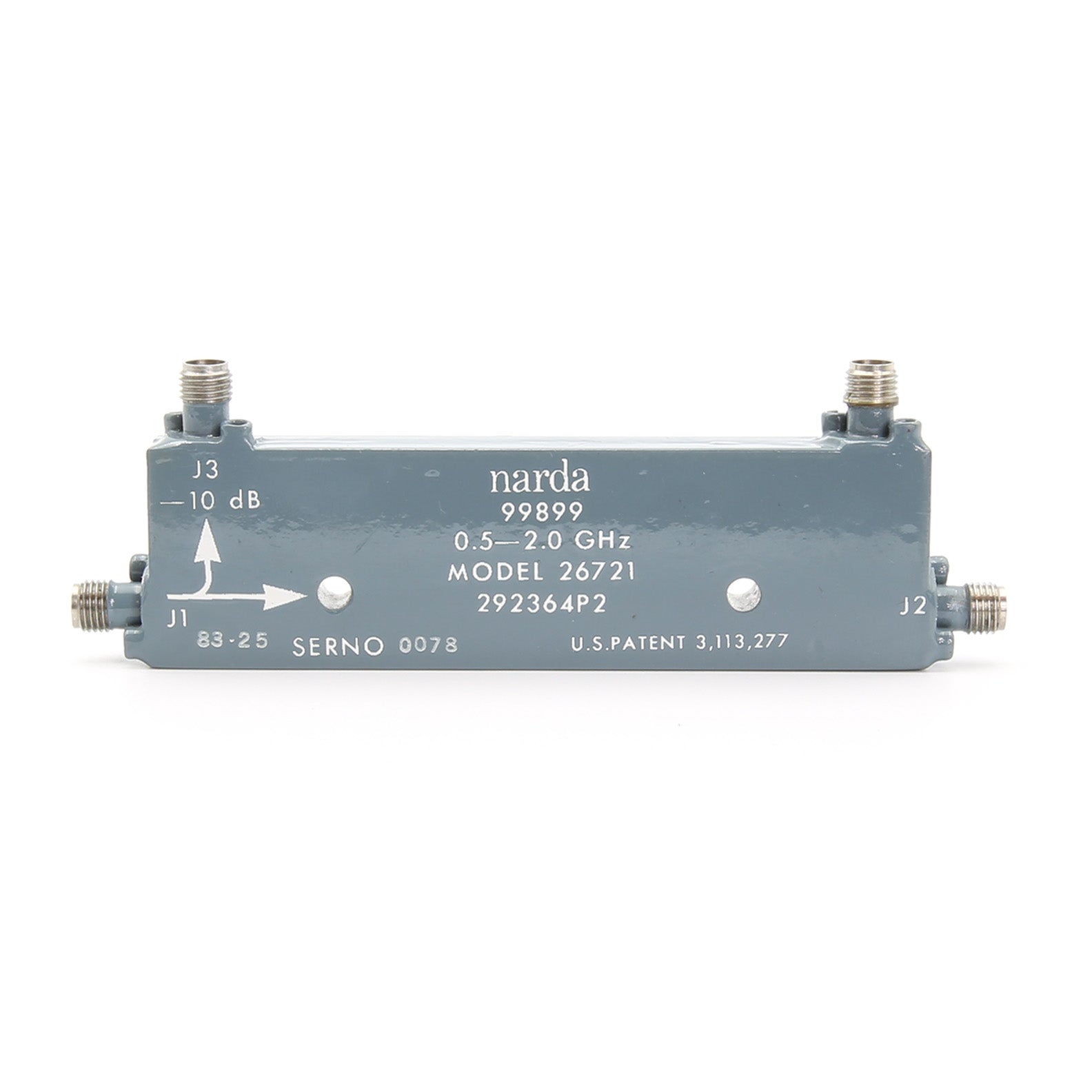

Narda 26721 Directional Coupler, 0.5 to 2.0 GHz, 10 dB, SMA(f)
The 26721 Coaxial Directional Coupler covers 0.5 to 2.0 GHz and features SMA(f) connectors. The 26721 has a coupling factor of 10 dB. It is an OEM version of the 4242-10.
- Frequency Range: 0.5 to 2.0 GHz
- Nominal Coupling: 10 dB
- Directivity: 22 dB
- Insertion Loss Coupled Pwr Excl.: 0.35 dB
- VSWR Maximum for Primary Line: 1.2
- VSWR Maximum for Secondary Line: 1.2
- Frequency Sensitivity (Max): ±0.5 dB
- Maximum Deviation from Nominal: ±1.0 dB
- Average Power: 50 W
- Peak Power: 3 kW
- Connectors: SMA(f)
Please see Datasheet for complete details and specifications.
