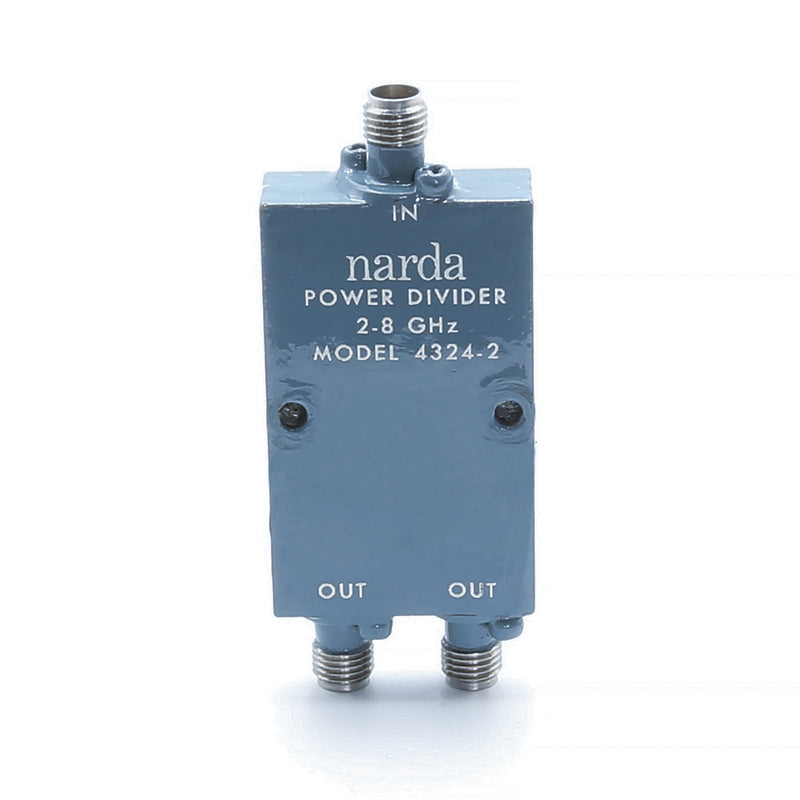

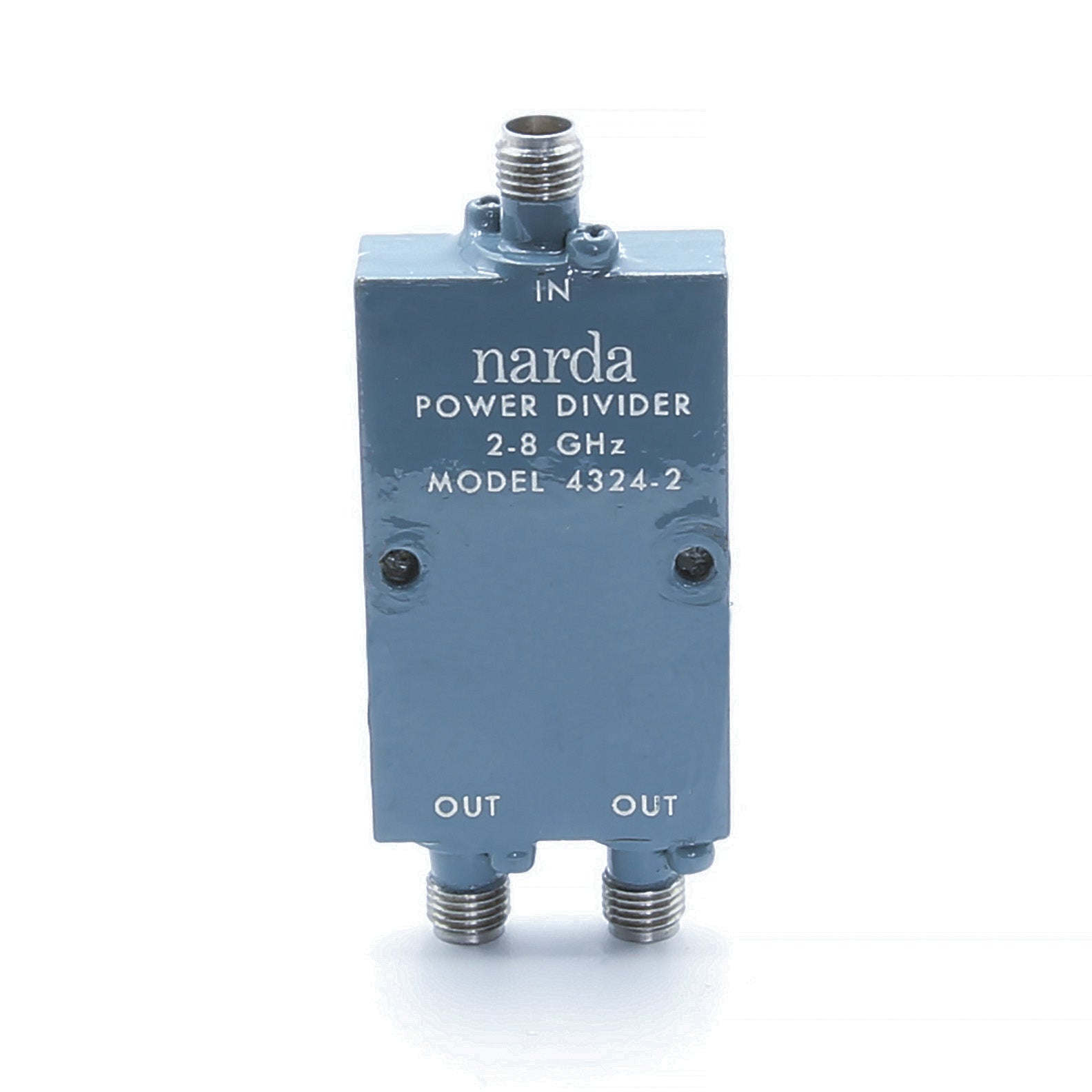

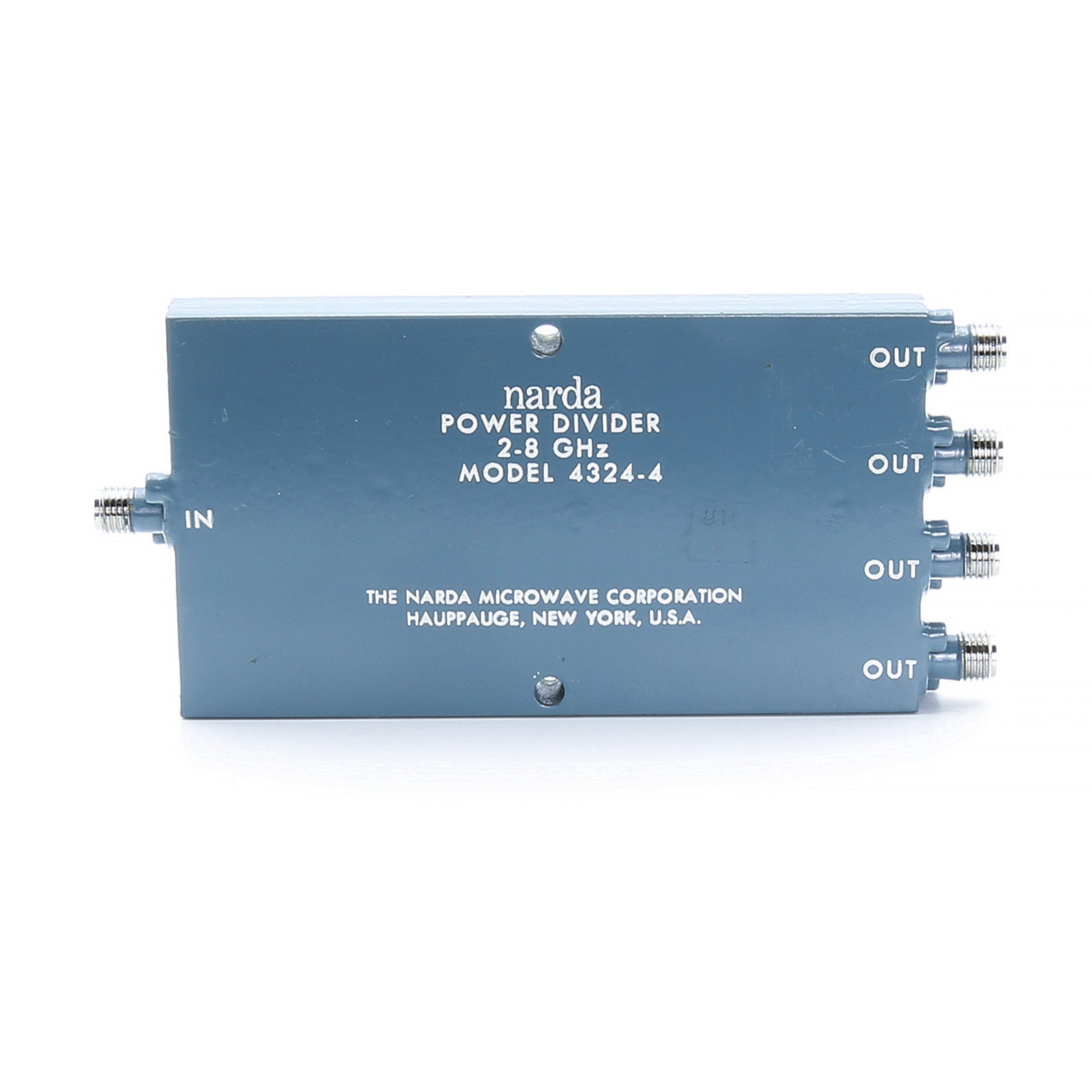

Narda 4324 Power Divider, 2.0 to 8.0 GHz, SMA(f), 30 Watt
The 4324 Model Power Divider covers 2.0 to 8.0 GHz and features SMA(f) connectors. Available in 2-Way or 4-Way.
- Low Input VSWR
- Excellent Phase and Amplitude Tracking
- High Isolation Between Output Ports
- Designed for MIL Environments
- Frequency Range: 2.0 to 8.0 GHz
- VSWR Input (max): 2-Way 1.35:1, 4-Way 1.45:1
- VSWR Output (max): 2-Way 1.35:1, 4-Way 1.35:1
- Insertion Loss dB (max): 2-Way 0.2 (2-4 GHz) 0.5 (2-4 GHz), 4-Way 0.9
- Connectors: SMA(f)
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
