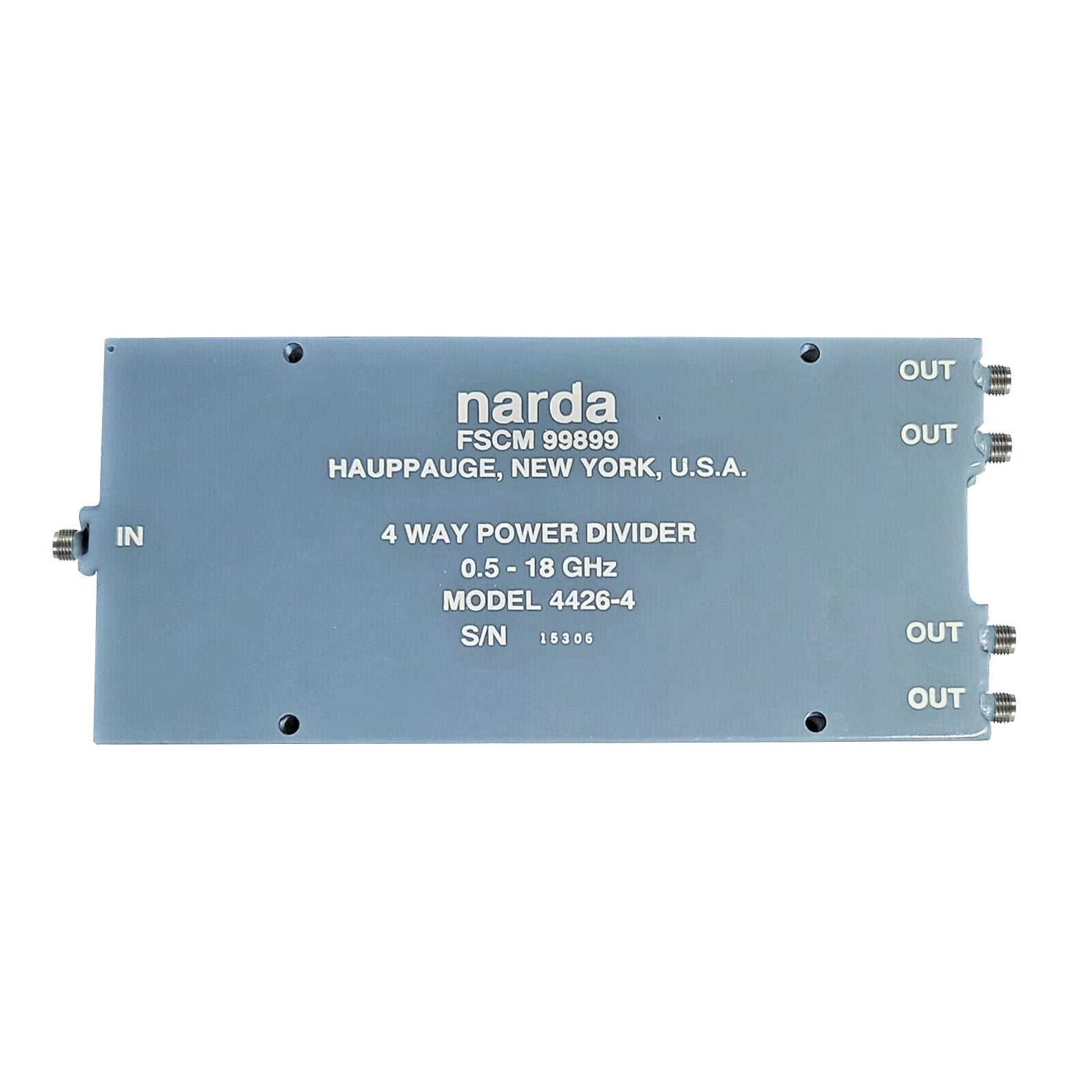

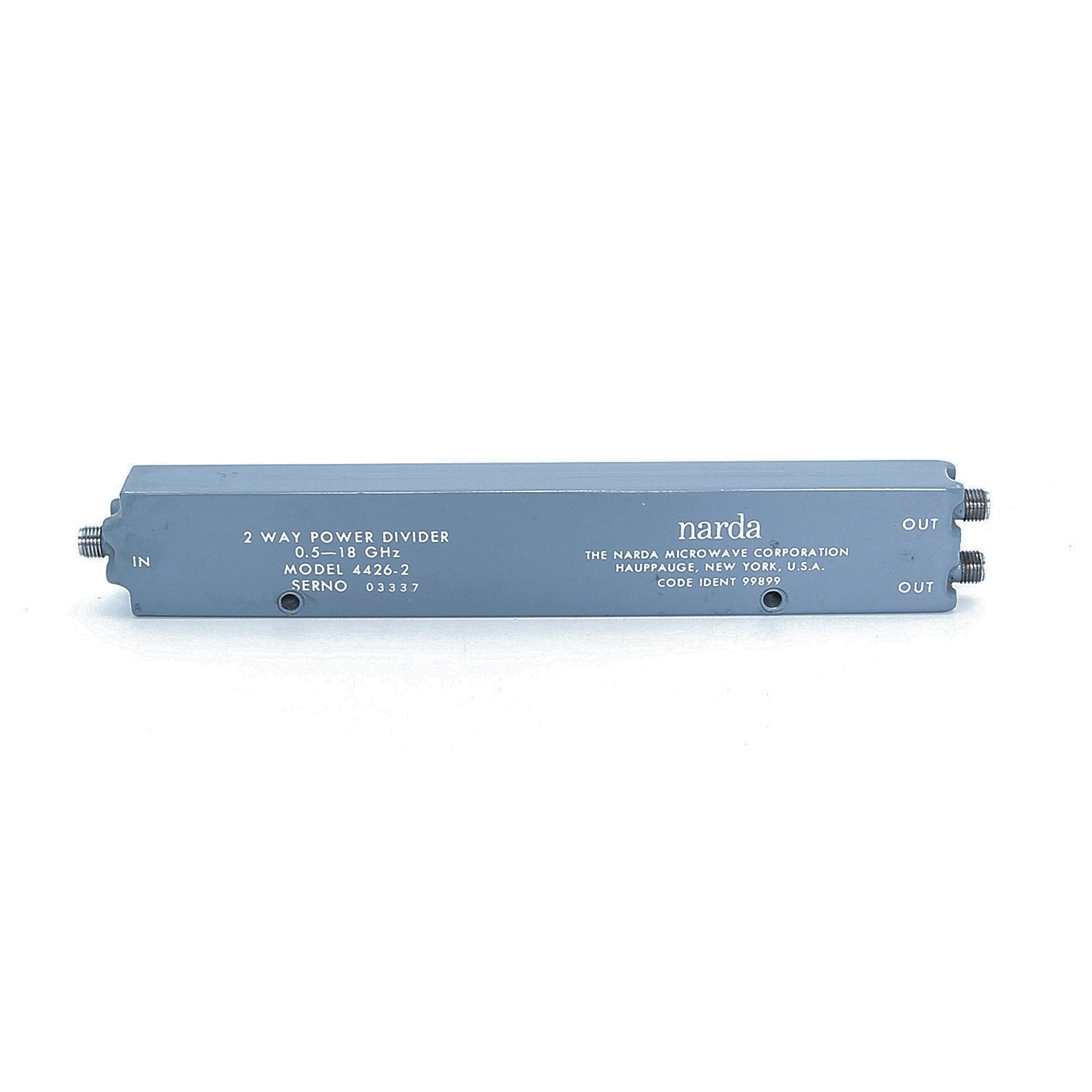

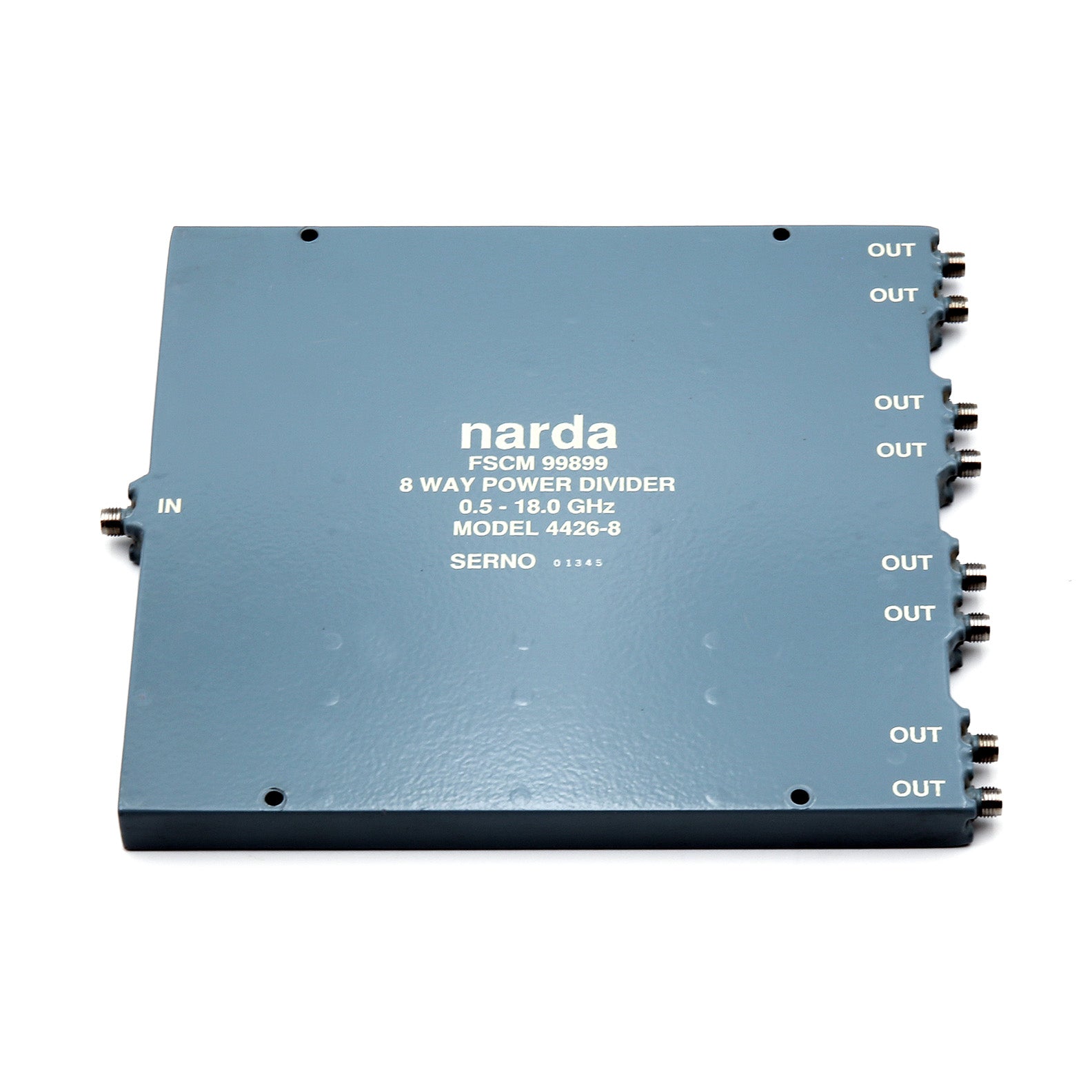

Narda 4426 Power Divider, 0.5 to 18 GHz, SMA(f), 30 Watt
The 4426 Model Power Divider covers 0.5 to 18.0 GHz and features SMA(f) connectors. Available in 2-Way, 4-Way, or 8-Way.
- Low Input VSWR
- High Isolation Between Output Ports
- Temperature Range: -54° to +85°C (Operational at 105°C)
- Designed for MIL Environments
- Frequency Range: 0.5 to 18.0 GHz
- VSWR Input (max): 2-way 1.50:1, 4-way 1.60:1, 8-way 1.70:1
- VSWR Output (max): 2/4-way 1.45:1, 8-way 1.50:1
- Insertion Loss dB 2-Way/4-Way/8-Way: (0.5-8 GHz) 0.8/1.8/3.5, (8-18 GHz) 1.7/3.8/6.5
- Connectors: SMA(f)
- Shipping weight: 2 lb
Please see Datasheet for complete details and specifications.
