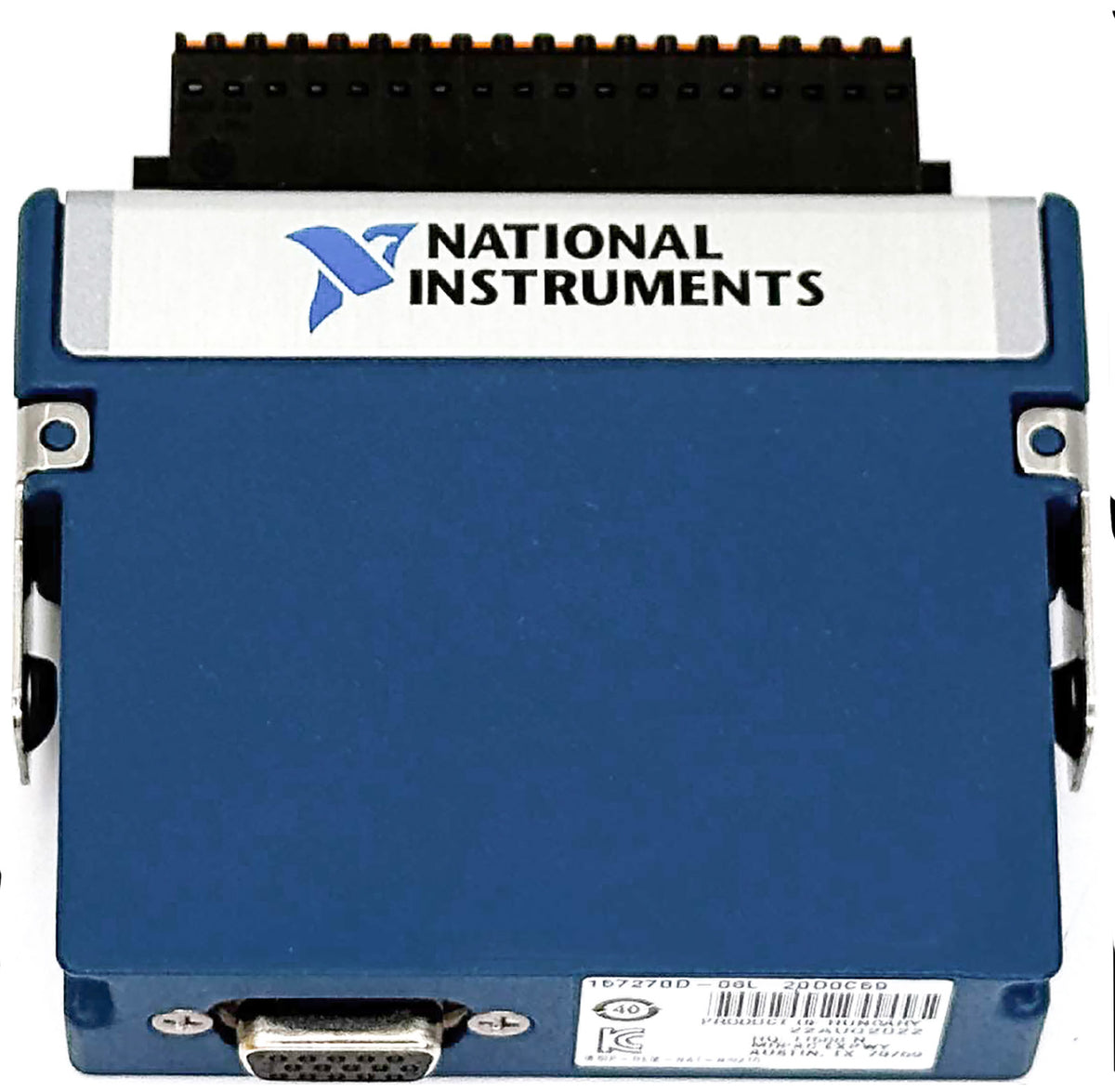

National Instruments NI-9216 8-Channel, 400 S/s Aggregate, 0 Ω to 400 Ω, PT100 RTD C Series Temperature Input Module

National Instruments NI-9216 8-Channel, 400 S/s Aggregate, 0 Ω to 400 Ω, PT100 RTD C Series Temperature Input Module

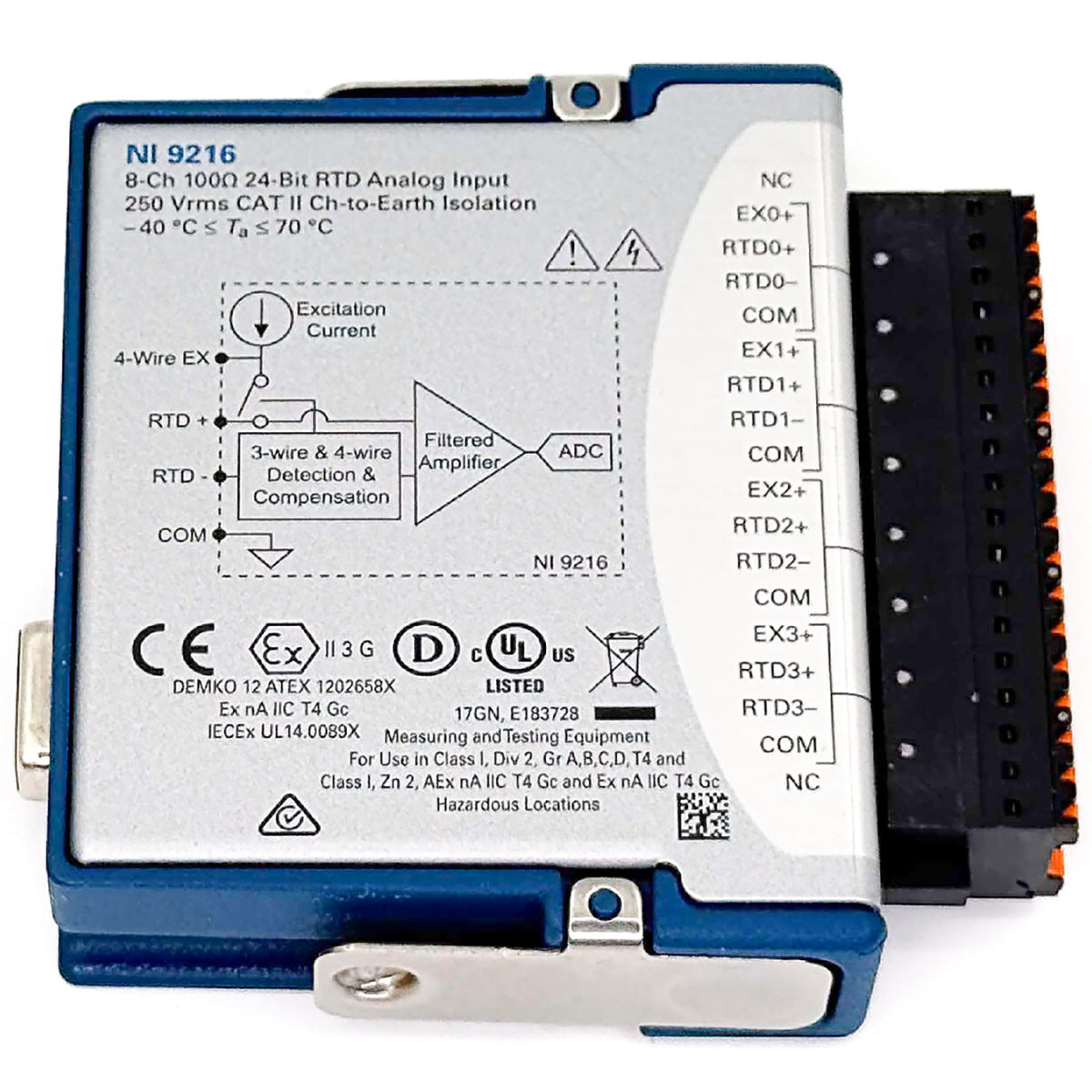

The NI-9216 is a resistance temperature detector (RTD) input module. You can configure the NI-9216 for two sample rate modes: high sample rate or high resolution. The NI-9216 is compatible with 3- and 4-wire RTD measurements, and it automatically detects the type of RTD (3--or 4-wire) connected to the channel and configures each channel for the appropriate mode. The module provides per-channel current excitation. The NI-9216 supports calibration and includes a channel-to-earth ground double-isolation barrier for safety, noise immunity, and a high common-mode voltage range.

Features:

• Number of Analog Input Channels: 8

• Supported Sensors: PT100 RTD
• Measurement Accuracy: 0.15 °C
• Maximum Sample Rate: 400 S/s
• Analog Input Isolation: 250 Vrms Ch-Earth Ground Isolation

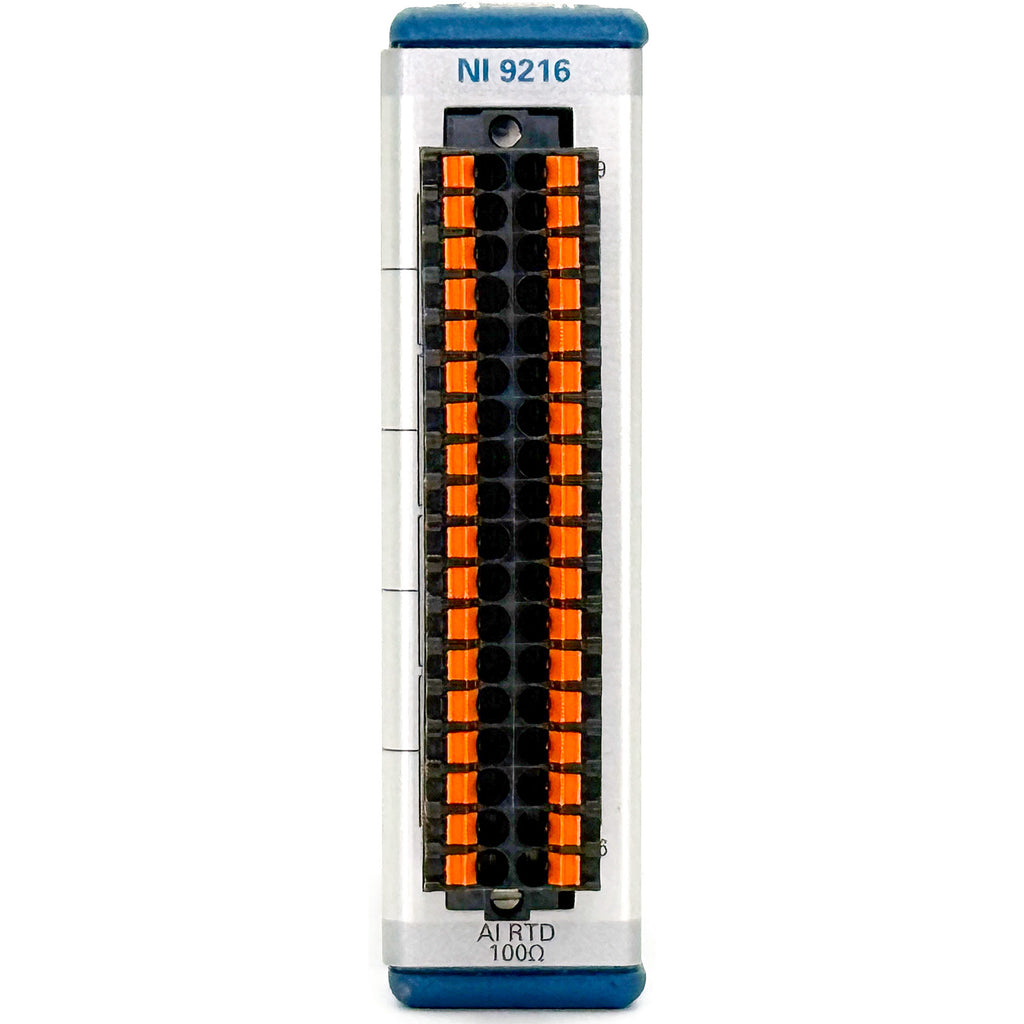

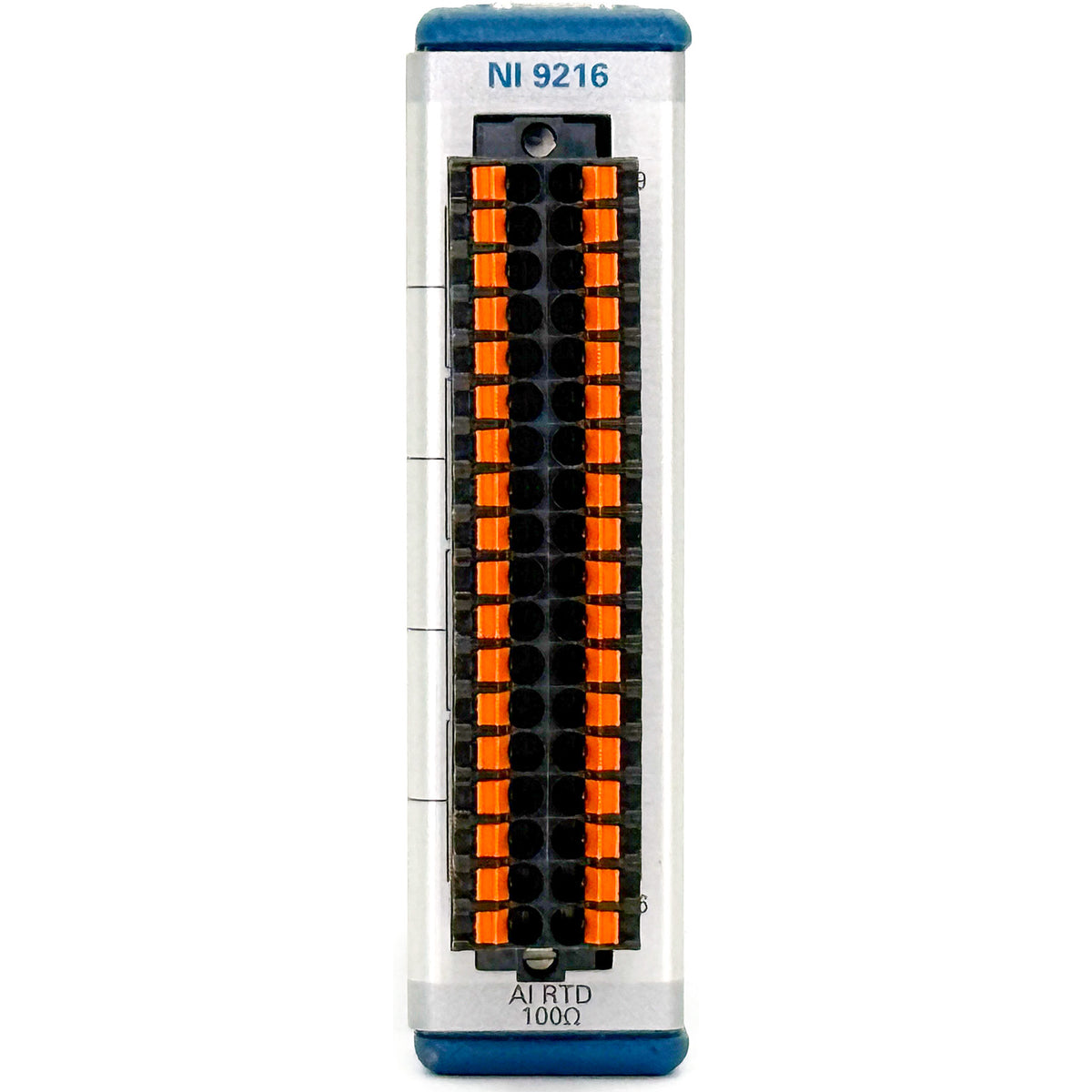

• Front Connection Type: Spring Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
