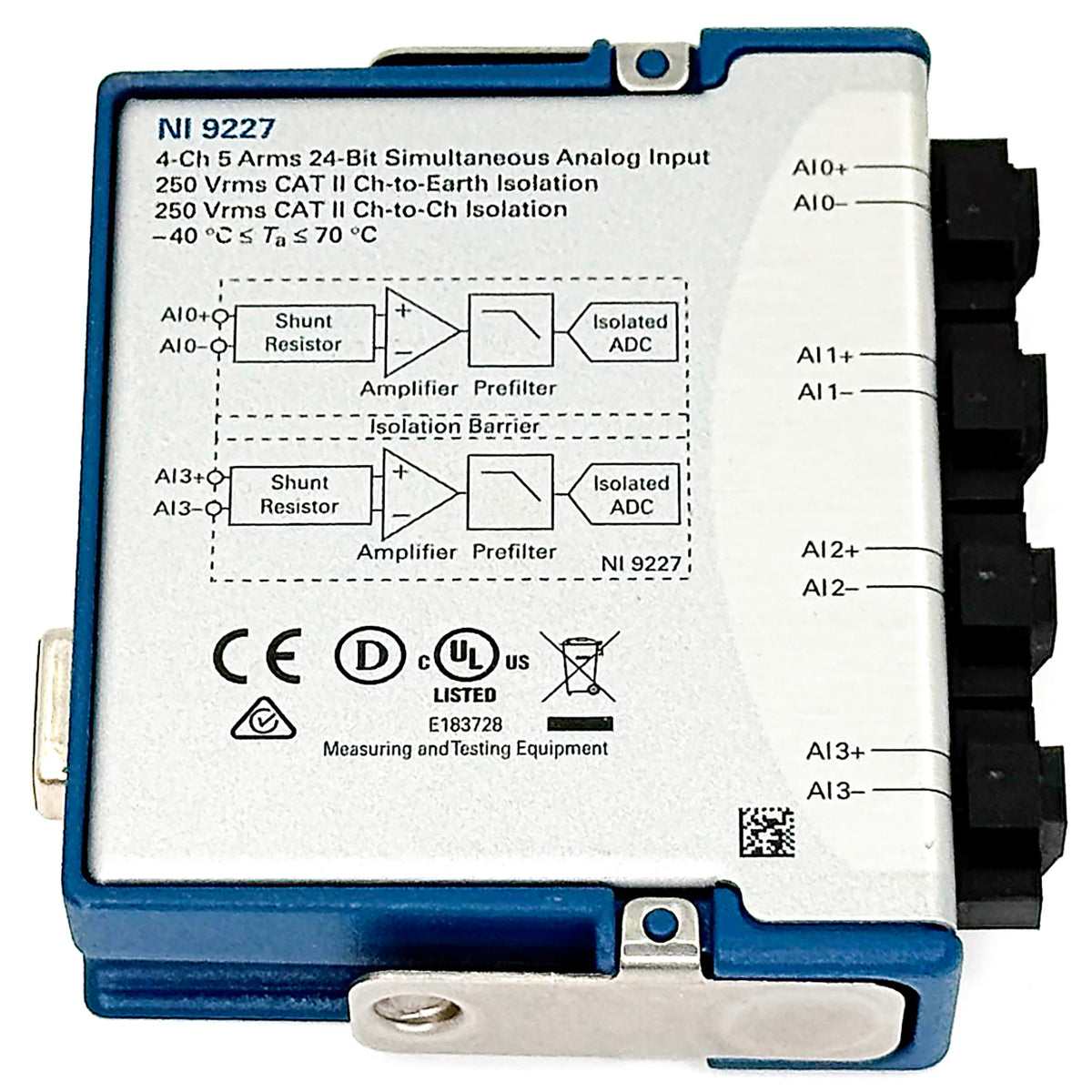

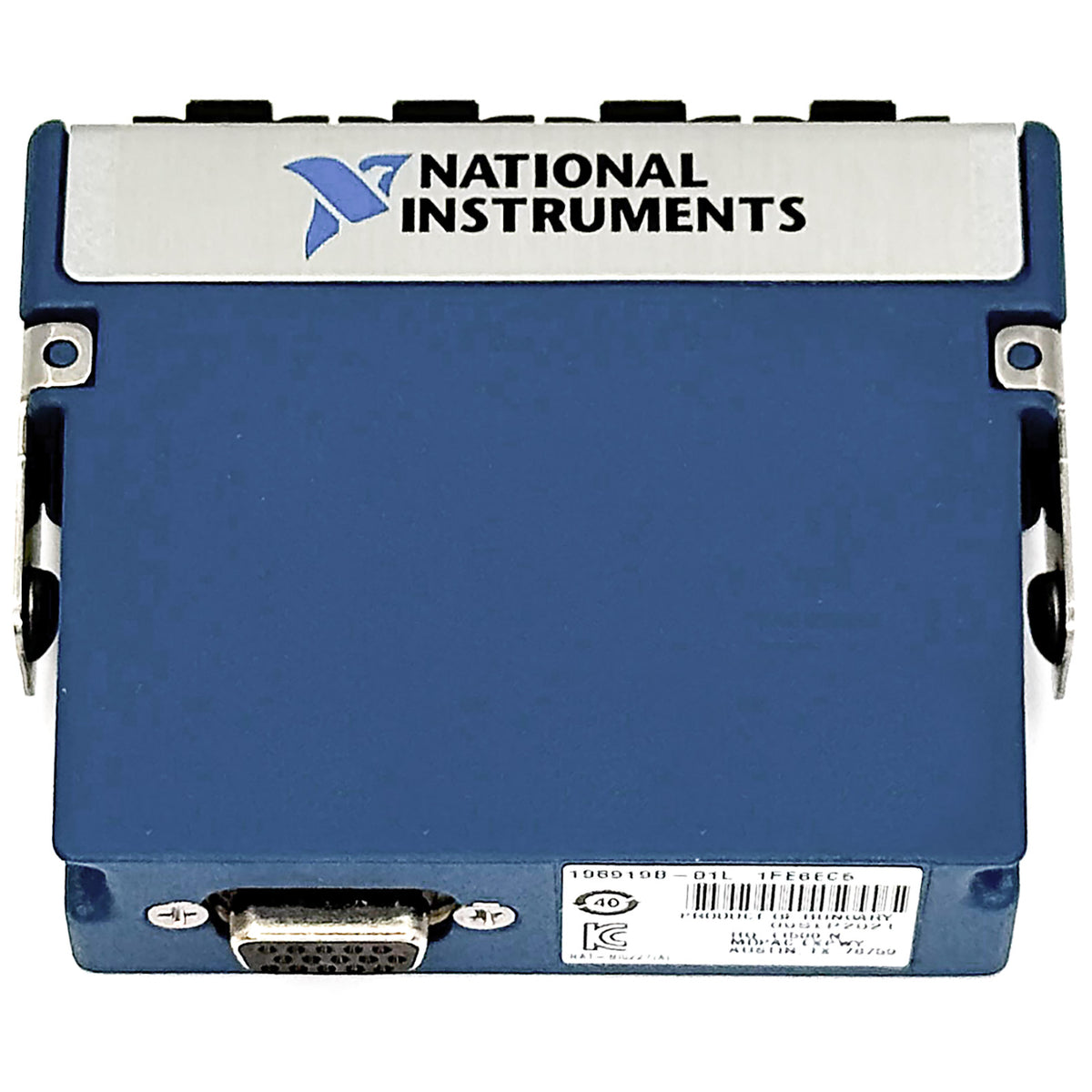

National Instruments NI-9227 4-Channel C Series Current Input Module

National Instruments NI-9227 4-Channel C Series Current Input Module

The NI-9227 was designed to provide high-accuracy measurements for data acquisition and control applications. It includes built-in anti-aliasing filters. When used with a C Series Voltage Input Module, the NI-9227 can measure power and energy consumption for applications such as appliance and electronic device testing. You can not only measure and meter current and power but also look at quality factors such as noise, frequency, and harmonics.

Features:

• Number of Differential Analog Input Channels: 4

• Number of Single-Ended Analog Input Channels: 4
• Measure Current: 0 to 5 A
• Analog Input Resolution: 24 Bits
• Maximum Sample Rate: 50 kS/s/ch
• Analog Input Isolation: 250 VDC Ch-Earth Ground Isolation

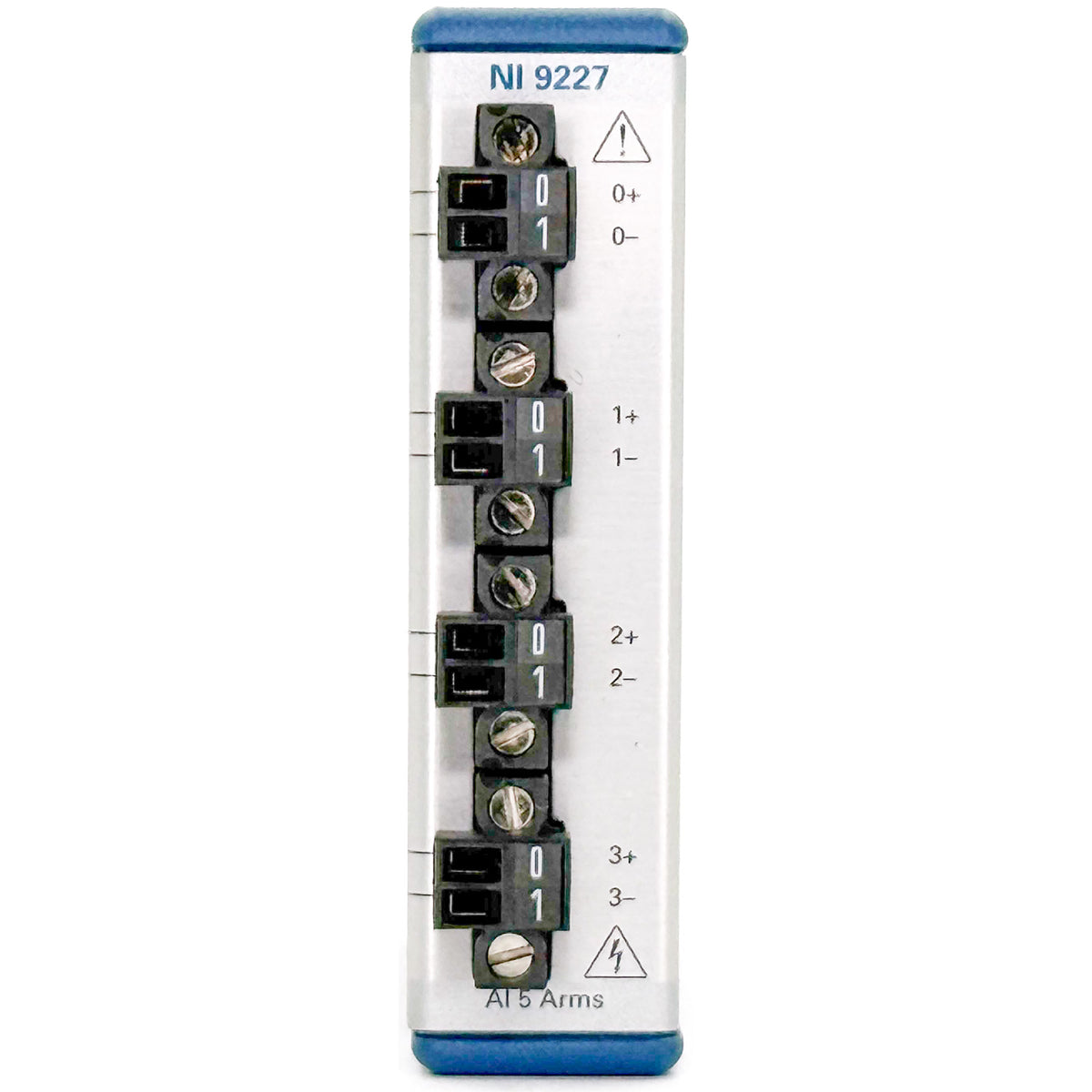

• Front Connection Type: Screw Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
