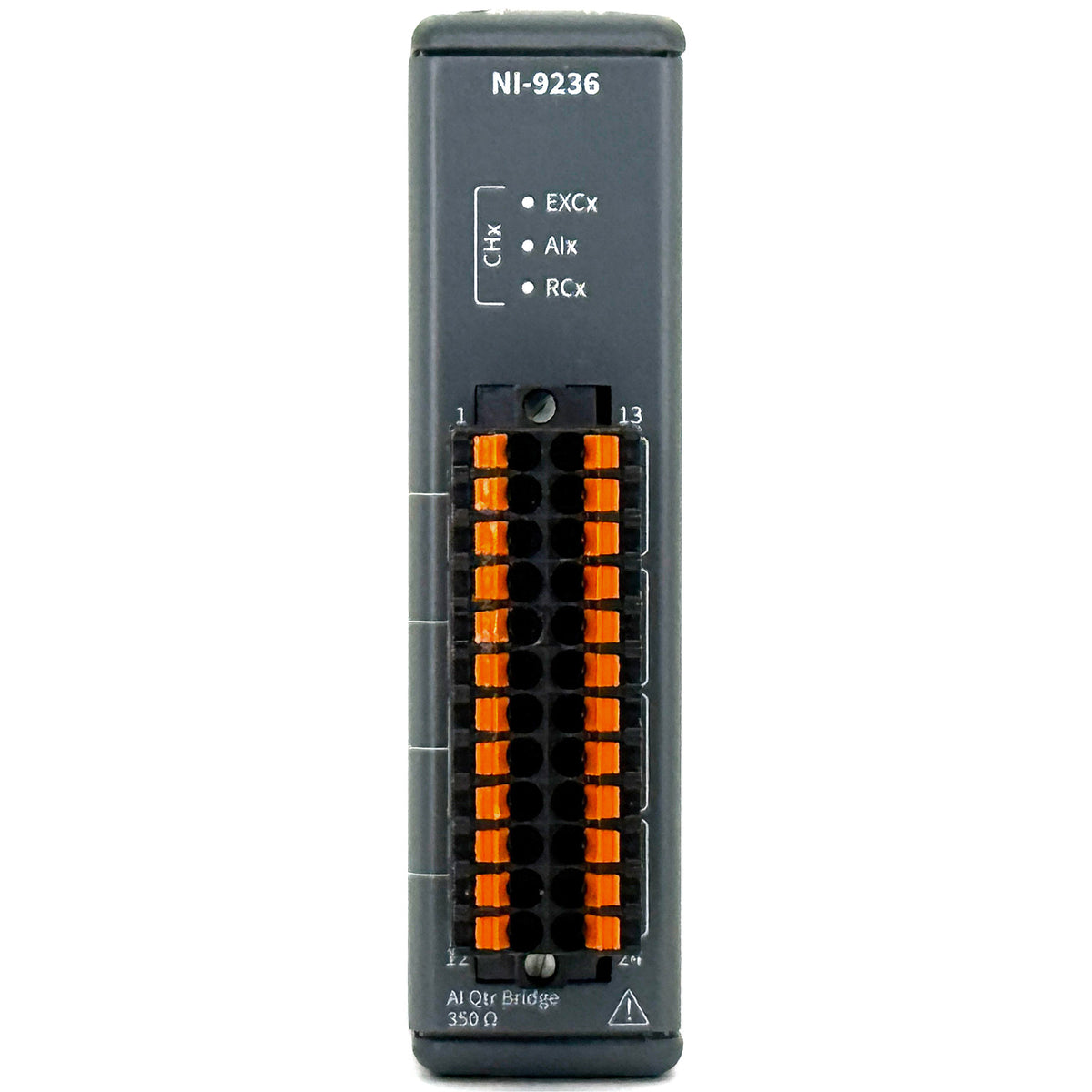

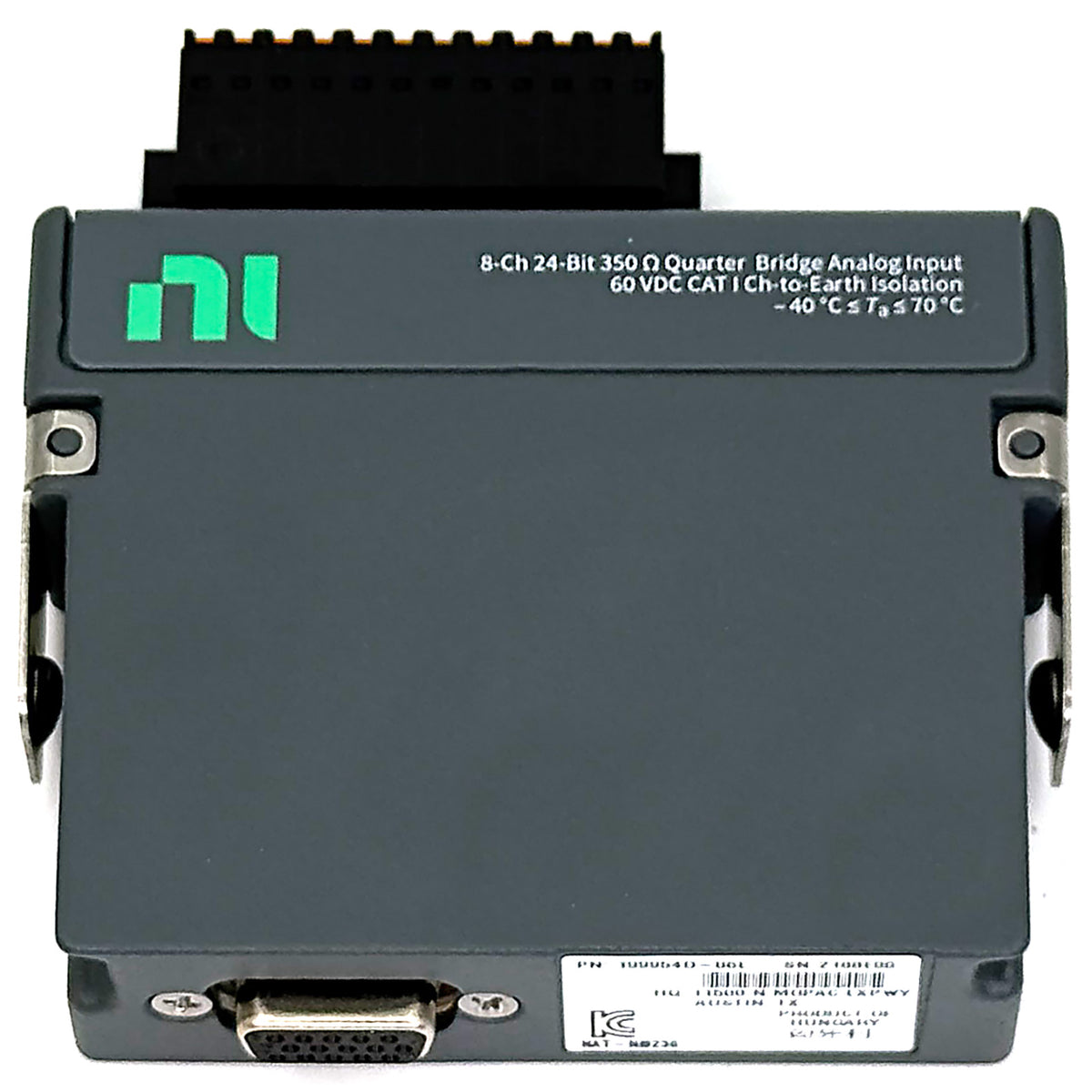

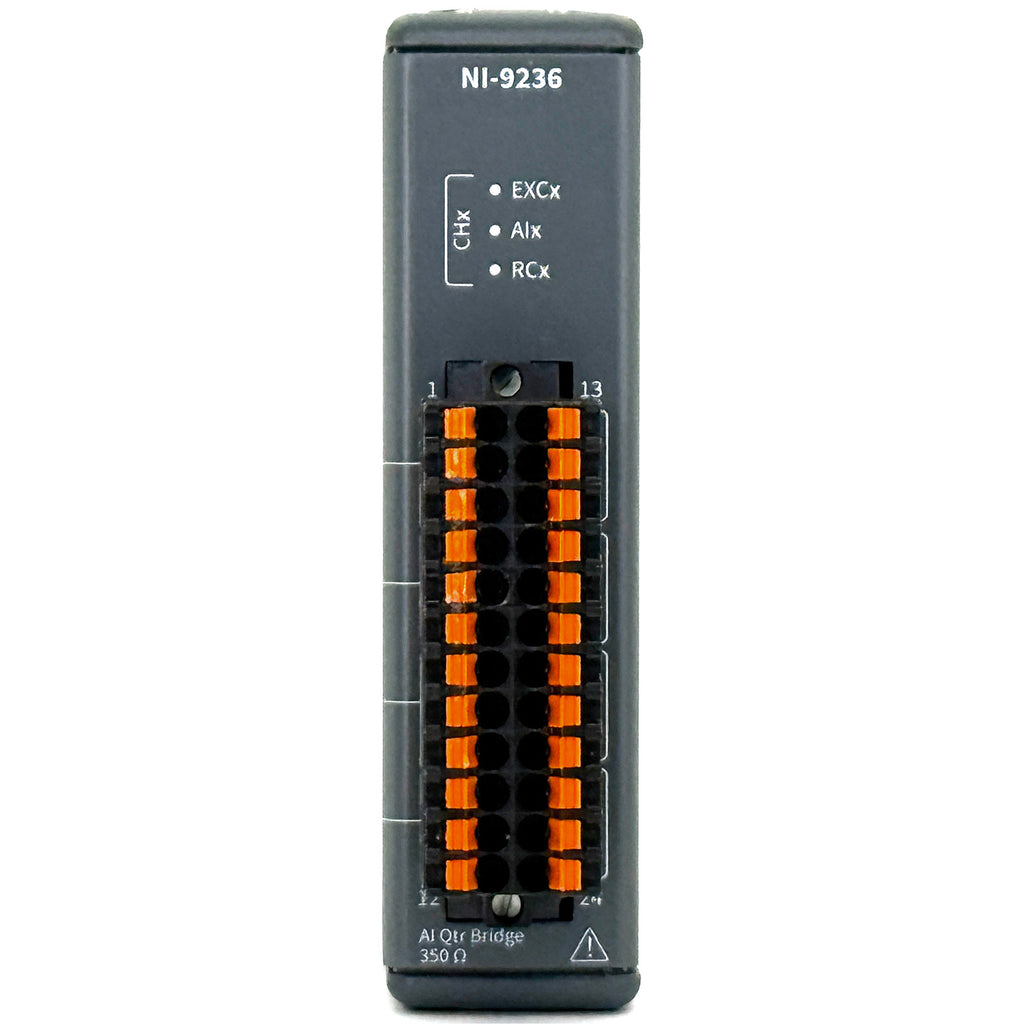

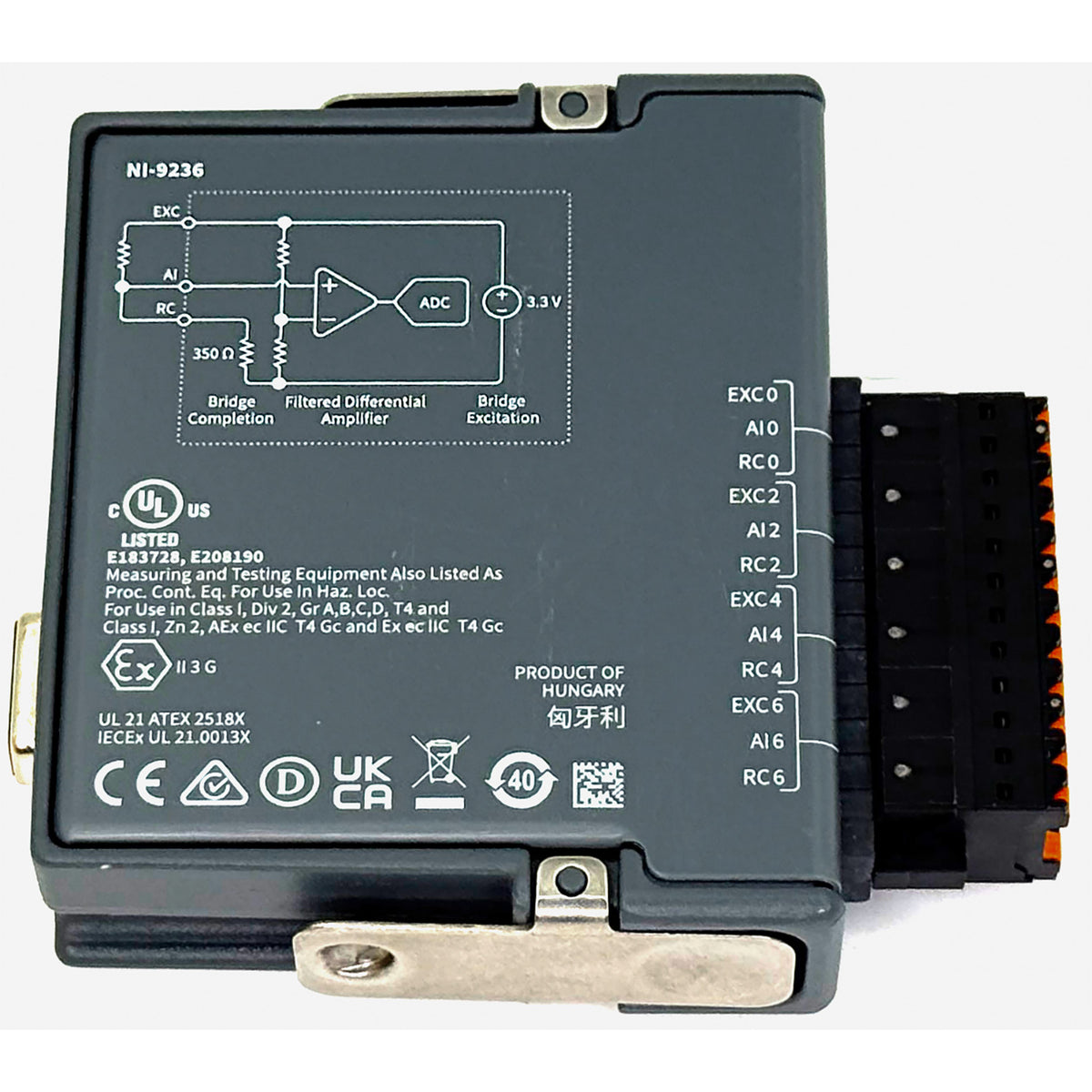

National Instruments NI-9236 8-Channel C Series Strain/Bridge Input Module

National Instruments NI-9236 8-Channel C Series Strain/Bridge Input Module

The NI-9236 measures dynamic strain on all channels simultaneously, allowing for synchronized, high-speed measurements. This capability matters for applications, such as impact tests, that require comparisons across many channels at a particular instant in time. The NI-9236 includes built-in voltage excitation for quarter-bridge sensors. It also provides 60 VDC isolation and 1,000 V rms transient isolation, offering high common-mode noise rejection and increased safety.

Features:

• Number of Analog Input Channels: 8

• Supported Sensor Type: Bridge/Strain Gauge
• Analog Input Voltage Range: -29.4 mV/V to 29.4 mV/V
• Bridge Resistance: 350 Ohm
• Maximum Sample Rate: 10 kS/s/ch
• Analog Input Isolation: 60 VDC Ch-Earth Ground Isolation

• Front Connection Type: Spring Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
