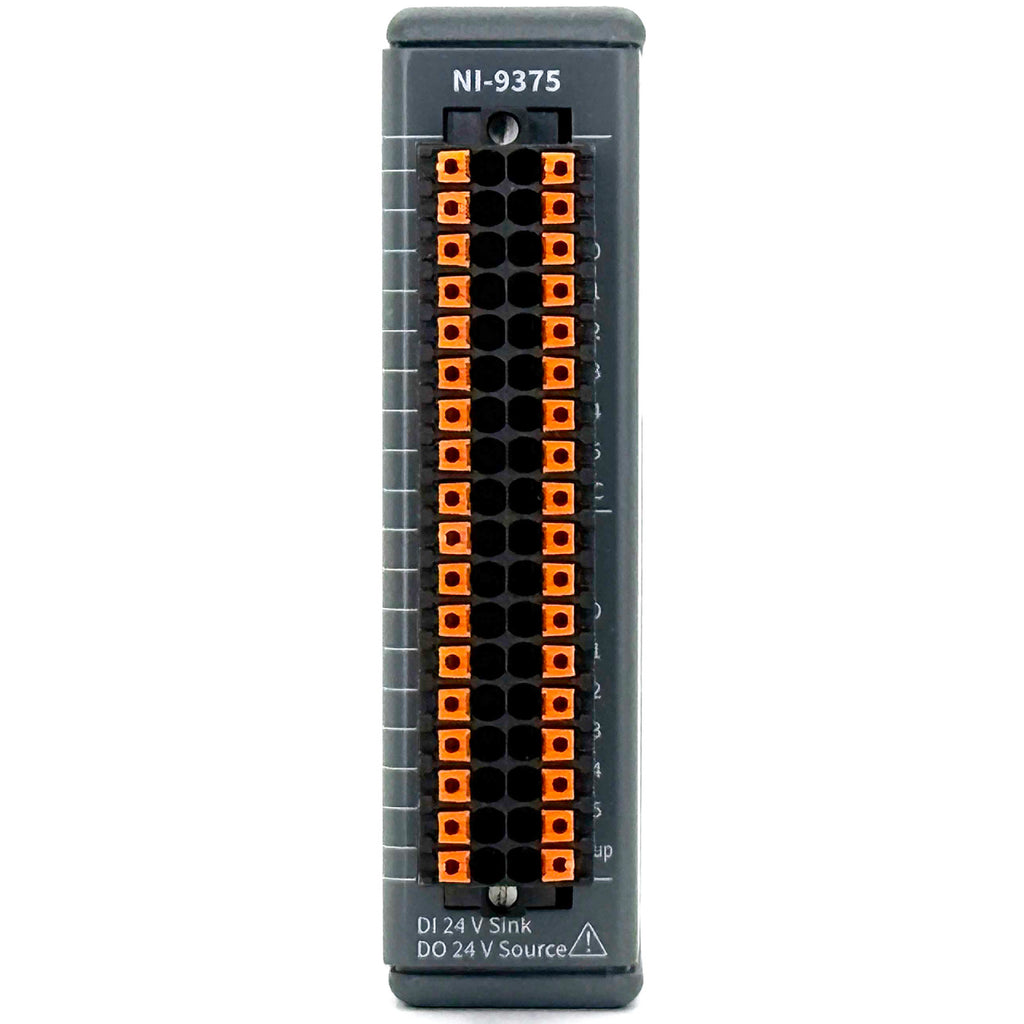

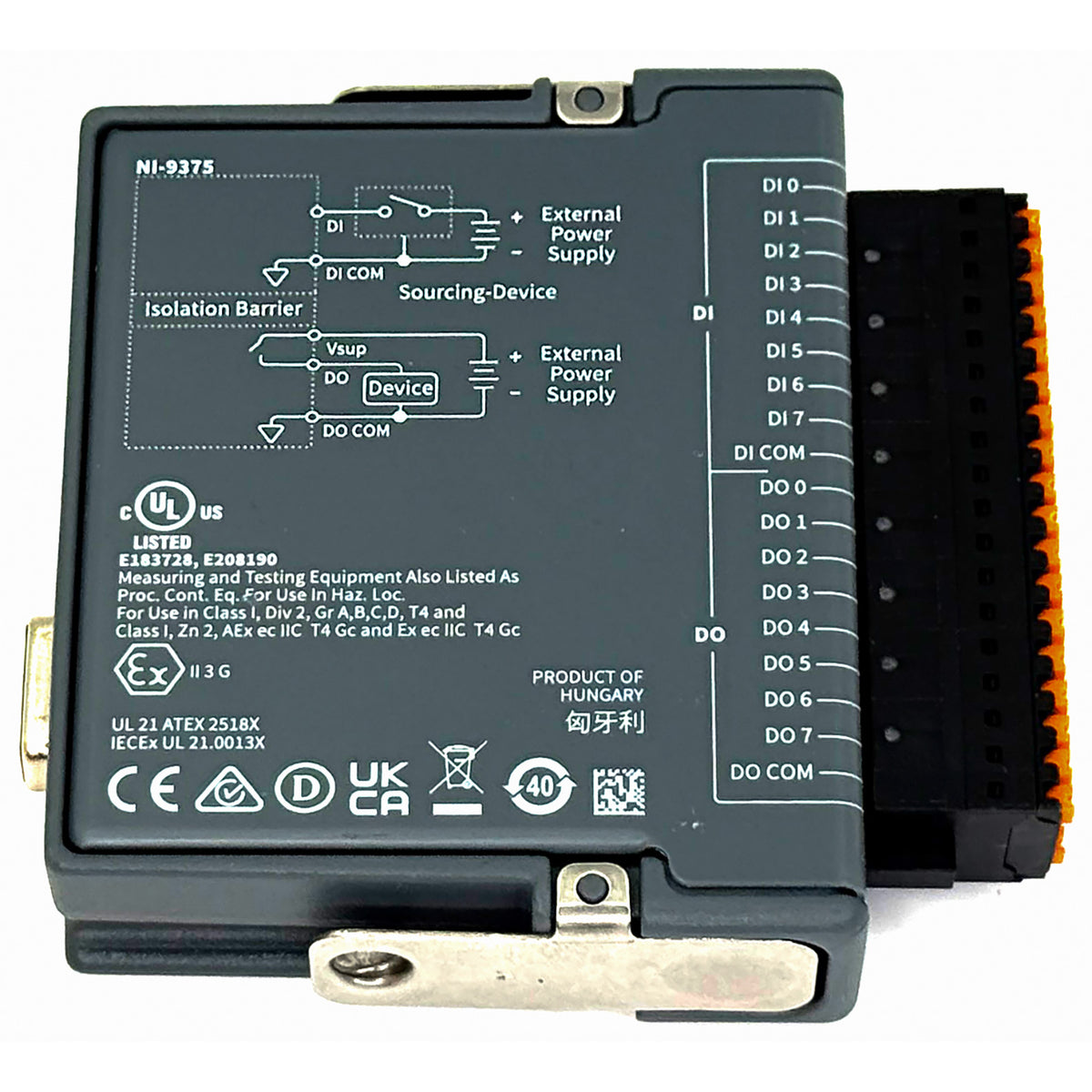

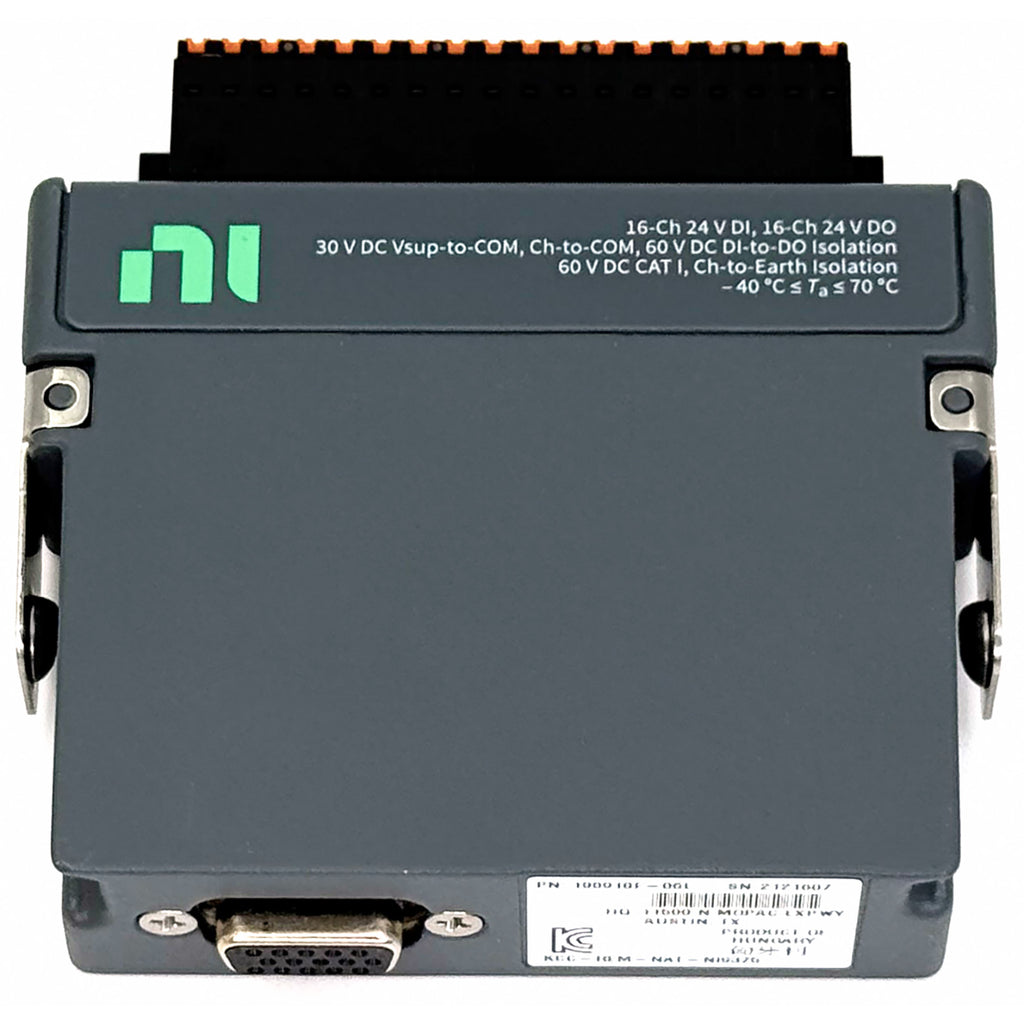

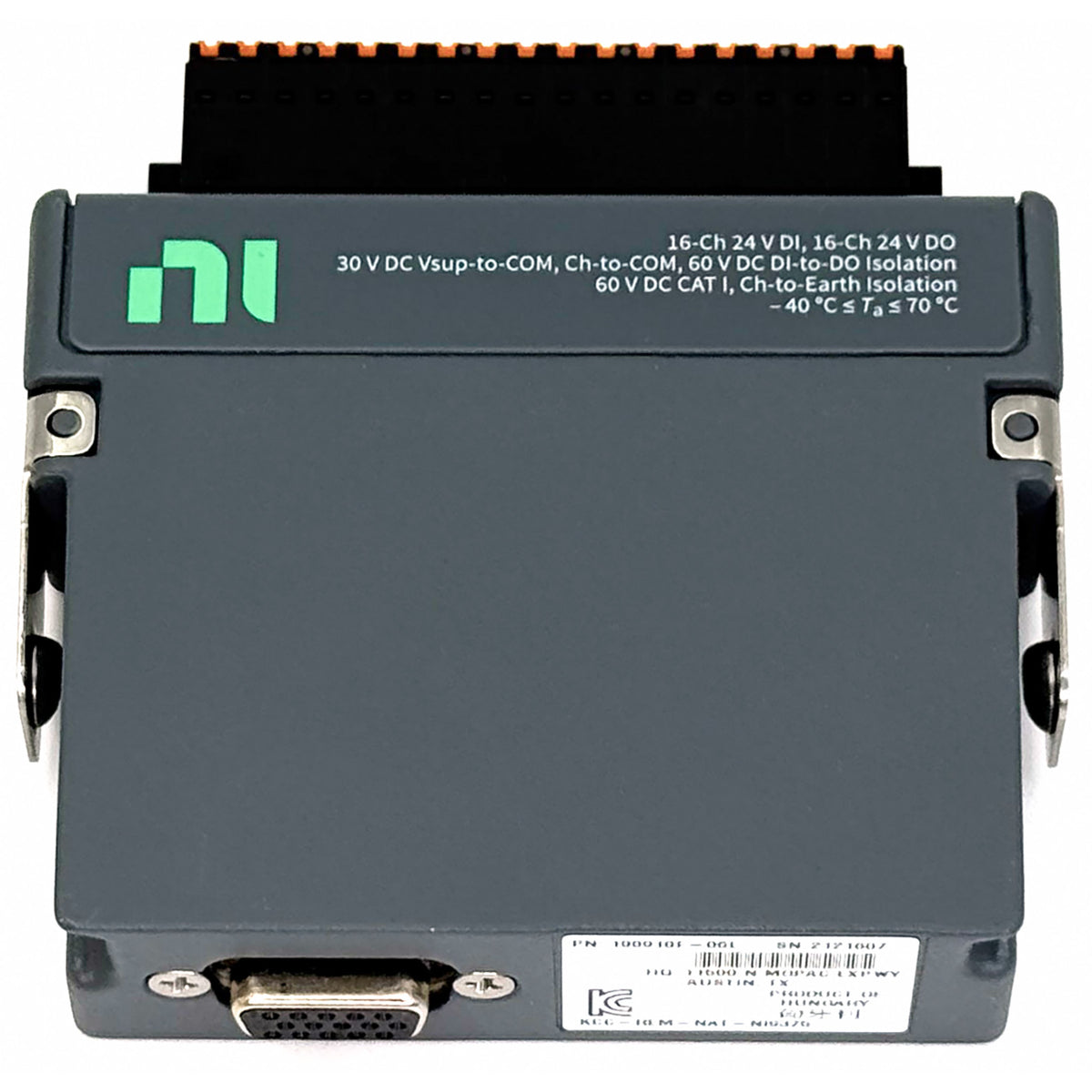

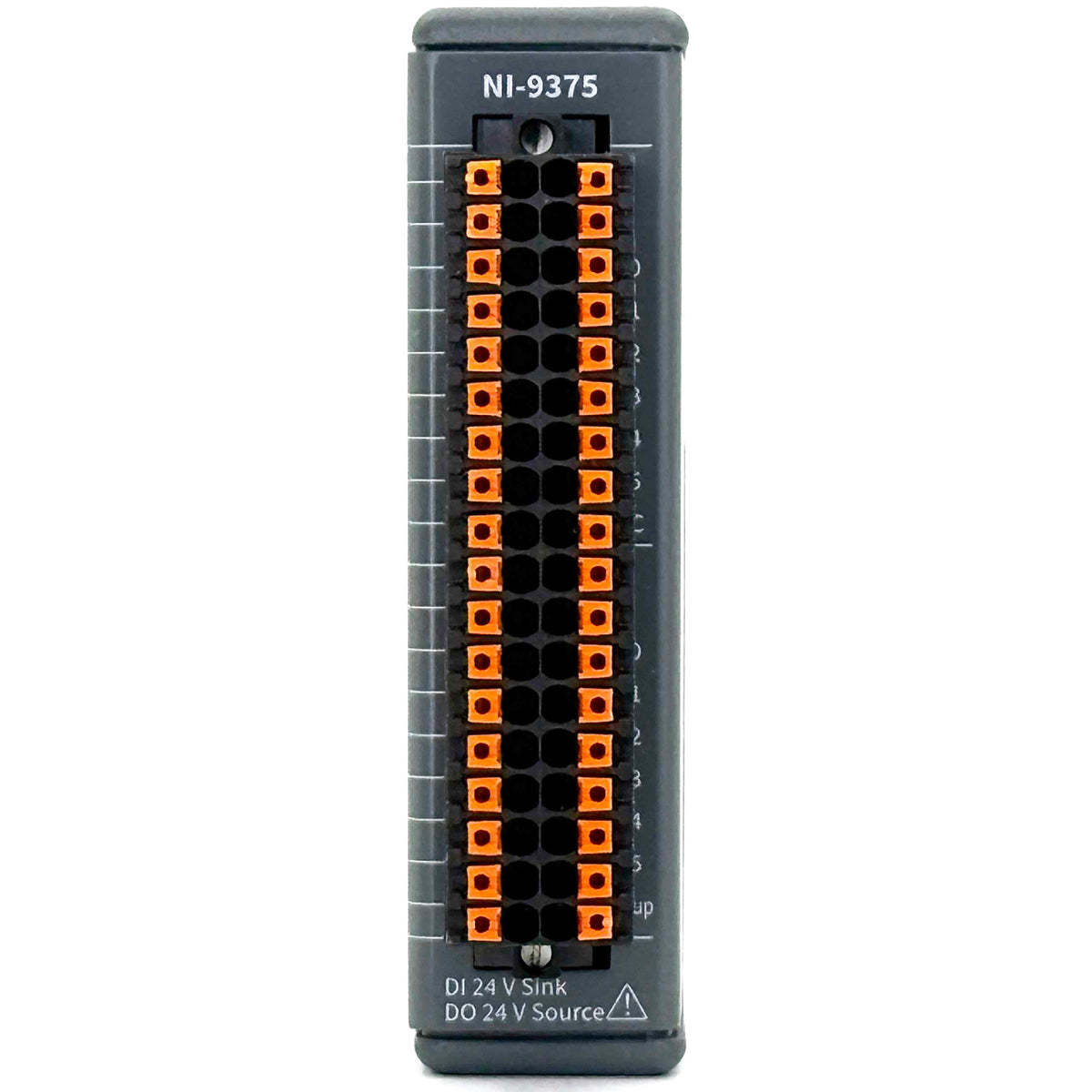

National Instruments NI-9375 32-Channel (Sinking Input, Sourcing Output) C Series Digital Module

National Instruments NI-9375 32-Channel (Sinking Input, Sourcing Output) C Series Digital Module

The NI-9375 is a digital I/O interface that supports industrial logic levels and signals for direct connection to a wide range of industrial switches, transducers, and other devices. Each digital input line supports 24 V logic levels, and all output lines support 6 V to 30 V signals, depending on the external power supply. The NI-9375 isolates the input and output banks from channel-to-earth ground.

Features:

• Number of Digital Input Only Channels: 16

• Number of Digital Output Only Channels: 16
• Current Flow Direction: Sinking Input / Sourcing Output
• Digital I/O Logic Levels: 12V / 24V
• Digital I/O Isolation: 60 VDC Ch-Earth Ground Isolation
• Maximum Digital Update Rate: 500 µs

• Front Connection Type: Spring Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
