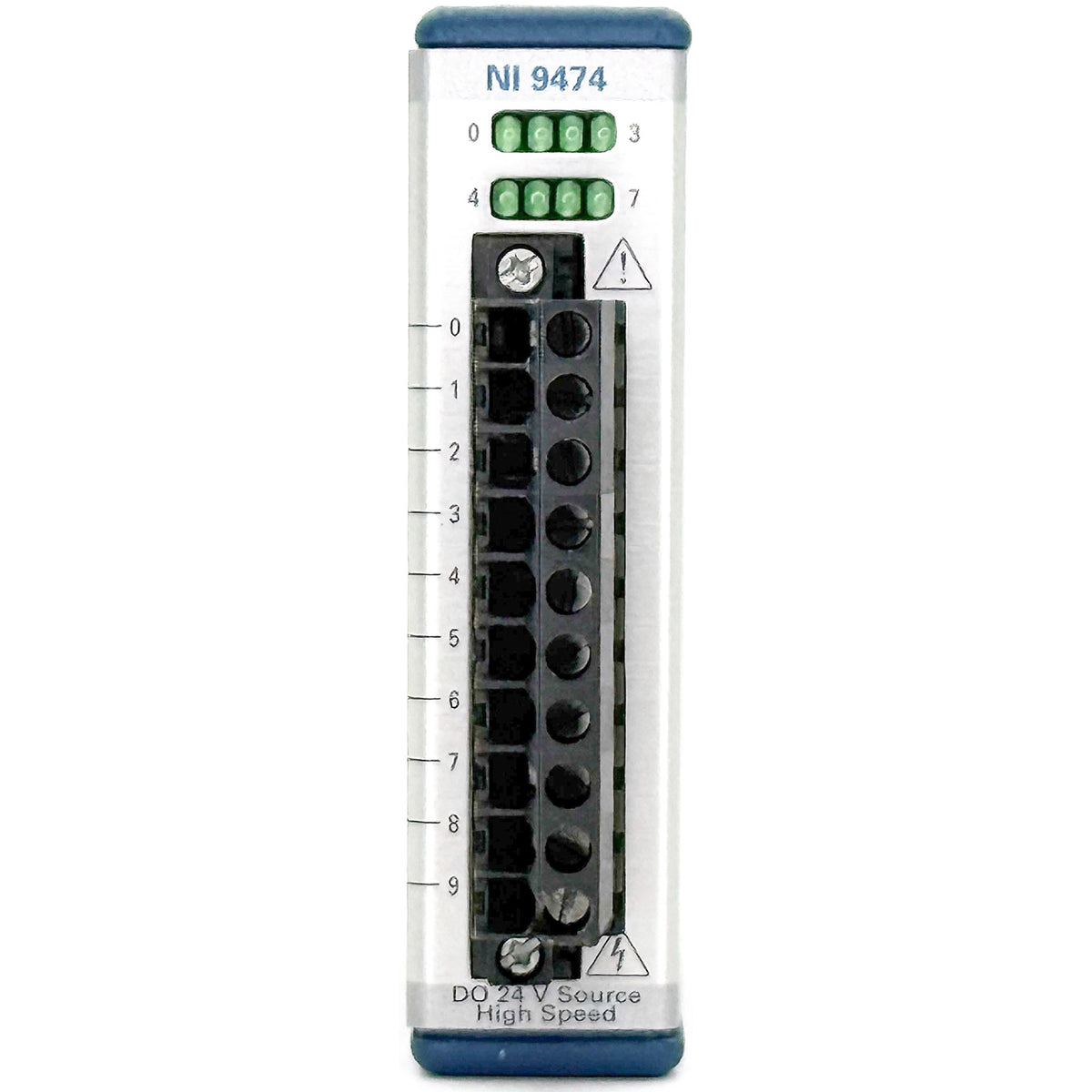

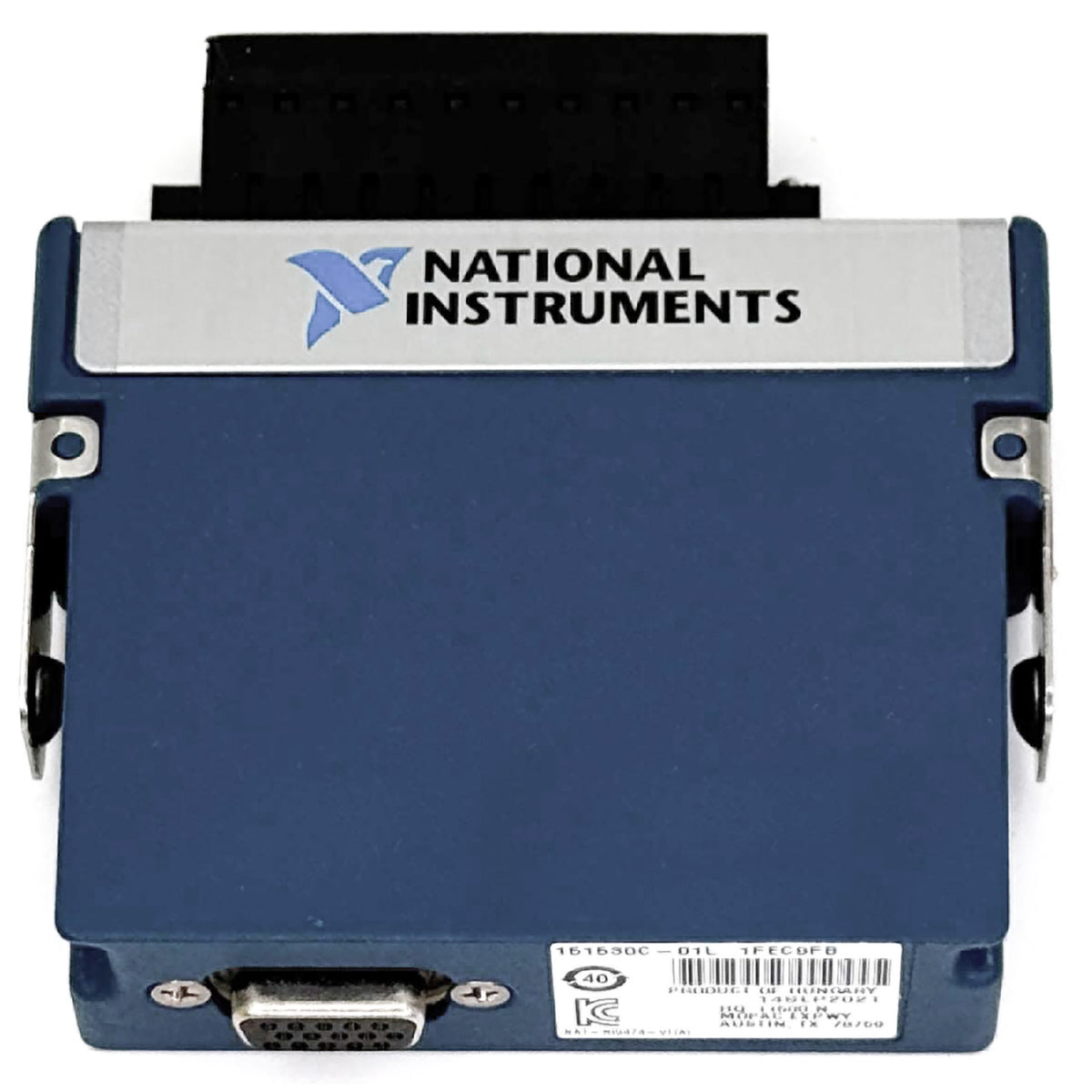

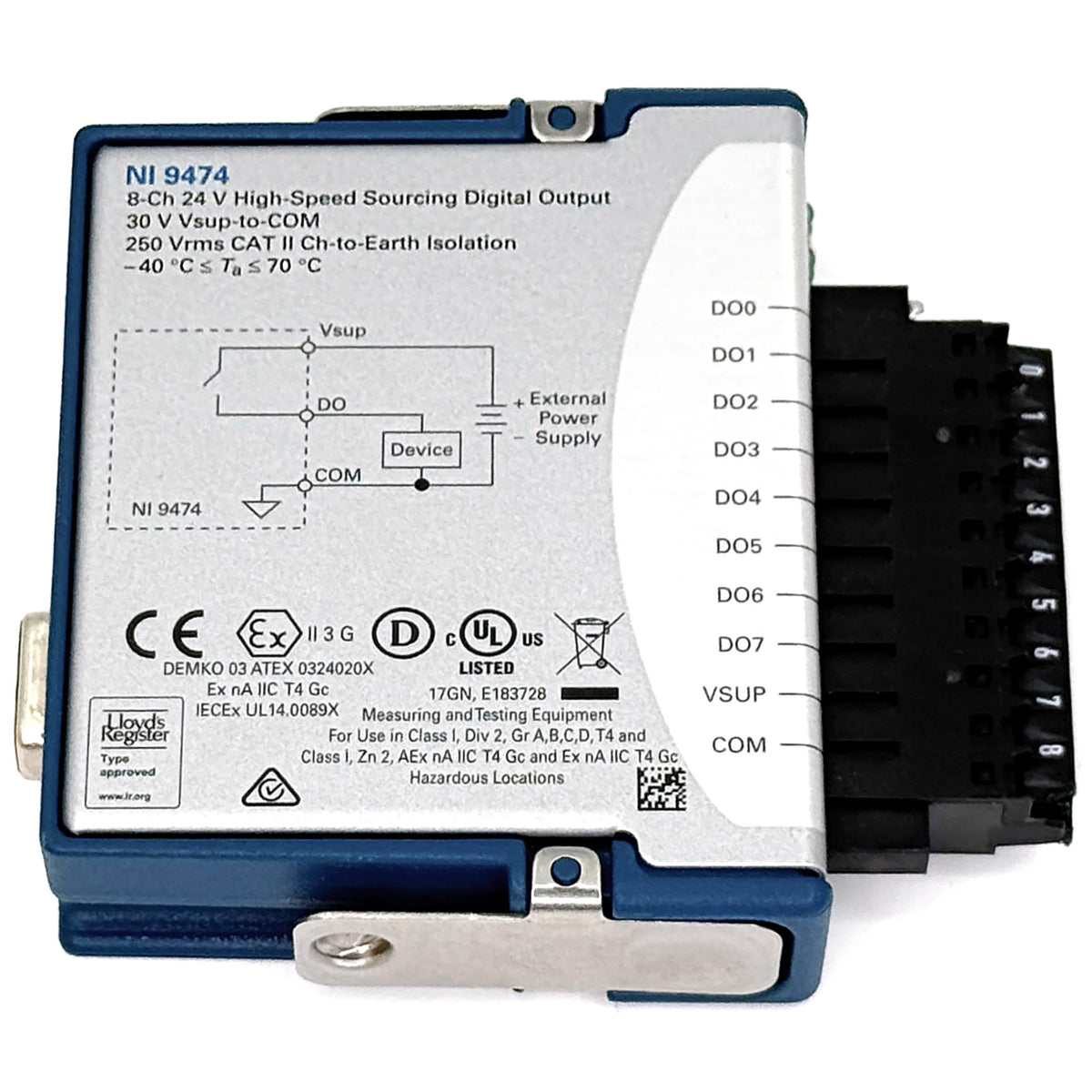

National Instruments NI-9474 8-Channel (Sourcing Output) C Series Digital Module

National Instruments NI-9474 8-Channel (Sourcing Output) C Series Digital Module

The NI-9474 works with industrial logic levels and signals, allowing direct connection to a wide array of industrial switches, transducers, and devices. Each channel supports signals from 5 V to 30 V, includes transient overvoltage protection between the output channels and earth ground, and has an LED that indicates status. The NI-9474 is a correlated digital module, so it can perform correlated operations, triggering, and synchronization when installed in a CompactDAQ chassis.

Features:

• Number of Bidirectional Digital Channels: 8

• Current Flow Direction: Sourcing Output
• Digital I/O Logic Levels: 12V / 24V
• Digital I/O Isolation: 250 VDC Ch-Earth Ground Isolation
• Maximum Digital Update Rate: 1 µs

• Front Connection Type: Screw Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
