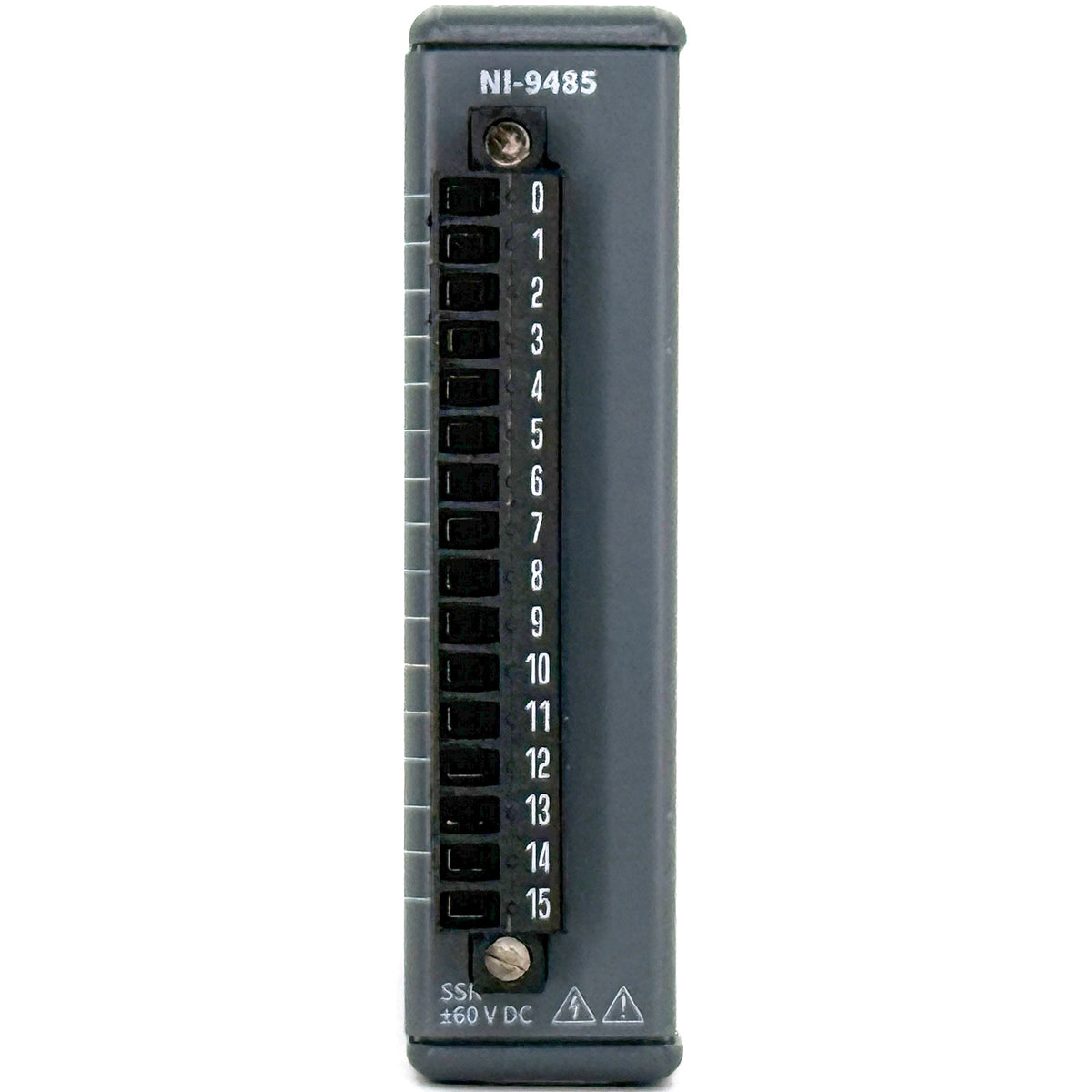

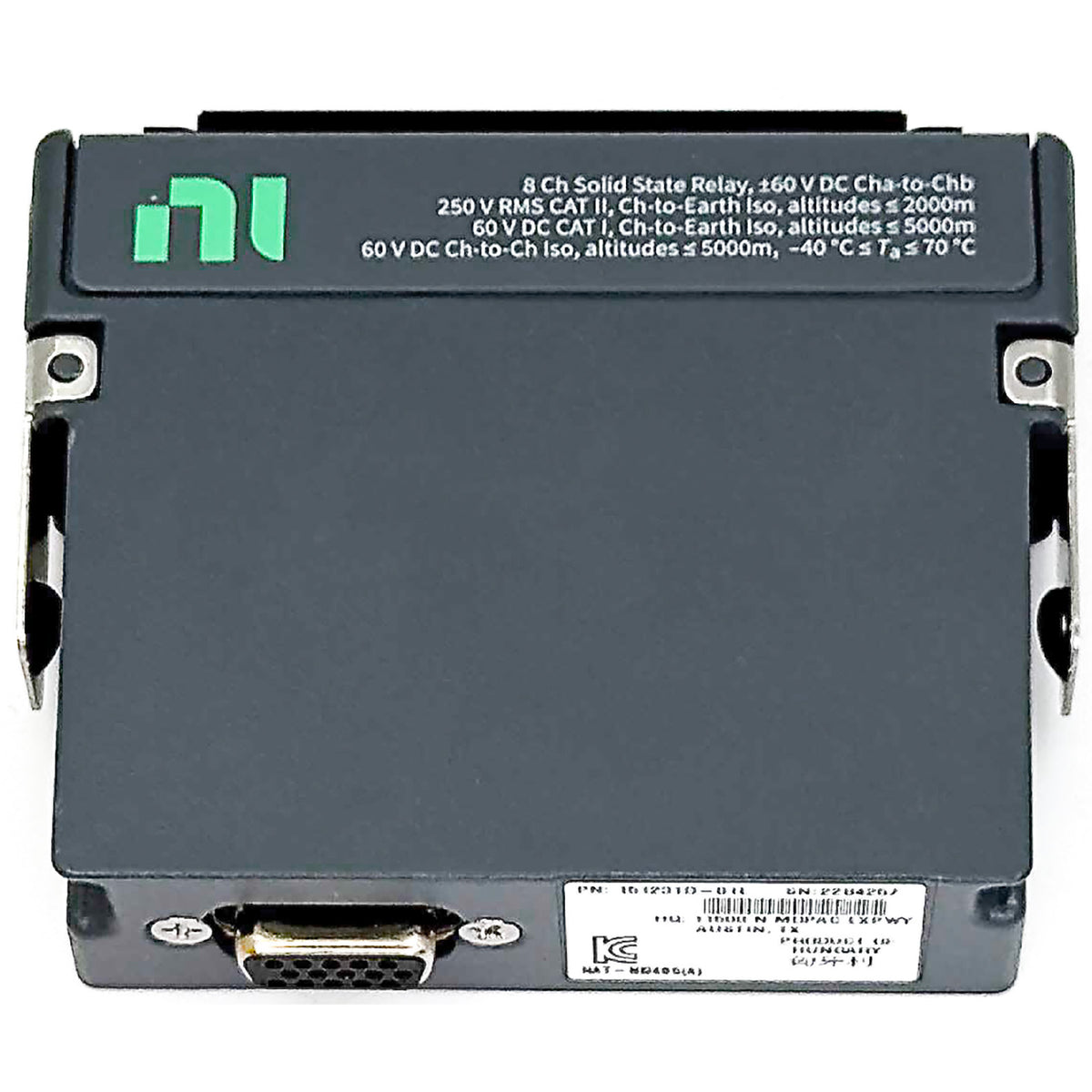

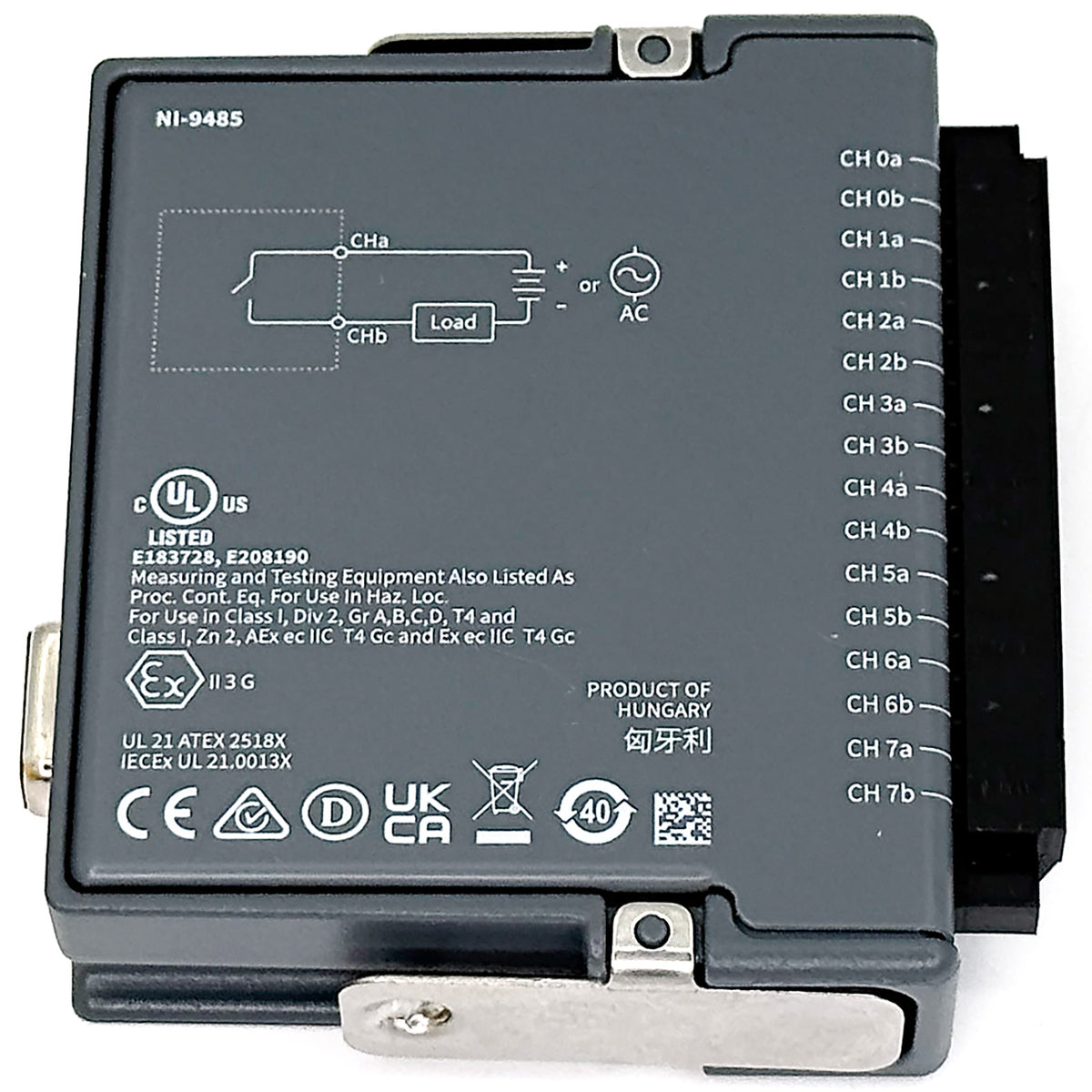

National Instruments NI-9485 8-Channel, SSR Relay, C Series Relay Output Module

National Instruments NI-9485 8-Channel, SSR Relay, C Series Relay Output Module

The NI-9485 allows for direct connection to a wide array of industrial devices such as motors, actuators, and DC devices. Each channel provides access to a solid state relay (SSR) for switching voltages up to 60 VDC/30 Vrms with switching current up to 750 mA per channel or up to 1.2 A on four channels. Each channel also features channel-to-channel isolation.

Features:

• Number of Digital Output Only Channels: 8

• Relay Type: Solid State, FET
• Maximum Switching Voltage DC: 60 V
• Maximum Switching Voltage AC: 30 V
• Digital I/O Isolation: 60 VDC Ch-Ch Isolation
• Maximum Digital Update Rate: 1s

• Maximum Clock Rate: 1 Hz
• Front Connection Type: Spring Terminals
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
