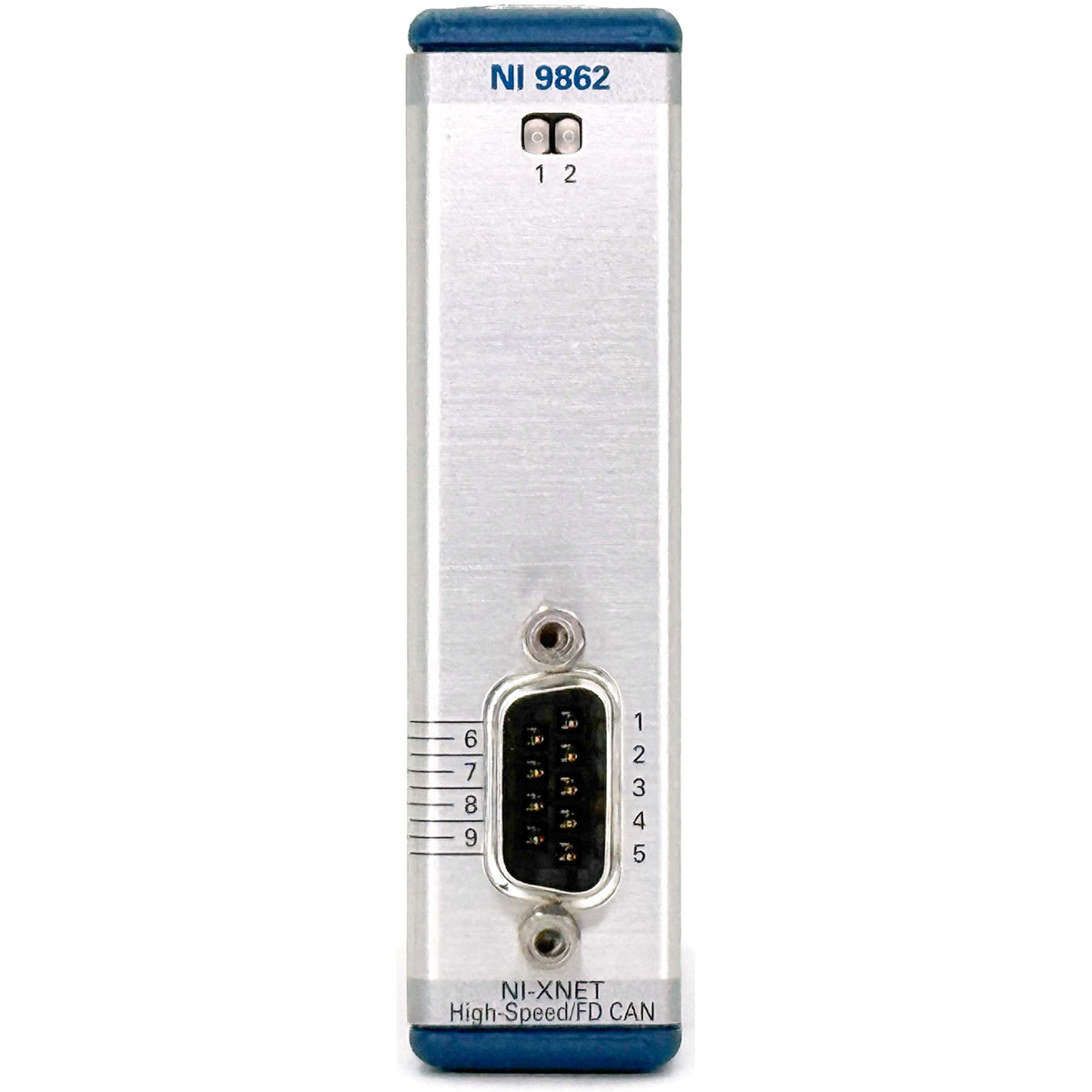

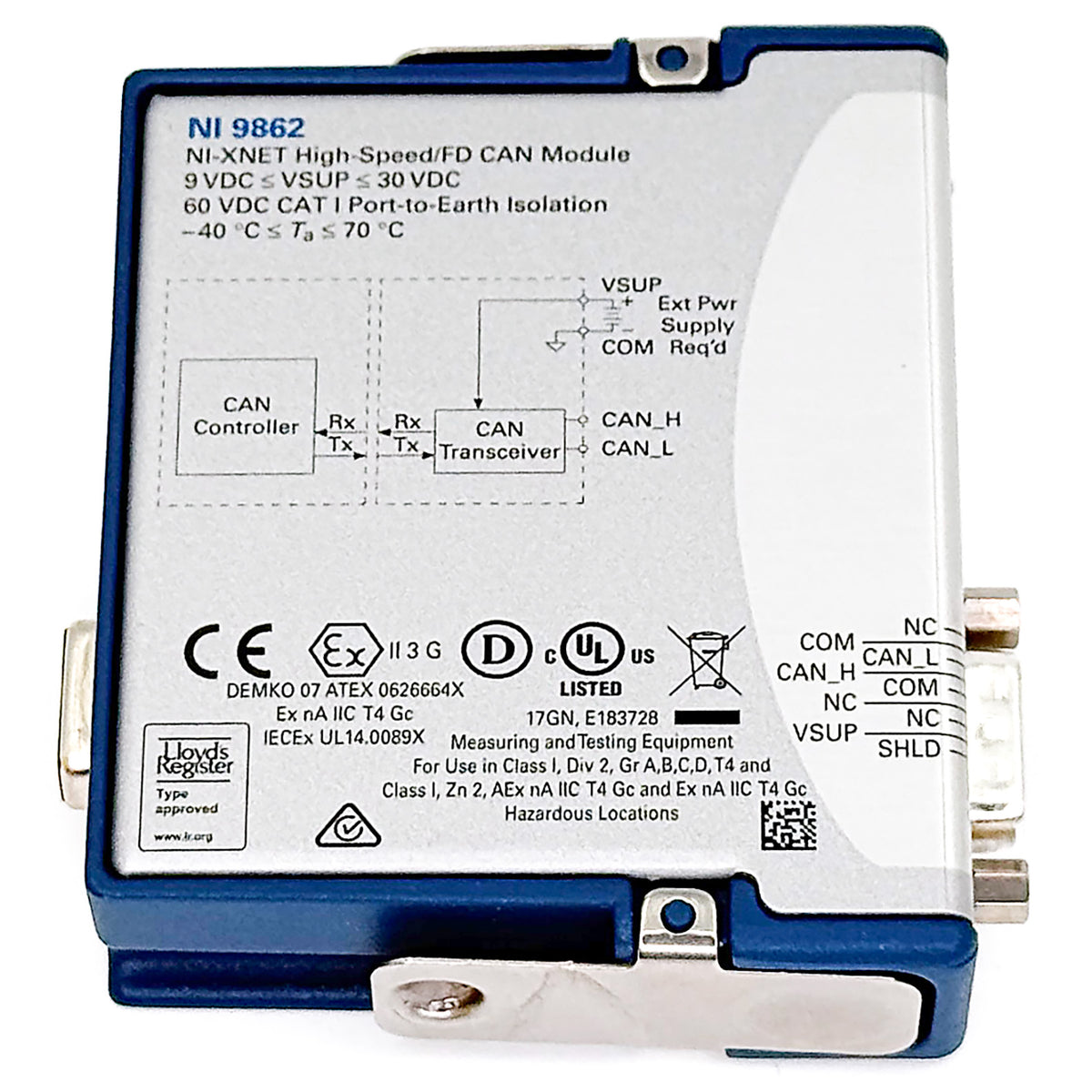

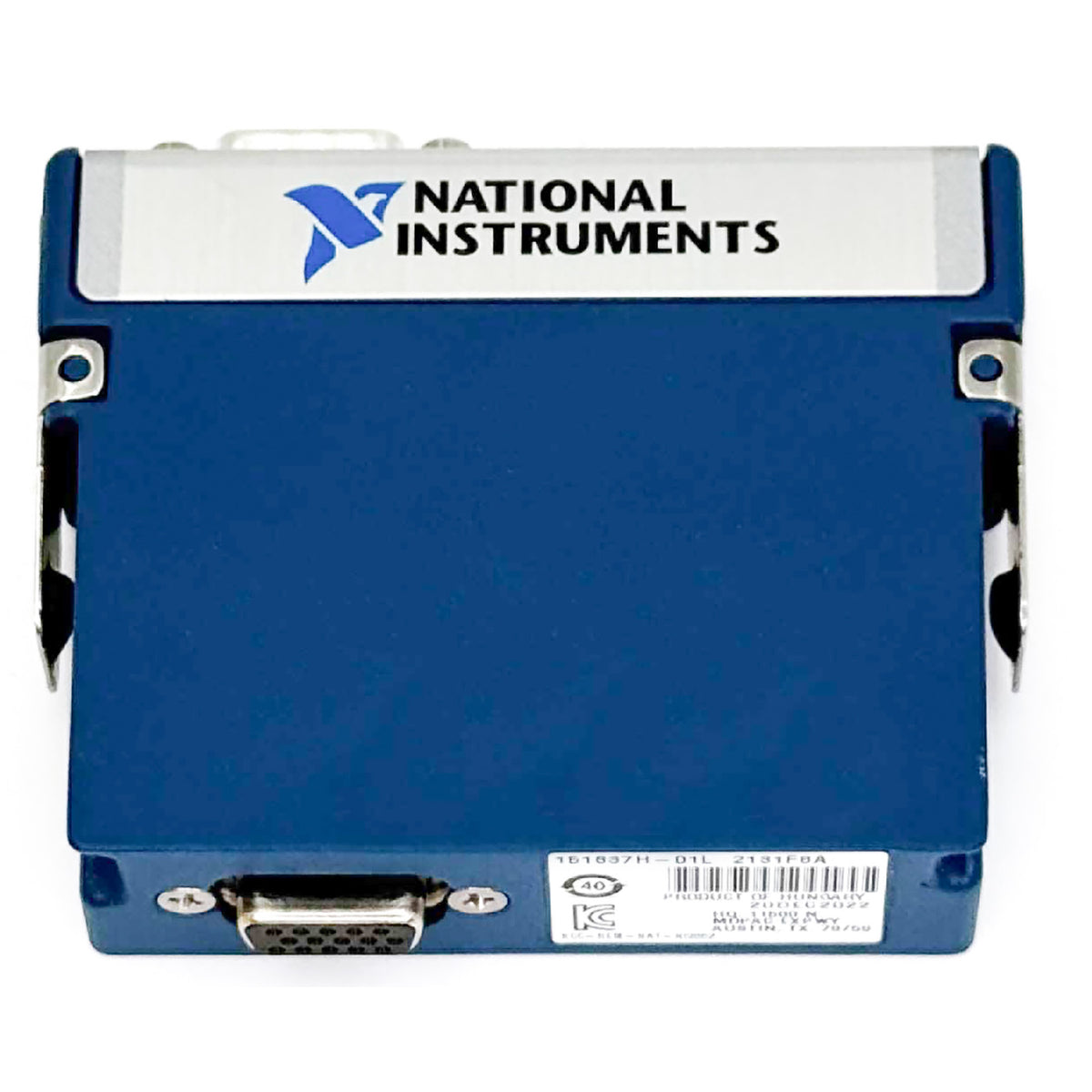

National Instruments NI-9862 1-Port Flexible Data Rate C Series CAN Interface Module

National Instruments NI-9862 1-Port Flexible Data Rate C Series CAN Interface Module

The NI-9862 is a high-speed Controller Area Network (CAN) Flexible Data-Rate (FD) interface for developing applications with the NI-XNET driver. The NI-9862 excels in applications requiring real-time, high-speed manipulation of hundreds of CAN frames and signals, such as hardware-in-the-loop simulation, rapid control prototyping, bus monitoring, automation control, and more. You can do this while taking other data acquisition measurements on the same NI CompactDAQ hardware platform or while performing low-level FPGA control and embedded monitoring in the same NI CompactRIO chassis.

Features:

• Number of CAN Ports: 1

• CAN Physical Layer: Flexible Data-Rate / High-Speed
• Maximum Baud Rate: 1 MB/s
• Supported Hardware Platform: C Series

• Bus Connection: C Series
• Conformal Coated: No

Please see the Datasheet for complete details and specifications.
