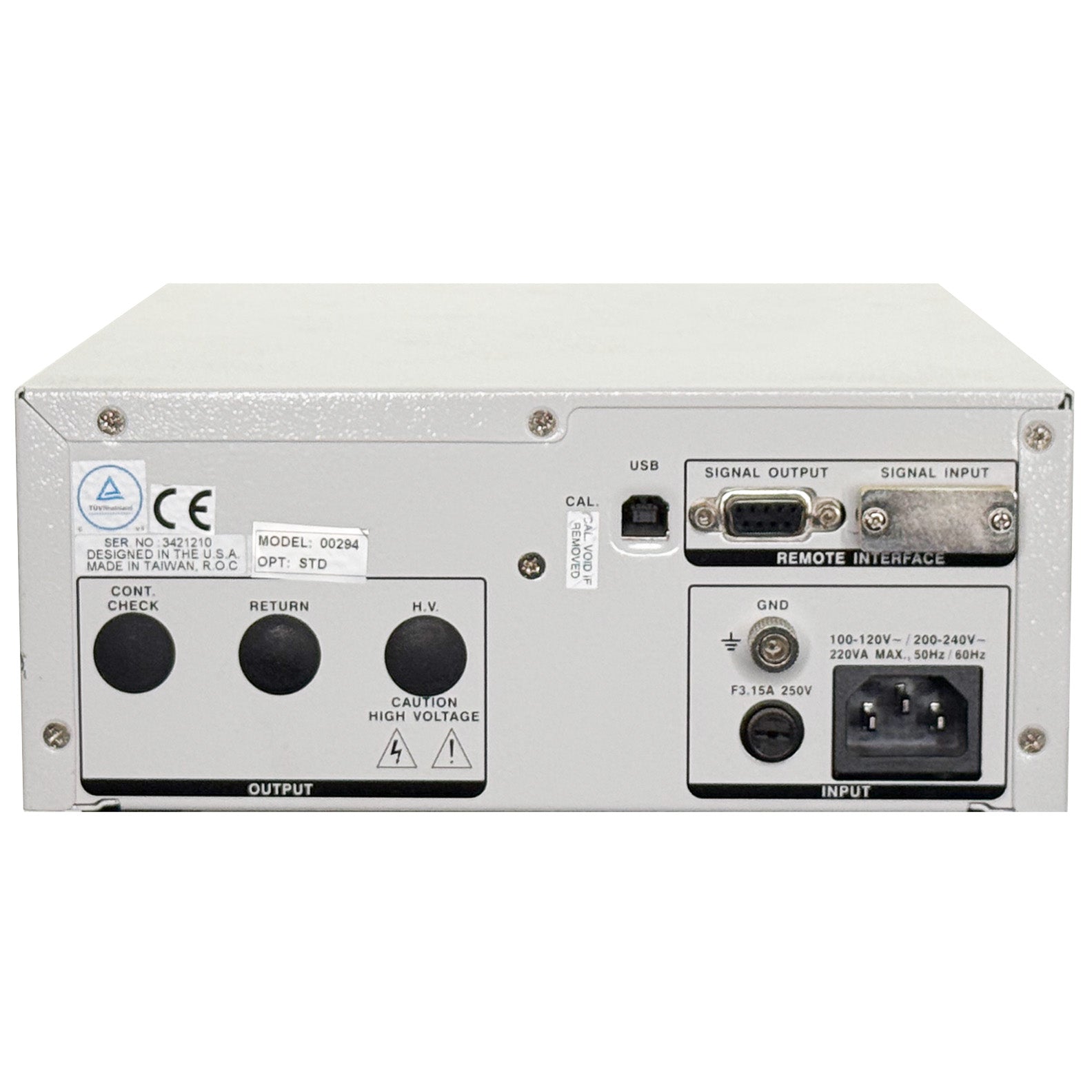

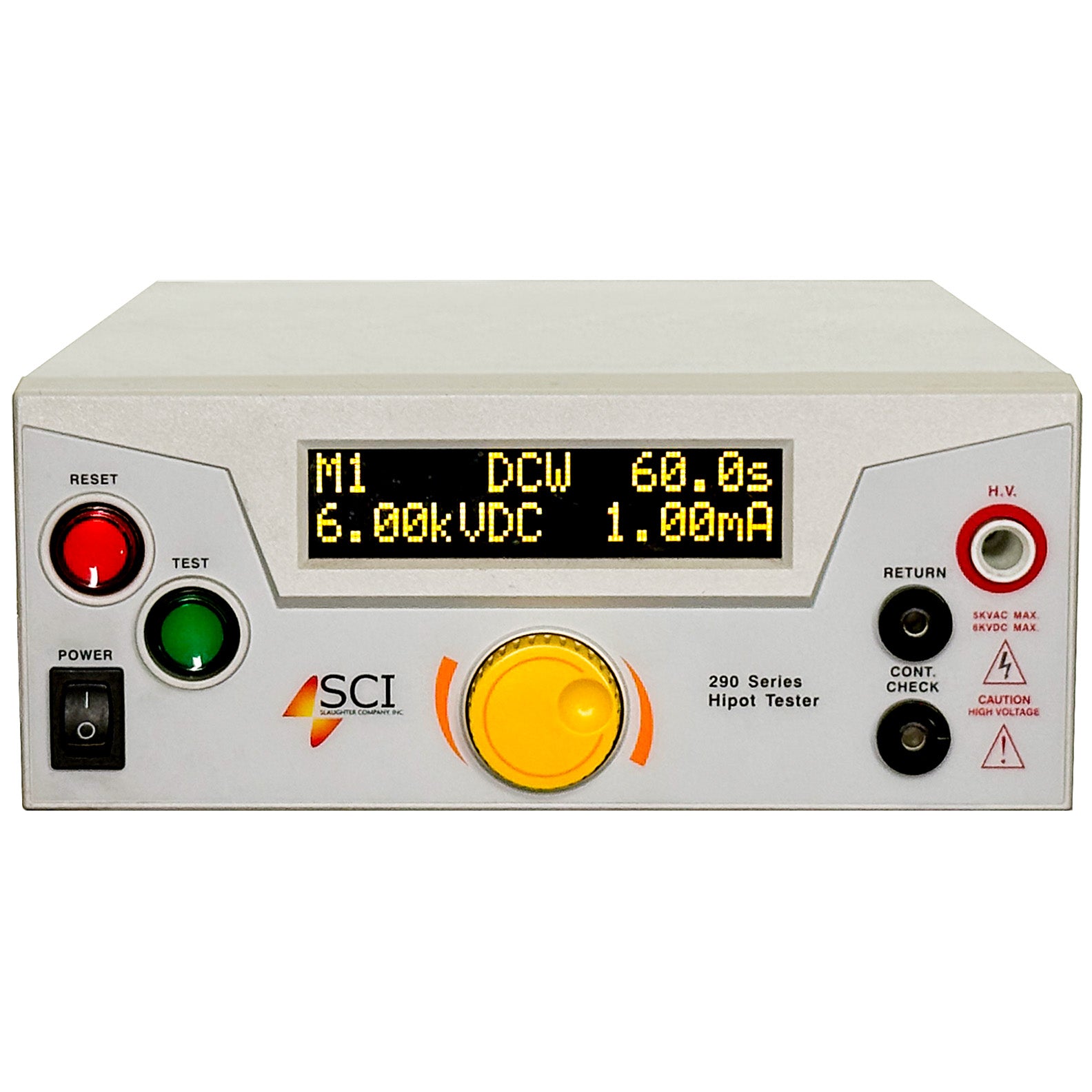

SCI Ikonix 294 DC Hipot Tester 6 kVdc, 5 mA

SCI Ikonix 294 DC Hipot Tester 6 kVdc, 5 mA

The SCI 294 is a simple-to-use DC Hipot Tester with built-in Ground Continuity (Low Current Continuity) testing. The 294 DC Hipot Tester includes all the features you need to get the job done and move on. Make testing simple with common-sense security settings. PLC Remote helps make DC Hipot Testing safer with Personal Protective Equipment (PPE).

Features:

• DC hipot tester, Ground Continuity

• DC 0 to 6.00 kVDC, 5.00 mA
• Voltage Range: 0.00 to 6.00 kV DC
• Voltage Resolution: 0.01 kV
• Current Range: 0.02 to 5.00 mA DC
• Current Resolution: 0.01 mA
• 100 to 120 VAC / 200 to 240 VAC ± 10% Auto Range; 50/60 Hz ±5% operation
• Supplied with High Voltage and ground leads
• Dimensions: (W x H x D): 8.5" x 3.5" x 11.9" (215 x 88.1 x 300 mm)
• Weight: 12 lbs (5.46 Kg)

Please see the Datasheet for complete details and specifications.
