Description

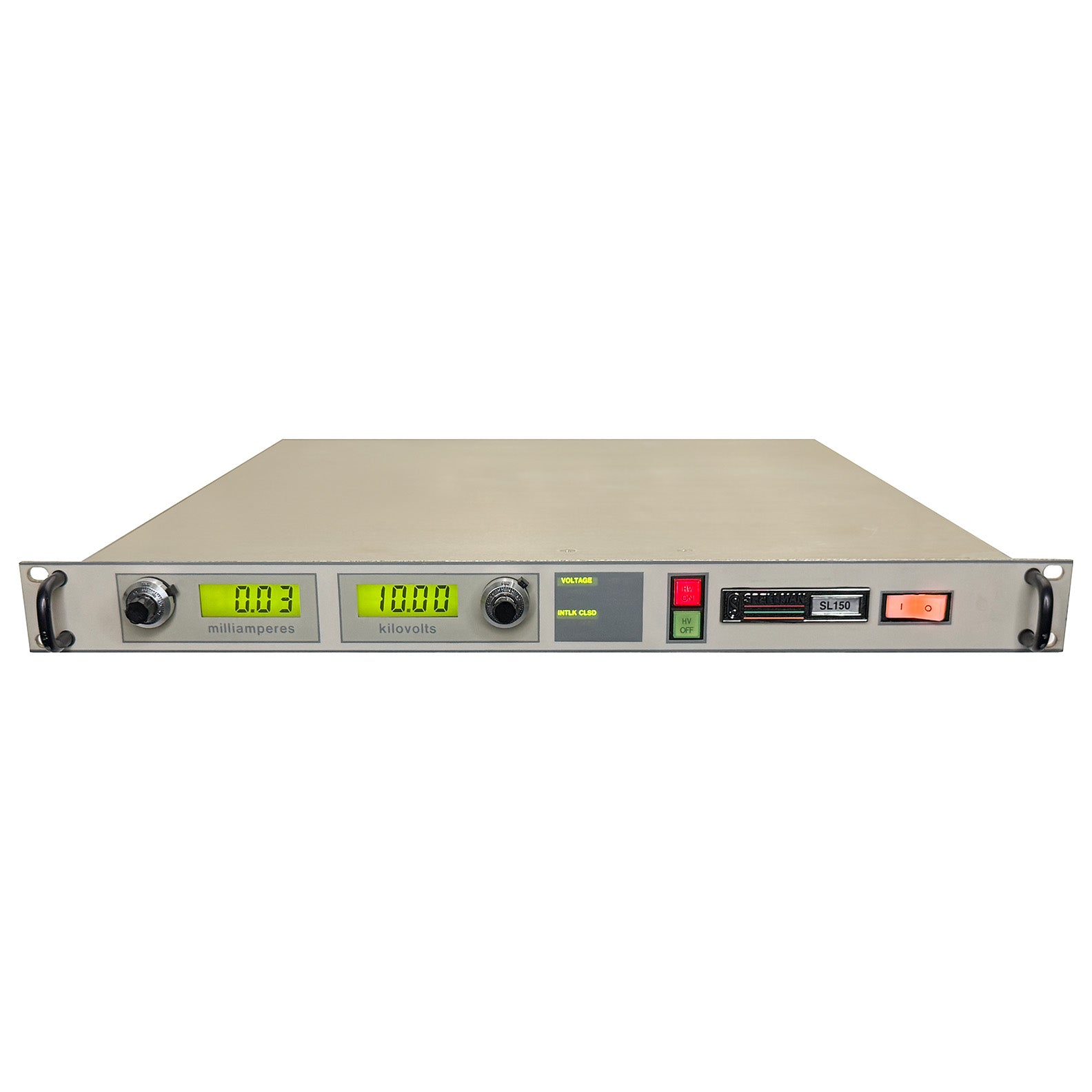

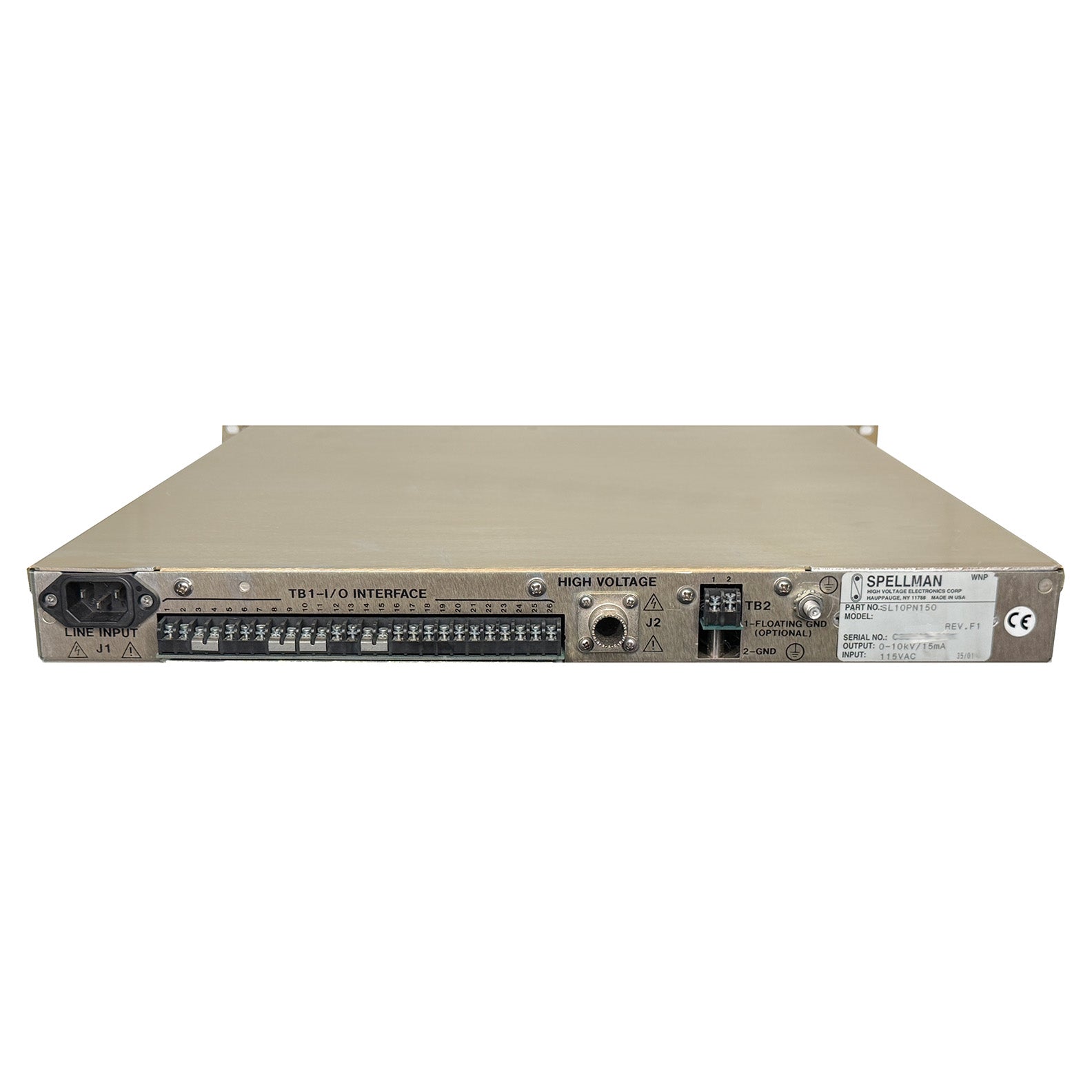

Spellman SL10PN150 High Voltage DC Power Supply, 0 to ±10 kV, 15 mA, 150 W
The SL10PN150 is a high-voltage DC Power Supply designed to meet uncompromising performance standards in minimal space. The circuitry includes a resonant high-frequency inverter with proprietary control, which provides fault-free operation in extreme transient and arcing environments with greater than 85% efficiency.
Features:
- Voltage: 0 to ±10 kVdc
- Current: 0 to 15 mA
- 150 Watts
- Voltage Regulation: Load: 0.005% of maximum voltage +500mV for full load change, Line: ±0.005% of full voltage +500mV over specified input range
- Current Regulation: Load: 0.01% of maximum current ±100 µA for full voltage change, Line: ±0.005% of maximum current for a ±10% input line change
- Ripple: 0.1% p-p +1 Vrms
- 115 Vac ±10%; 50/60 Hz operation
- Weight: 17 lb; Size: 1.75 in H x 19 in W x 19 in D
Please see Datasheet for complete details and specifications.
Datasheets / Specifications
SL10PN150Payment & Security
